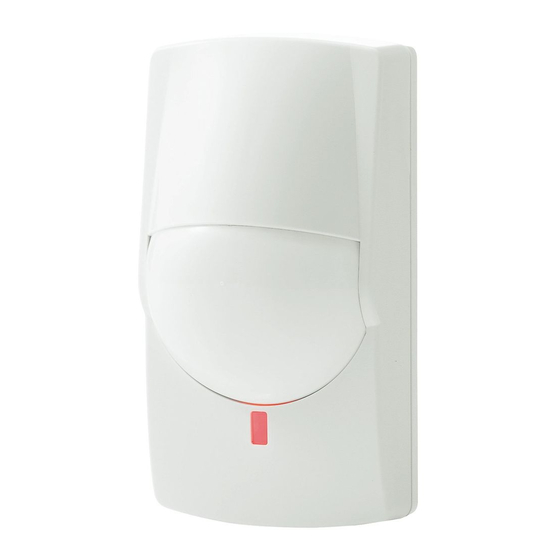

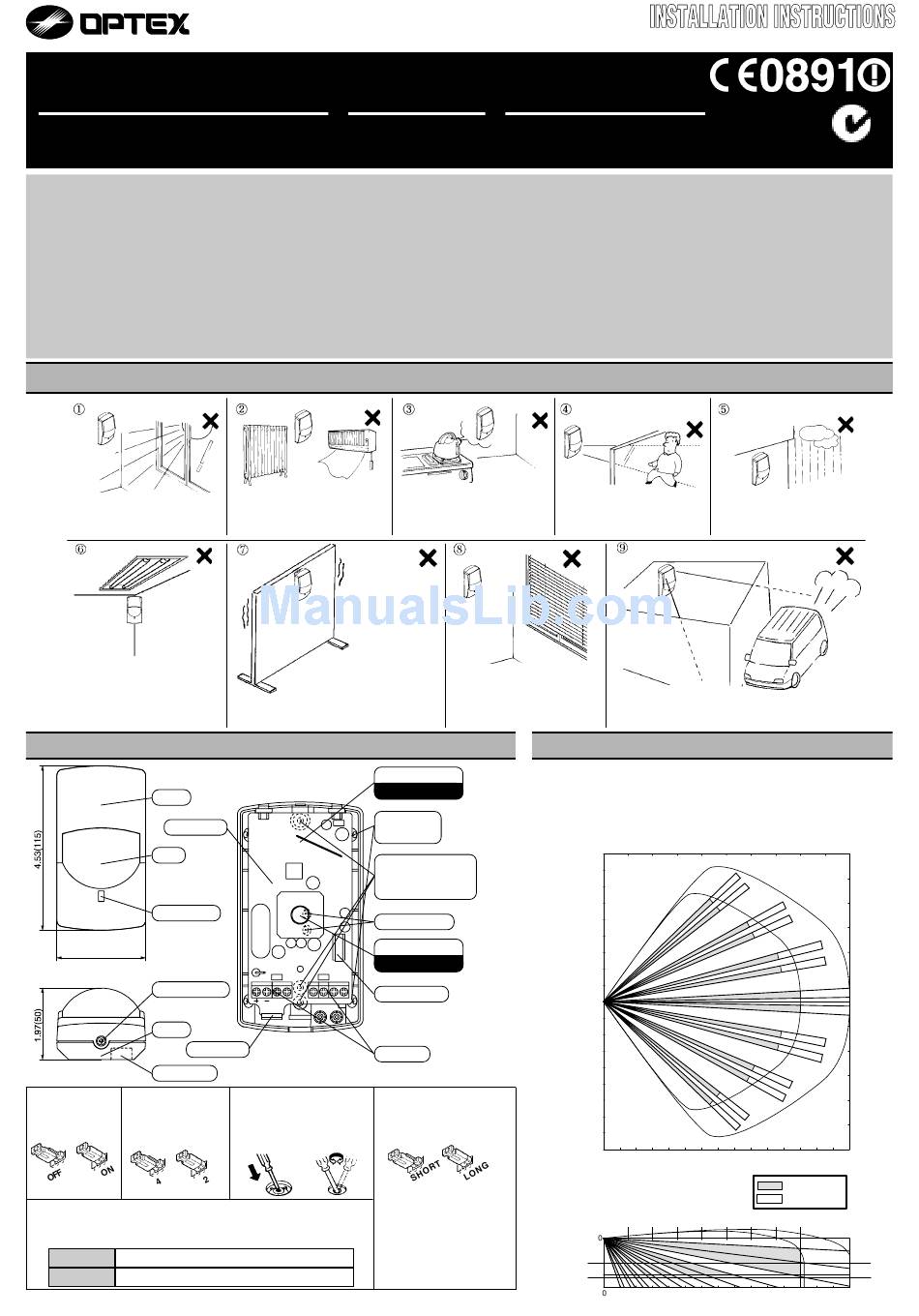

Optex MX-40QZ Installation Instructions And Owner's Manual

PASSIVE INFRARED and MICROWAVE
COMBINATION DETECTOR
MX-40QZ MX-50QZ
n
FEATURES
•40ft.×40ft.(12m×12m)Wide Angle [MX-40 Series]
•50ft.×50ft.(15m×15m)Wide Angle [MX-50 Series]
•QUAD Zone Logic
•Patented Multi-focus Lens
•Improved Sealed Optics
•Temperature Compensation Logic
•Pet Immunity [MX-40PI/PT Only]
(See Section 5 for Pet Immunity)
1. INSTALLATION HINTS
Avoid direct sunlight.
Do not install unit near
fluorescent lights.
2. DESCRIPTION,OPERATION and DIMENSIONS
Cover
P.C.B. unit
Lens
LED Indicator
2.44(62)
Fastening screw
Base
P.C.B. hook
Wiring guide
n LED ON/OFF
n PULSE COUNT
Use the pin switch Use the pin switch
for LED ON/OFF . for Pulse Count
Selection ( 2 or 4 ).
n D.L. TERMINAL D.L. TERMINAL (MX-40QZ(BE),MX-50QZ(BE) Only) D.L. TERMINAL D.L. TERMINAL D.L. TERMINAL
LED can be enabled or disabled remotely from control panel by D.L. terminal.
Place jumper pin switch in OFF position.
LED Enabled Connect D.L. terminal to common ground(with detector).
LED Disabled No ground to D.L. terminal (open circuit).
With PET IMMUNITY
MX-40PI
n
EASY INSTALLATION
•Easy Wiring Knockout
•Wiring Guide
• · Spare Terminal [MX-40QZ/50QZ/40PT Only]
•Tamper Terminal [MX-40QZ/50QZ/40PT Only]
• · D.L. Terminal [MX-40QZ(BE)/50QZ(BE) Only]
•Wide Wiring Space
Avoid mounting detector where
movement of Fans or Air
Conditioning can be detected.
Do not mount in unstable location
where vibration or shock may
affect the detector.
Microwave Sensor
Do not touch Do not touch
Do not touch Do not touch! Do not touch
Corner mount
knockout
Mounting knockout
(Pitch=3.29"/83.5mm)
(Pitch=3.58"/91.0mm)
Wiring knockout
P.I.R. Sensor
Do not touch Do not touch Do not touch Do not touch Do not touch!
Tamper switch
ALARM DL SP TAMPER
Terminals
inch(mm)
n EASY WIRING KNOCKOUTS n MICRO O O O O WAVE RANGE
Select RANGE SELECTOR
Press firmly with a screwdriver to
according to the room size.
open.Enlarge the hole according
(SHORT or LONG)
to size of wire.
MX-40 Series
Select RANGE SELECTOR
"SHORT" when it's used with 24ft
(7 m)square and Smaller room.
MX-50 Series
Select RANGE SELECTOR
"SHORT" when it's used with 34ft
(10m)square and Smaller room.
With PET IMMUNITY&TAMPER
MX-40PT
Avoid vapor or high Avoid
humidity that can cause Curtain,Screen,etc.
condensation. blocking detection area.
Do not aim detection area
towards equipment which
continually moves in the
detection area (i.e.curtain,
blinds).
3. DETECTION AREA
WIDE ANGLE
n
TOP VIEW
n
SIDE VIEW
1.5m
2.4m
No.59-0967-0 0009-25
n
FUNCTION
•Selectable Pulse Count(2 or 4)
•LED ON/OFF
•Tamper Switch [MX-40QZ/50QZ/40PT Only]
•Microwave Range Selector(LONG or SHORT)
n
OPTION
•FA-3 Wall & Ceiling Mount Bracket
(Horizontally ±45°& Vertically 0°to-15°)
Do not install outdoors.
Do not aim towards outside areas where there is
frequent movement.
5 10 15 20 25 30
8m
S
4
2
0
2
4
S
8m
3 S 9
5 10 15 20 25 30
2.2m
3.0m
9
3 6
N219
35 40 45 50 ft
25 ft
20
15
10
5
0
5
10
15
20
25 ft
12 15m
MX-40 AREA
MX-50 AREA
35 40
45 50 ft
5 ft
7.5 ft
8 ft
10 ft
12 15m
