Section 2: General Information
Emissions
The United States Environmental Protection Agency (US
EPA) (and California Air Resources Board (CARB), for
engines/equipment certified to California standards) re-
quires this engine/equipment to comply with exhaust and
evaporative emissions standards. Locate the emissions
compliance decal on the engine to determine applicable
standards. See the included emissions warranty for emis-
sions warranty information. Follow the maintenance spec-
ifications in this manual to ensure the engine complies
with applicable emissions standards for the duration of
the product's life.
Emissions Data Plate
See Figure 2-1. A data plate is attached to the right side
engine foot to verify compliance with EPA emissions
regulations.

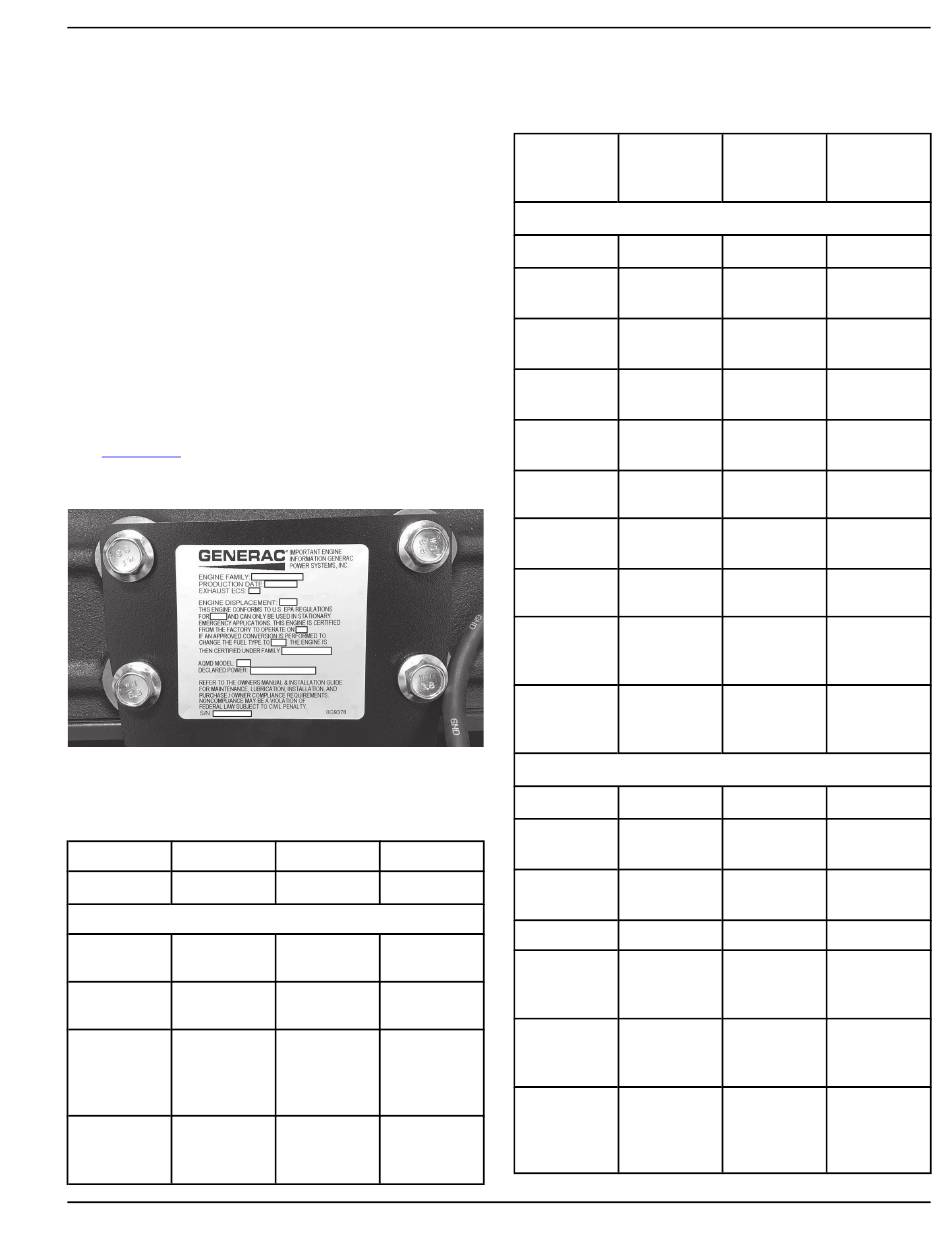

Figure 2-1.
Figure 2-1. Emissions Data Plate (Sample)
Specifications
Model 100 kW
Engine 9.0L
Generator Set
Rotor
Class H
insulation
Stator
Class H
insulation
110.6 x 39.5
Dimensions
x 69.3 (261 x
L x W x H —
100.3 x
in (cm)
176.1)
Product
2,848
weight — lbs
(1,292)
(kg)
Spark-Ignited Stationary Generators Owner's Manual
010173
130 kW 150 kW
9.0L 9.0L
Class H Class H
Class H Class H
132.7 x 40.5
143 x 50.4 x
x 63.1 (337.1
68.2 (363.3 x
x 102.8 x
128 x 173.1)
160.4)
3,009 3,278
(1,365) (1,487)
Shipping
3,024
weight — lbs
(1,371)
(kg)
Engine System
Type
V
Dry weight
2,064 (936)
— lbs (kg)
Bore — in
4.5 (114.3)
(mm)
Stroke — in 4.25
(mm) (107.95)
Displace-
8.86 L
ment (L)
Firing order 1-8-7-2-6-5-
4-3
Direction or CW from
rotation flywheel
Compression
9.9:1
ratio
Spark plug
gap — in 0.02 (0.51)
(mm)
Rated syn-
chronous 1,800
rpm
Cooling System
Water pump
Belt driven
Fan speed
2,330
(rpm)
Fan diameter
22 (55.9)
— in (cm)
Fan mode Pusher
Air Flow (ft 3 /
min) (m 3 / 6,589 (187)
min)
Coolant ca-
pacity — gal 5.5 (20.8)
(L)
Heat rejec-
tion to cool- 186,156
ant — Btu/h (54.56)
(kW)
General Information
3,184 3,567
(1,444) (1,618)
V V
2,672 2,672
(1,213) (1,213)
4.5 (114.3) 4.5 (114.3)
4.25 4.25
(107.95) (107.95)
8.86 L 8.86 L
1-8-7-2-6-5- 1-8-7-2-6-5-
4-3 4-3
CW from CW from
flywheel flywheel
9.9:1 9.9:1
0.02 (0.51) 0.02 (0.51)
1,800 1,800
Belt driven Belt driven
2,330 2,330
22 (55.9) 22 (55.9)
Pusher Pusher
7,445 (211) 7,445 (211)
6.34 (24) 6.34 (24)
243,435 243,435
(71.34) (71.34)
