Section 4: Operation
For operation instructions of the Power Zone 410, see the
technical manual.
Control Panel
DANGER
Automatic start-up. Disconnect utility power and render
unit inoperable before working on unit. Failure to do so
will result in death or serious injury.
NOTE: The control panel is intended for use by qualified
service personnel only.
See Figure 4-1. The control panel is located behind the
viewing window at the rear of the unit.
Figure 4-1.
H
G F
E
D

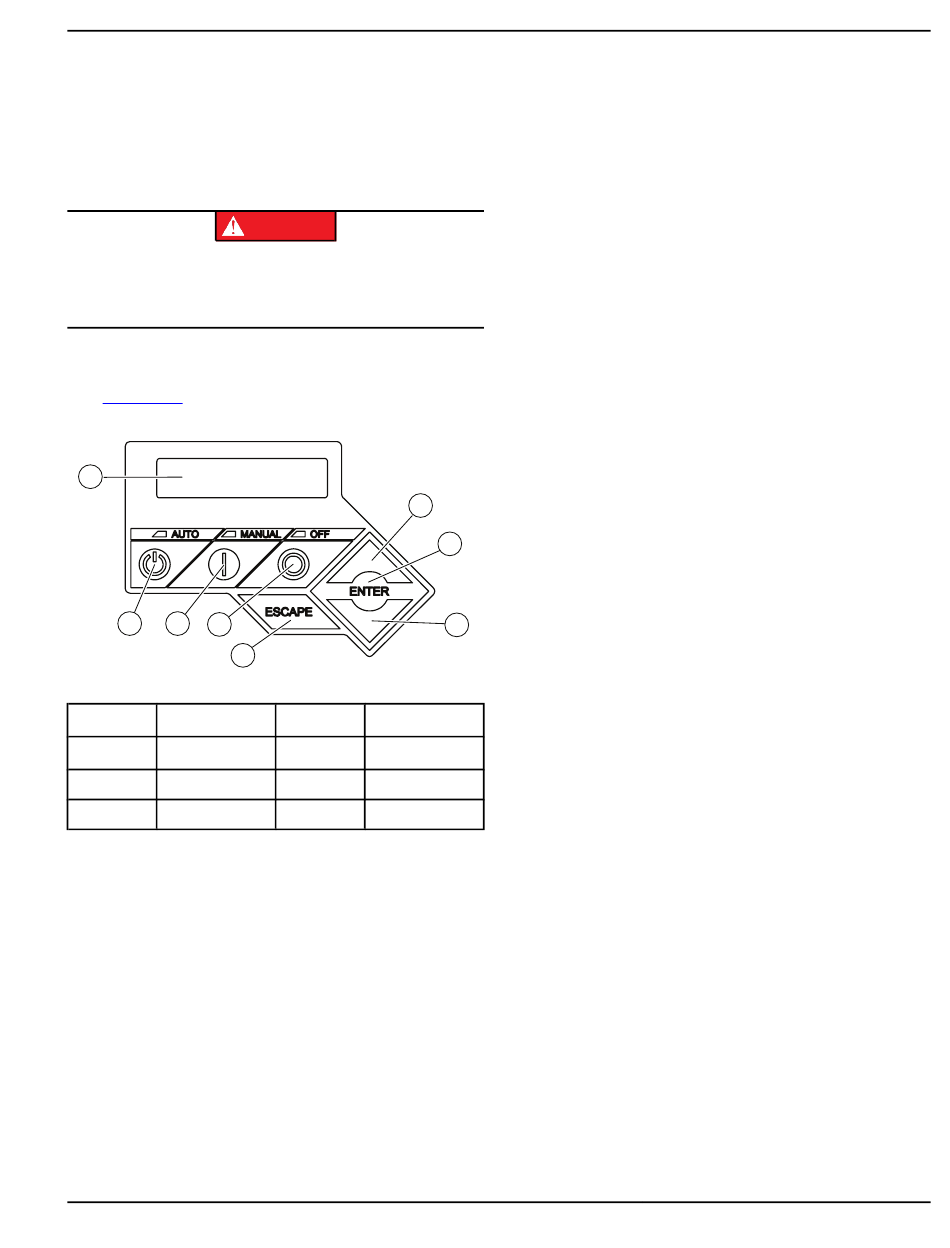

Figure 4-1. Control Panel and LCD
Up arrow (+)
A
ENTER (-)
B
C Down arrow
D ESCAPE
IMPORTANT NOTE: With control panel set to AUTO,
engine may crank and start at any time without warn-
ing. Such automatic starting occurs during the pro-
grammed exercise cycle or when utility power source
voltage drops below configured level. To prevent
possible injury that might occur during sudden
starts, always set control panel to OFF and remove
the 7.5 amp fuse from the control panel before work-
ing on or around the generator or transfer switch. For
added security, place a DO NOT OPERATE tag or
placard on both the control panel and transfer
switch.
