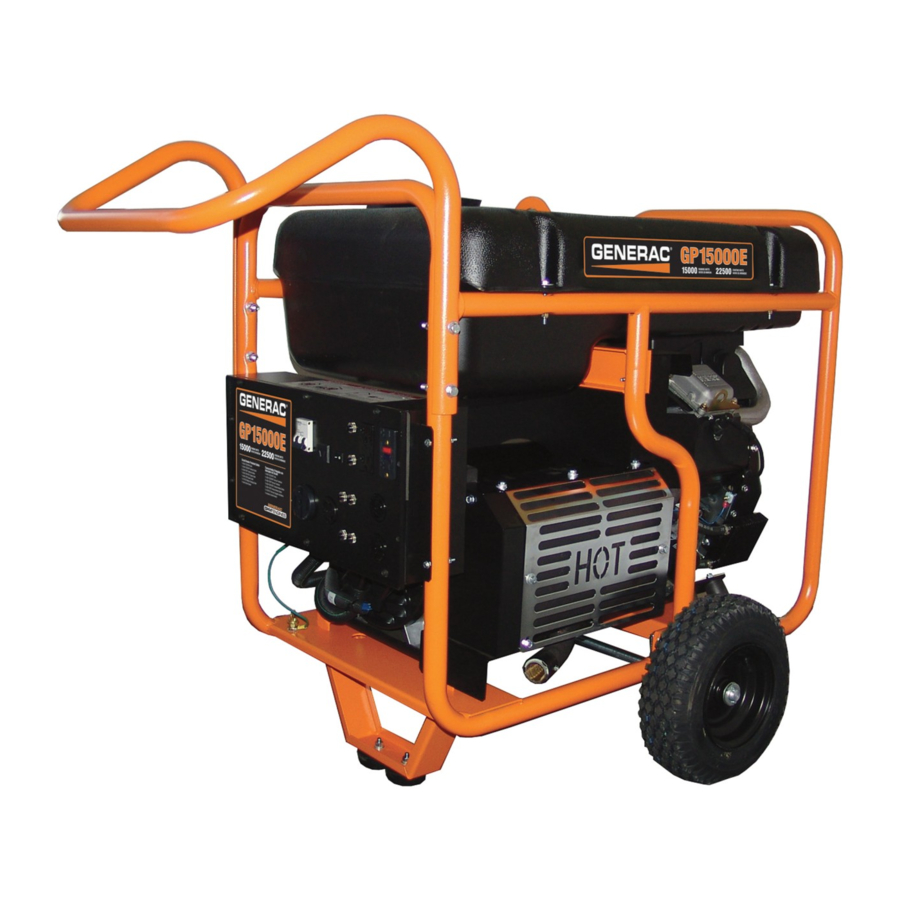

Generac 5734 GP15000E, 5735 GP17500E - Portable Generator Manual

Generac 5734 GP15000E, 5735 GP17500E - Portable Generator Manual

Also See for 5734:

Advertisement

Table of Contents
Contents
Generac 5734 GP15000E, 5735 GP17500E - Portable Generator Manual

Introduction

warning Read This Manual Thoroughly


Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury.

If any section of this manual is not understood, contact the nearest Independent Authorized Service Dealer (IASD) or Generac Customer Service at 1-888-436-3722 (1-888-GENERAC), or visit www.generac.com for starting, operating, and servicing procedures. The owner is responsible for proper maintenance and safe use of the unit.

SAVE THESE INSTRUCTIONS for future reference. This manual contains important instructions that must be followed during placement, operation, and maintenance of the unit and its components. Always supply this manual to any individual that will use this unit.

The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice.

Safety Rules

The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The alerts in this manual, and on tags and decals affixed to the unit, are not all inclusive. If using a procedure, work method, or operating technique that the manufacturer does not specifically recommend, verify that it is safe for others and does not render the equipment unsafe.

Throughout this publication, and on tags and decals affixed to the unit, DANGER, WARNING, CAUTION, and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Alert definitions are as follows:


Indicates a hazardous situation which, if not avoided, will result in death or serious injury.


Indicates a hazardous situation which, if not avoided, could result in death or serious injury.


Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

warning NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual.

These safety alerts cannot eliminate the hazards that they indicate. Common sense and strict compliance with the special instructions while performing the action or service are essential to preventing accidents.

Safety Symbols and Meanings


Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.


NEVER use inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.


Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury.

  • If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poisoning.


Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury.


Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury.


Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator.


Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury.


Equipment and property damage. Do not operate unit on uneven surfaces, or areas of excessive moisture, dirt, dust or corrosive vapors. Doing so could result in death, serious injury, property and equipment damage.


Moving Parts. Keep clothing, hair, and appendages away from moving parts. Failure to do so could result in death or serious injury.


Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustables during use. Hot surfaces could result in severe burns or fire.


Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage.


Risk of injury. Do not operate or service this machine if not fully alert. Fatigue can impair the ability to service this equipment and could result in death or serious injury.


Injury and equipment damage. Do not use generator as a step. Doing so could result in falling, damaged parts, unsafe equipment operation, and could result in death or serious injury.


Equipment damage. Do not attempt to start or operate a unit in need of repair or scheduled maintenance. Doing so could result in serious injury, death, or equipment failure or damage.


Hearing protection recommended

  • For safety reasons, it is recommended that the maintenance of this equipment be performed by an IASD. Inspect the generator regularly, and contact the nearest IASD for parts needing repair or replacement.

Exhaust and Location Hazards

  • Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury.
  • Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury.


Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator.


Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury.


Fire Risk. Hot engine exhaust can ignite certain materials. Maintain at least five feet clearance on all sides of the generator, including overhead, to reduce risk of fire, property damage, or personal injury.

  • If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poisoning.
  • NEVER run a generator indoors or in a partly enclosed area such as garages.
  • ONLY use outdoors and far away from windows, doors, vents, crawlspaces and in an area where adequate ventilation is available and will not accumulate deadly exhaust gas.
  • Point muffler exhaust away from people and occupied buildings.
  • Using a fan or opening a door will not provide sufficient ventilation.

Electrical Hazards


Electrocution. Contact with bare wires, terminals, and connections while generator is running will result in death or serious injury. (000144)


Electrocution. Water contact with a power source, if not avoided, will result in death or serious injury.


Electrocution. In the event of electrical accident, immediately shut power OFF. Use non-conductive implements to free victim from live conductor. Apply first aid and get medical help. Failure to do so will result in death or serious injury.


Accidental Start-up. Disconnect the negative battery cable, then the positive battery cable when working on unit. Failure to do so could result in death or serious injury.

  • The National Electric Code (NEC) requires the frame and external electrically conductive parts of the generator be properly connected to an approved earth ground. Local electrical codes may also require proper grounding of the generator. Consult with a local electrician for grounding requirements in the area.
  • Use a ground fault circuit interrupter in any damp or highly conductive area (such as metal decking or steel work).

Fire Hazards

  • Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.
  • Explosion and Fire. Do not overfill fuel tank. Fill to 1/2 inch from top of tank to allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury.
  • Risk of fire. Allow fuel spills to completely dry before starting engine. Failure to do so will result in death or serious injury.

  • Fire risk. Fuel and vapors are extremely flammable. Do not operate indoors. Doing so could result in death, serious injury, or property or equipment damage.
  • Explosion and fire risk. Do not smoke near unit. Keep fire and spark away. Failure to do so could result in death, serious injury, or property or equipment damage.
  • Explosion and Fire. Do not smoke while refueling unit. Failure to do so could result in death, serious injury, or property or equipment damage.
  • Fire Risk. Hot engine exhaust can ignite certain materials. Maintain at least five feet clearance on all sides of the generator, including overhead, to reduce risk of fire, property damage, or personal injury.
  • Wipe up any fuel or oil spills immediately. Verify that no combustible materials are left on or near the generator. Keep the area surrounding the generator clean and free from debris and keep a clearance of five (5) feet on all sides to allow for proper ventilation of the generator and to reduce the risk of fire. Do not use in an enclosed or partially enclosed structure.
  • Do not operate the generator if connected electrical devices overheat, if electrical output is lost, if engine or generator sparks or if flames or smoke are observed while unit is running.
  • Keep a fire extinguisher near the generator at all times.

General Information and Setup

Features and Controls

Features and Controls
Figure 2-1. Features and Controls

  1. Start/Run/Stop Switch
  2. Choke Knob
  3. Winter/Summer Valve
  4. Fuel Tank
  5. Grounding Lug
  6. Air Cleaner
  7. Oil Fill
  8. 10 Amp Fuse (behind control panel, not shown)

Generator Components

Control Panel
Figure 2-2. Control Panel

  1. 12 Volt DC, 10 Amp Receptacle
  2. 120 Volt AC, 20 Amp Duplex Receptacle
  3. 120 Volt AC, 20 Amp, GFCI Duplex Receptacle (NEMA 5-20R)
  4. 120 Volt AC, 30 Amp Locking Receptacle (NEMA L14-30R)
  5. 120/240 Volt AC, 30 Amp Locking Receptacle (NEMA L14-30R)
  6. 120/240 Volt AC, 50 Amp Receptacle (NEMA 14-50R)
  7. Circuit Breakers (AC)
  8. Hour Meter
  9. Idle Control Switch

Know Your Generator


Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury.

Replacement owner's manuals are available at www.generac.com.

Product Specifications

Generator Specifications

Rated Power 15.1 / 17.5 kW**
Surge Power 22.5 / 26.25 KVA
Rated AC Voltage 120/240
Rated AC Load
Current @ 240V
Current @ 120V
62. 62.9 / 72.9 Amps**
125.8 / 145.8 Amps**
Rated Frequency Hz @ 3600 RPM
Phase Single Phase

** Operating Temperature Range: -18 deg. C (0 deg. F) to 40 Deg. C (104 Deg. F). When operated above 25 deg. C (77 deg. F) there may be a decrease in power.

** Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperature, altitude, engine condition, etc.. Maximum power decreases about 3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 6°C (10°F) above 16°C (60°F) ambient temperature.

Engine Specifications

Displacement 992 cc
Spark Plug Type Champion RC14YC or Equivalent
Spark Plug Part No. 0E7585A
Spark Plug Gap 0.040 inch or (1.016 mm)
Gasoline Capacity 60.5 L (16 U.S. gallons)
Oil Type See Chart in the Add Engine Oil Section
Oil Capacity
With filter change
Without filter change
1.6 L (1.7 qt.)
1.3 L (1.4 qt.)
Run Time at 50% Load Hours

* Go to www.generac.com or contact an IASD for replacement parts.

Hour Meter

The Hour Meter tracks hours of operation for scheduled maintenance. See Figure 2-3.
Hour Meter
Figure 2-3. Hour Meter

  • The SVC display will illuminate one hour before and one hour after each 200 hour interval providing a two hour window to perform service.

When the hour meter is in flash alert mode, the maintenance message will alternate with elapsed time in hours and tenths. The hours will flash four times, then alternate with the maintenance message four times until the meter automatically resets.

  • 200 hours - SVC — Change oil, oil filter, air filter, fuel filter, and spark plug. Clean spark arrestor screen. (Every 200 hrs)

warning NOTE: The hour glass icon will flash when the engine is running. This signifies the meter is recording hours of operation.

Connection Plugs

120 VAC, 20 Amp, Duplex Receptacle

The 120 Volt outlet is overload protected by a 20 Amp push-to-reset circuit breaker. See Figure 2-4.

Figure 2-4. 120 VAC, 20 Amp, Duplex Receptacle NEMA 5-20R

Each receptacle will power 120 Volt AC, single phase, 60 Hz electrical loads requiring up to 2400 watts (2.4 kW) or 20 Amps of current. Use only high quality, well-insulated, 3-wire grounded cord sets rated for 125 Volts at 20 Amps (or greater).

120 VAC, 20 Amp, GFCI Duplex Receptacle

The 120 Volt outlet is overload protected by a 20 Amp push-to-reset circuit breaker. See Figure 2-5.

Figure 2-5. 120 VAC, 20 Amp, GFCI Duplex Receptacle NEMA 5-20R

Each receptacle will power 120 Volt AC, single phase, 60 Hz electrical loads requiring up to 2400 watts (2.4 kW) or 20 Amps of current. Use only high quality, well-insulated, 3-wire grounded cord sets rated for 125 Volts at 20 Amps (or greater). It also provides protection with a Ground Fault Circuit Interrupter with a press to TEST and RESET button.

120/240 VAC, 30 Amp Receptacle

Use a NEMA L14-30 plug with this receptacle (rotate to lock/unlock). Connect a suitable 4wire grounded cord set to plug and desired load. The cord set should be rated 250 Volts AC at 30 Amps (or greater). See Figure 2-6.

Figure 2-6. 120/240 VAC, 30 Amp Receptacle NEMA L14-30R

Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps or 240 Volt AC, 60 Hz, single phase loads requiring up to 7200 watts (7.2 kW) of power at 30 Amps. The outlet is protected by two 30 Amp push button to reset circuit breaker.

120 VAC, 30 Amp Receptacle

Use a NEMA L5-30 plug with this receptacle (rotate to lock/unlock). Connect a suitable 3wire cord set to the plug and to desired load. The cord set should be rated for 125 Volts AC at 30 Amps (or greater). See Figure 2-7.

Figure 2-7. 120 VAC, 30 Amp Receptacle NEMA L5-30

Use this receptacle to operate 120 Volt AC, 60Hz, single phase loads requiring up to 3600 watts (3.6kW) of power at 30 Amps. The outlet is protected by a 30 Amp push-to-reset circuit breaker.

12 Volt DC, 10 Amp Receptacle

This receptacle can charge a 12-Volt automotive or utility style storage battery. See Figure 2-8.

Figure 2-8. 120 Volt DC, 10 Amp Receptacle

warning NOTE: This receptacle cannot charge 6-volt batteries and cannot be used to crank an engine having a discharged battery. See Using the 12 VDC Battery Charger before attempting to charge a battery.

120/240 VAC, 50 Amp receptacle

Use a NEMA 14-50 plug with this receptacle. Connect a 4-wire cord set rated for 250 Volts AC at 50 Amps to plug Figure 2-9.

Figure 2-9. 120/240 VAC, 50 Amp Receptacle NEMA 14-50

Use this receptacle to operate 120/240 Volt AC, 60 Hz electrical loads requiring up to 12,000 watts (12.0 kW) of power. This receptacle is protected by a 50 Amp 2-pole circuit breaker.

Idle Control Switch

This feature improves fuel economy. When switch is ON, the engine operates at normal (high) rpm when an electrical load is present. The engine operates at a reduced rpm when load is removed. When the switch is OFF, the engine operates at normal (high) rpm continuously.

Always have this switch OFF when starting/ stopping the engine and when using the generator as a backup power supply to a house/ building connected via Power Inlet Box to a transfer switch.

Remove Contents from Carton

  1. Open carton completely by cutting each corner from top to bottom.
  2. Remove and verify carton contents prior to assembly. Carton contents should contain the following:

Accessories

Item Qty.
Main Unit 1
Owner's Manual 1
Liter Oil SAE 30 2
Handle (A) 1
Never-flat Wheel (B) 2
Frame Foot Assembly (C) 1
Axle (D) 1
Axle Bracket Assembly (E) 2
Spark Plug 2
Spark Plug Wrench 1
Air Filter 1
Oil Filter 1
Pre-cleaner 1
Battery Charge Cable 1
Product Registration Card 3
Service Warranty 1
Emissions Warranty 1
Hardware Bag Qty.
Cotter Pin (F) 2
Spacer (G) 2
Locking Flange Nut (H) 10
Hex Head Bolt (J) 6
Lock Washer (K) 2
Flat Washer (L) 8
Capscrew (5/16 x 1) (M) 2
Capscrew (5/16 x 2-1/2) (N) 4
  1. Call Generac Customer Service 1-888GENERAC (1-888-436-3722) with the unit model and serial number for any missing carton contents.
  2. Record model, serial number, and date of purchase on front cover of this manual.

Assembly


Consult Manual. Read and understand manual completely before using product. Failure to completely understand manual and product could result in death or serious injury.

Call Generac Customer Service at 1-888GENERAC (1-888-436-3722) for any assembly issues or concerns. Please have model and serial number available.

The following tools are required to install the accessory kit.

  • Needle nose pliers
  • 9/16" and 1/2" socket and ratchet
  • 1/2" wrench

warning NOTE: The wheels are not intended for over-the-road use. See Figure 2-10.

Wheel & Handle Assembly
Figure 2-10. Wheel & Handle Assembly

Install wheels as follows:

  1. Slide axle (D) through the flat washer (L) spacer (G), wheel (B), and axle bracket assembly (E) on frame.
  2. Insert cotter pin (F) through axle (D). Bend tabs (of cotter pins) outward to lock into place.
  3. Install locking flange nut (H).

Install frame foot assembly as follows:

  1. Slide hex head bolts (J) through holes in frame rail.
  2. Slide frame foot (C) onto hex head bolts(J). Install locking flange nut (H).
  3. Slide capscrew (M) through frame foot assembly (C). Install lock washer (K), flat washer (L) and locking flange nut (H).

Install handle as follows:

  1. Slide capscrew (N) through flat washer (L), handle (A) and frame. Install flat washer (L) and locking flange nut (H).

Battery Cable Connection


Equipment damage. Do not make battery connections in reverse. Doing so will result in equipment damage.

The battery shipped with the generator has been provided fully charged. Caution must be taken when connecting battery.

warning NOTE: A battery may lose some of it's charge when not in use for prolonged periods of time.

Two 7/16" box wrenches are needed to connect battery cables.

  1. Cut tie wrap cable holding the RED and BLACK battery cables to the stator.
  2. See Figure 2-11.
    Battery Cable Connection
    Figure 2-11. Battery Connection

    Connect RED battery cable (A) to battery Positive terminal (+). Make sure connection is tight and slip rubber boot over terminal.
  3. Connect BLACK battery cable (B) to battery Negative terminal (–). Make sure connection is tight.
  4. Install battery post cover (included). See Figure 2-11.

Add Engine Oil


Engine damage. Verify proper type and quantity of engine oil prior to starting engine. Failure to do so could result in engine damage.

  1. Place generator on a level surface.
  2. Remove dipstick and wipe clean. See Figure 2-12.

    Figure 2-12. Remove Dipstick
  3. Insert dipstick and remove again to check oil level. Oil level is checked with dipstick fully installed. See Figure 2-13.
    Add Engine Oil - Safe Operating Range
    Figure 2-13. Safe Operating Range
  4. Clean area around oil fill. Remove oil fill cap. See Figure 2-14.

    Figure 2-14. Remove Oil Fill Cap
  5. Add recommended engine oil. Climate determines proper engine oil viscosity. See chart to select correct viscosity.

warning NOTE: Use petroleum based oil (supplied) for engine break-in before using synthetic oil.

warning NOTE: Verify oil level often during filling process to ensure overfilling does not occur.

Add Engine Oil - Temperature Range
Temperature Range of Expected Use

warning NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point.

  1. Remove dipstick and verify oil level is within safe operating range. See Figure 2-13.
  2. Install dipstick and oil fill cap and hand tighten.

Fuel


Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.


Explosion and Fire. Do not overfill fuel tank. Fill to 1/2 inch from top of tank to allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury.

Fuel requirements are as follows:

  • Clean, fresh, unleaded gasoline.
  • Minimum rating of 87 octane/87 AKI (91 RON).
  • Up to 10% ethanol (gasohol) is acceptable (where available; non-ethanol-premium fuel is recommended).
  • DO NOT use E85.
  • DO NOT use a gas oil mix.
  • DO NOT modify engine to run on alternate fuels. Stabilize fuel prior to storage.
  1. Verify unit is OFF and cooled for a minimum of two minutes prior to fueling.
  2. Place unit on level ground in a well ventilated area.
  3. Clean area around fuel cap and remove cap slowly.
  4. Slowly add recommended fuel (A). Do notoverfill (B). See Figure 2-15.
    Add Recommended Fuel
    Figure 2-15. Add Recommended Fuel
  5. Install fuel cap.

warning NOTE: Allow spilled fuel to evaporate before starting unit.


It is important to prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. See the Storage section. Never use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.

Operation

Operation and Use Questions

Call Generac customer service at 1-888-GENERAC (1-888-436-3722) with questions or concerns about equipment operation and maintenance.

Before Starting Engine

  1. Verify engine oil level is correct.
  2. Verify fuel level is correct.
  3. Verify unit is secure on level ground, with proper clearance and is in a well ventilated area.

Prepare Generator for Use


Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury.


Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury.


Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer's instructions. Failure to do so could result in death or serious injury.


Risk of fire. Do not use generator without spark arrestor installed. Failure to do so could result in death or serious injury.


Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury.


Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire.


Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.

Grounding the Generator When Used as a Portable

The generator is equipped with a terminal for the connection of a grounding electrode system. Article 250.34 (A) does not require the frame of the generator to be connected to a grounding electrode system when the generator only supplies power to cord and plug connected equipment through the receptacles on the generator.

When the generator supplies power to a 3-pole manual transfer switch or distribution panel boards for temporary power, a grounding electrode system shall be installed and connected to the grounding electrode terminal on the generator. See NEC 250.30, 250.34 and 250.52 for clarification. See Figure 3-1

  • Neutral Bonded to Fram

    Figure 3-1 . Grounding the Generator

Special Requirements

Review all Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator.

Consult a qualified electrician, electrical inspector, or the local agency having jurisdiction:

  • In some areas, generators are required to be registered with local utility companies.
  • If the generator is used at a construction site, there may be additional regulations which must be observed.

Connecting the Generator to a Building Electrical System

When connecting directly to a building electrical system, it is recommended that a manual transfer switch be used. Connections for a portable generator to a building electrical system must be made by a qualified electrician and in strict compliance with all national and local electrical codes and laws.

Know Generator Limits

Overloading a generator can result in damage to the generator and connected electrical devices. Observe the following to prevent overload:

  • Add up the total wattage of all electrical devices to be connected at one time. This total should NOT be greater than the generator's wattage capacity.
  • The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances, and motors can be found on a data label or decal affixed to the device.
  • If the appliance, tool, or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).
  • Some electric motors, such as induction types, require about three times more watts of power for starting than for running. This surge of power lasts only a few seconds when starting such motors. Make sure to allow for high starting wattage when selecting electrical devices to connect to the generator:
  1. Figure the watts needed to start the largest motor.
  2. Add to that figure the running watts of all other connected loads.

The Wattage Reference Guide is provided to assist in determining how many items the generator can operate at one time.

warning NOTE: All figures are approximate. See data label on appliance for wattage requirements.

Table 3. Wattage Reference Guide

Device Running Watts
*Air Conditioner (12,000 Btu) 1700
*Air Conditioner (24,000 Btu) 3800
*Air Conditioner (40,000 Btu) 6000
Battery Charger (20 Amp) 500
Belt Sander (3") 1000
Chain Saw 1200
Circular Saw (7-1/4") 1250 to 1400
*Clothes Dryer (Electric) 5750
*Clothes Dryer (Gas) 700
*Clothes Washer 1150
Coffee Maker 1750
*Compressor (1 HP) 2000
*Compressor (3/4 HP) 1800
*Compressor (1/2 HP) 1400
Curling Iron 700
*Dehumidifier 650
Disc Sander (9") 1200
Edge Trimmer 500
Electric Blanket 400
Electric Nail Gun 1200
Electric Range (per element) 1500
Electric Skillet 1250
*Freezer 700
*Furnace Fan (3/5 HP) 875
*Garage Door Opener 500 to 750
Hair Dryer 1200
Hand Drill 250 to 1100
Hedge Trimmer 450
Impact Wrench 500
Iron 1200
*Jet Pump 800
Lawn Mower 1200
Light Bulb 100
Microwave Oven 700 to 1000
*Milk Cooler 1100
Oil Burner on Furnace 300
Oil Fired Space Heater (140,000 Btu) 400
Oil Fired Space Heater (85,000 Btu) 225
Oil Fired Space Heater (30,000 Btu) 150
*Paint Sprayer, Airless (1/3 HP) 600
Paint Sprayer, Airless (hand-held) 150
Radio 50 to 200
*Refrigerator 700
Slow Cooker 200
*Submersible Pump (1-1/2 HP) 2800
*Submersible Pump (1 HP) 2000
*Submersible Pump (1/2 HP) 1500
*Sump Pump 800 to 1050
*Table Saw (10") 1750 to 2000
Television 200 to 500
Toaster 1000 to 1650
Weed Trimmer 500

* Allow 3 times the listed watts for starting these devices

Transporting/Tipping of the Unit

Do not operate, store or transport the unit at an angle greater than 15 degrees.

Starting Electric Start Engines


Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.

  1. Unplug all electrical loads from the unit's receptacles before starting the engine.
  2. Place generator on a level surface.
  3. Open the fuel shut-off valve. See Figure 32.
    Starting Electric Start Engines
    Figure 3-2. Fuel Shut-off Valve
  4. On the control panel, turn the idle controls witch Off. See Figure 2-2.
  5. Move engine choke knob outward to FullChoke. See Figure 3-3.

    Figure 3-3.Choke Position
  6. Press and hold Start/Run/Stop switch in the Start position. When engine starts, release the switch to the RUN position.
  7. When engine starts, move choke knob to1/2 choke position until engine runs smoothly, then fully to RUN position. If engine falters, move choke knob back to 1/2 choke position until engine runs smoothly, then move to RUN position.


Do not overload the generator. Also, do not overload individual panel receptacles. These outlets are protected against overload with push-to-reset type circuit breakers. If amperage rating of any circuit breaker is exceeded, that breaker opens and electrical output to that receptacle is lost. Read Know Generator Limits carefully.

Generator Shut Down


Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.

  1. Shut off all loads and unplug electrical loads from generator panel receptacles.
  2. Turn Off idle control switch.
  3. Let engine run at no-load for several minutes to stabilize internal temperatures of engine and generator.
  4. Move Start/Run/Stop switch to Stop.
  5. Close fuel valve.

warning NOTE: Under normal conditions, close fuel valve and allow generator to run carburetor bowl out of fuel. For emergencies, switch to Stop.

Automatic Idle Control

This feature will improve fuel economy. When the switch is turned On, the engine will only run at its normal fast governed engine speed when electrical load is connected. When load is removed, the engine will run at a reduced speed. With the switch Off, the engine runs continuously at normal fast engine speed.
Always have the switch Off when starting and stopping the engine.

Cold Weather Operation/De-icer

Under certain weather conditions (temperatures below 40°F (4°C) and a high dew point), the engine may experience icing of the carburetor and/or the crankcase breather system. To eliminate this problem, the generator engine is fitted with a winter/summer valve.
This directs hot air into the carburetor during cold weather operation. Always make sure the winter/summer valve is in the correct location relative to weather condition.

Low Oil Level Shutdown System

The engine is equipped with a low oil pressure sensor that shuts down the engine automatically when the oil pressure drops below a specified level. The engine will not run until the oil has been filled to the proper level.
If the engine shuts down and there is sufficient fuel, check engine oil level.

Using the 12 VDC Battery Charger


Explosion. Batteries emit explosive gases while charging. Keep fire and spark away. Wear protective gear when working with batteries. Failure to do so could result in death or serious injury.


Risk of burn. Do not open or mutilate batteries. Batteries contain electrolyte solution which can cause burns and blindness. If electrolyte contacts skin or eyes, flush with water and seek immediate medical attention.


Risk of burns. Batteries contain sulfuric acid and can cause severe chemical burns. Wear protective gear when working with batteries. Failure to do so could result in death or serious injury.


Equipment damage. Do not make battery connections in reverse. Doing so will result in equipment damage.

The 12 VDC receptacle may be used to recharge 12 VDC automotive batteries only. The DC charging output is not regulated. The circuit protector does not prevent overcharging a battery.

  1. Connect the charging cable to the generator first, then the battery. ALWAYS connect the red lead to positive (+), and the black to negative (-).
  2. Start generator and use as normal. Charging time will vary with battery size and condition. Check voltage at battery terminals once the charging cable has been unplugged, or generator has been shut down.

warning NOTE: This receptacle cannot recharge 6 Volt batteries and cannot be used to crank an engine having a discharged battery.

Maintenance and Troubleshooting

Maintenance

Regular maintenance will improve performance and extend engine/equipment life. Generac Power Systems, Inc. recommends that all maintenance work be performed by an Independent Authorized Service Dealer (IASD). Regular maintenance, replacement, or repair of the emissions control devices and systems may be performed by any repair shop or person of the owner's choosing. To obtain emissions control warranty service free of charge, the work must be performed by an IASD. See the emissions warranty.

warning NOTE: Call 1-888-GENERAC (1-888-4363722) with questions about component replacement.

Maintenance Schedule

Follow maintenance schedule intervals, whichever occurs first according to use.

warning NOTE: Adverse conditions will require more frequent service.

warning NOTE: All required service and adjustments should be each season as detailed in the following chart.

At Each Use: Check engine oil level

Every 100 Hours or Every Year: Inspect/clean spark arrestor

Every 200 Hours or Every Year:

  • Replace spark plug
  • Replace fuel filter
  • Change oil ǂ
  • Inspect/clean air filter**
  • Check valve clearance***

ǂ Change oil after first 25 hours of operation, then every season.
* Change oil and oil filter every month when operating under heavy load or in high temperatures.
** Clean more often under dirty or dusty operating conditions. Replace air filter parts if they cannot be adequately cleaned.
*** Check valve clearance and adjust if necessary after first 50 hours of operation and every 200 hours thereafter.

Preventive Maintenance

Dirt or debris can cause improper operation and equipment damage. Clean generator daily or before each use. Keep area around and behind muffler free from combustible debris. Inspect all cooling air openings on generator.


Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage.

  • Use a damp cloth to wipe exterior surfaces clean.
  • Use a soft bristle brush to loosen caked on dirt, oil, etc.
  • Use a vacuum to pick up loose dirt and debris.
  • Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect cooling air slots and openings on generator. These openings must be kept clean and unobstructed.

warning NOTE: DO NOT use a garden hose to clean generator. Water can enter engine fuel system and cause problems. If water enters generator through cooling air slots, some water will be retained in voids and crevices of rotor and stator winding insulation. Water and dirt buildup on generator internal windings will decrease insulation resistance of windings.

Engine Maintenance


Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.

Engine Oil Recommendations

To maintain the product warranty, the engine oil should be serviced in accordance with the recommendations of this manual. For your convenience, maintenance kits designed and intended for use on this product are available from the manufacturer that include engine oil, oil filter, air filter, spark plug(s), a shop towel and funnel. These kits can be obtained from an Independent Authorized Service Dealer (IASD).
Engine Oil Recommendations - Temperature Range
Temperature Range of Expected Use

Inspect Engine Oil Level


Risk of burns. Allow engine to cool before draining oil or coolant. Failure to do so could result in death or serious injury.

Inspect engine oil level prior to each use, and after every 8 hours of operation.

  1. Place generator on a level surface.
  2. Remove dipstick and wipe clean. See Figure 4-1.

    Figure 4-1. Remove Dipstick
  3. Insert dipstick and remove again to check oil level. Oil level is checked with dipstick fully installed. See Figure 4-2.
    Inspect Oil Level - Safe Operating Range
    Figure 4-2. Safe Operating Range
  4. Clean area around oil fill. Remove oil fill cap.
  5. Add recommended engine oil as necessary.
  6. Remove dipstick and verify oil level is within safe operating range.
  7. Install dipstick and oil fill cap and hand tighten.

warning NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point.

Change Engine Oil


Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.

When using generator under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently.

warning NOTE: Don't pollute. Conserve resources. Return used oil to collection centers.

Change oil while engine is still warm from running, as follows:

  1. Place generator on a level surface.
  2. Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
  3. Clean area around oil fill, and oil drain plug.
  4. Remove oil fill cap.
  5. Remove oil drain plug and drain oil completely into a suitable container.
  6. Install oil drain plug and tighten securely.
  7. Coat gasket of new filter with clean engine oil and install.
  8. Slowly pour oil into oil fill opening until oil level is between L and H marks on dipstick. DO NOT overfill.
  9. Install dipstick and oil fill cap, and hand tighten.
  10. Wipe up any spilled oil.
  11. Properly dispose of oil in accordance with all applicable regulations.

Air Filter

Engine will not run properly and may be damaged if run with a dirty air filter. Service air filter more frequently in dirty or dusty conditions. To service air filter:

  1. Turn knobs (A) and remove air filter cover(B). See Figure 4-3.

    Figure 4-3. Air Filter Assembly
  2. Remove wing nut (C) and filter (D). Gently tap filter on a solid surface. Replace if necessary.
  3. Clean air filter cover before installation.

warning NOTE: To order a new air filter, contact the nearest authorized service center at 1-888436-3722.

Service Spark Plug

To service spark plug:

  1. Clean area around spark plug.
  2. Remove and inspect spark plug.
  3. Inspect electrode gap with wire feeler gauge and reset spark plug gap to 0.04 in (1.01 mm). See Figure 4-4.
    Service Spark Plug
    Figure 4-4. Spark Plug
    warning NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug. See Specifications.
  4. Install spark plug finger tight, and tighten an additional 3/8 to 1/2 turn using spark plug wrench.

Battery Replacement (if applicable)

warning NOTE: The battery shipped with the generator has been fully charged. A battery may lose some charge when not in use for prolonged periods of time.


Accidental Start-up. Disconnect the negative battery cable, then the positive battery cable when working on unit. Failure to do so could result in death or serious injury.

See Figure 4-5.
Battery Replacement (if applicable)
Figure 4-5. Battery Connection

  1. Disconnect negative (-) battery terminal FIRST (B).
  2. Disconnect positive (+) battery terminal SECOND (A).
  3. Install new battery. Install hold down bracket and tighten.
  4. Connect positive (+) battery terminal (A) FIRST. Slide rubber boot over connection hardware.
  5. Connect negative (-) battery terminal (B) SECOND.
  6. Slide rubber boot over connection hardware.

Inspect Muffler and Spark Arrester

warning NOTE: It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.
Contact original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for exhaust system installed on this engine.

warning NOTE: Use ONLY original equipment replacement parts.
Inspect muffler for cracks, corrosion, or other damage. Remove spark arrester, if equipped, inspect for damage or carbon blockage. Replace parts or clear carbon from screen as required.

Inspect Spark Arrester Screen


Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire.

  1. See Figure 4-6.

    Figure 4-6. Spark Arrestor Screen

    Remove screw (A) and retaining bracket (B).
  2. Remove screen (C) and replace if torn, perforated or otherwise damaged. If screen is not damaged, clean with commercial solvent.
  3. Replace screen and secure with bracke-tand screw.

Valve Clearance


Please contact an Independent Authorized Service Dealer for service assistance. Proper valve clearance is essential for prolonging the life of the engine.

Check valve clearance after the first fifty-hours of operation. Adjust as necessary.

  • Intake — 0.15 +/- 0.02mm (cold), (0.006 +/0.0008 inches)
  • Exhaust — 0.20 +/- 0.02mm (cold) (0.008 +/- 0.0008 inches)

Storage

General


Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Store fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.


Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire.

It is recommended to start and run the generator for 30 minutes, every 30 days. If this is not possible, refer to the following list to prepare unit for storage.

  • DO NOT place a storage cover on a hot generator. Allow unit to cool to room temperature before storage.
  • DO NOT store fuel from one season to another unless properly treated.
  • Replace fuel container if rust is present. Rust in fuel will cause fuel system problems.
  • Cover unit with a suitable protective, moisture resistant cover.
  • Store unit in a clean and dry area.
  • Always store generator and fuel away from heat and ignition sources.

Prepare Fuel System for Storage

Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer.

If fuel stabilizer is added to fuel system, prepare and run engine for long term storage. Run engine for 10-15 minutes to circulate stabilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months.

warning NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

  1. Change engine oil.
  2. Remove spark plug.
  3. Pour tablespoon (5-10cc) of clean engine oil or spray a suitable fogging agent into cylinder.


Vision Loss. Eye protection is required to avoid spray from spark plug hole when cranking engine.
Failure to do so could result in vision loss.

  1. Push start button several times to distribute oil in cylinder.
  2. Install spark plug.

Change Oil

Change engine oil before storage. See Change Engine Oil.

Troubleshooting

PROBLEM CAUSE CORRECTION

Engine is running, but AC output is not available.

  1. Circuit breaker OPEN.
  2. Poor connection or defective cord set.
  3. Connected device is bad.
  4. Fault in generator.
  5. GFCI receptacle is OPEN (if equipped).
  1. Reset circuit breaker.
  2. Check and repair.
  3. Connect another device that is in good condition.
  4. Contact IASD.
  5. Correct ground fault and press reset button on GFCI receptacle (if equipped).

Engine runs well at no-load, but bogs when load is applied.

  1. Short circuit in a connected load.
  2. Generator is overloaded.
  3. Engine speed is too slow.
  4. Shorted generator circuit.
  1. Disconnect shorted electrical load.
  2. See Know Generator Limits.
  3. Contact IASD.
  4. Contact IASD.

Engine will not crank.

  1. 10 Amp fuse has melted open.
  2. Battery weak or dead.
  1. Replace fuse.
  2. Charge or replace battery.

Engine will not start; or starts and runs rough.

  1. Fuel shut-off is OFF.
  2. Dirty air filter.
  3. Out of fuel.
  4. Stale fuel.
  5. Spark plug wire not connected to spark plug.
  6. Bad spark plug.
  7. Water in fuel.
  8. Over-choking.
  9. Low oil level.
  10. Excessive rich fuel mixture.
  11. Intake valve stuck open or closed.
  12. Engine lost compression.
  1. Turn fuel shut-off ON.
  2. Clean or replace air filter.
  3. Fill fuel tank.
  4. Drain fuel tank and fill with fresh fuel.
  5. Connect wire to spark plug.
  6. Replace spark plug.
  7. Drain fuel tank; fill with fresh fuel.
  8. Set choke to no choke position.
  9. Fill crankcase to correct level.
  10. Contact IASD.
  11. Contact IASD.
  12. Contact IASD.

Engine shuts down during operation.

  1. Out of fuel.
  2. Low oil level.
  3. Fault in engine.
  1. Fill fuel tank.
  2. Fill crankcase to correct level.
  3. Contact IASD.

Engine lacks power.

  1. Load is too high.
  2. Dirty air filter.
  3. Engine needs to be serviced.
  1. Reduce load (see Know Generator Limits).
  2. Clean or replace air filter.
  3. Contact IASD.

Engine surges or stumbles.

  1. Choke is opened too soon.
  2. Carburetor is running too rich or too lean.
  1. Set choke to halfway position until engine runs smoothly.
  2. Contact IASD.

No battery charge DC output.

  1. Battery posts corroded.
  2. Bad battery cable.
  3. Defective battery.
  4. Bad receptacle.
  1. Clean battery posts.
  2. Replace cable.
  3. Check battery condition. Replace if defective.
  4. Contact IASD.

1-888-GENERAC (1-888-436-3722)

Register your Generac product at:
www.generac.com

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Generac 5734 GP15000E, 5735 GP17500E - Portable Generator Manual

Advertisement

Need help?

Need help?

Do you have a question about the 5734 and is the answer not in the manual?

Questions and answers

Table of Contents
