Section 5: Maintenance
Component Locations
NOTE: The 9.0L (100 kW) unit is depicted in the artwork used in this manual. The location and appearance of some
components may vary between engine models.
The control panel LCD side of the enclosure is identified as the rear of the generator set. The right and left sides are
identified by standing at the rear and looking towards the front of the unit.
Figure 5-1.
Front
D
B
Figure 5-2.
E
NOTE: All normal maintenance and service items are easily accessible for consumer convenience. Wherever possible,
touch points are colored orange to provide for quick and easy recognition.
Spark-Ignited Stationary Generators Owner's Manual
A
C

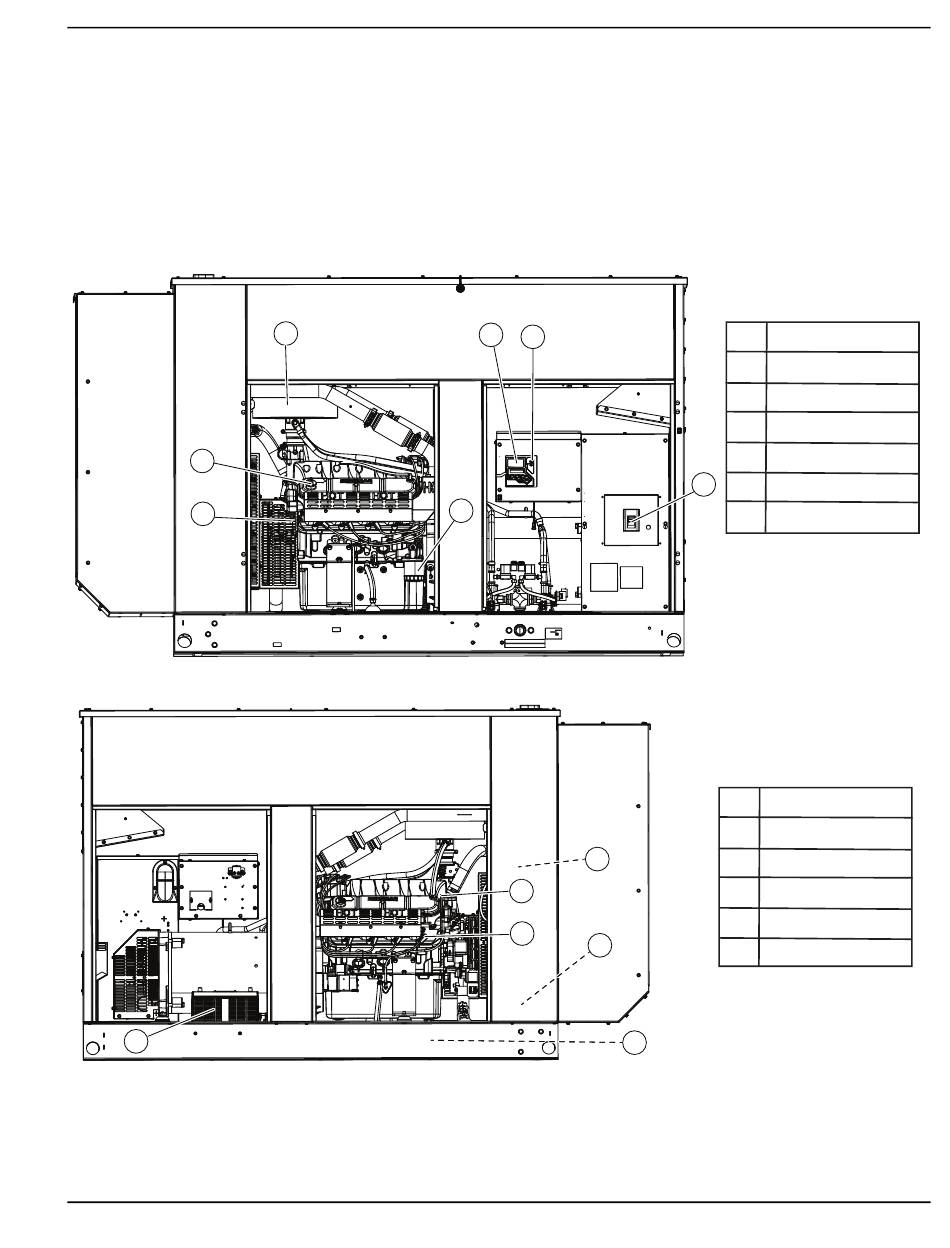

Figure 5-1. Left Side View
Figure 5-2. Right Side View
F
G
Front
D
F
A
C
B
Maintenance
A
Air filter element
B Accessory / fan belt
C Oil filter
D
Oil fill
Generator MLCB
E
(generator disconnect)
E
F
Control panel LCD
G
7.5 Amp fuse and USB port
012630
A
Spark plugs
Oil drain hose
B
C Coolant drain hose
D Coolant overflow reservoir
E Battery
F Oil dipstick
012631
