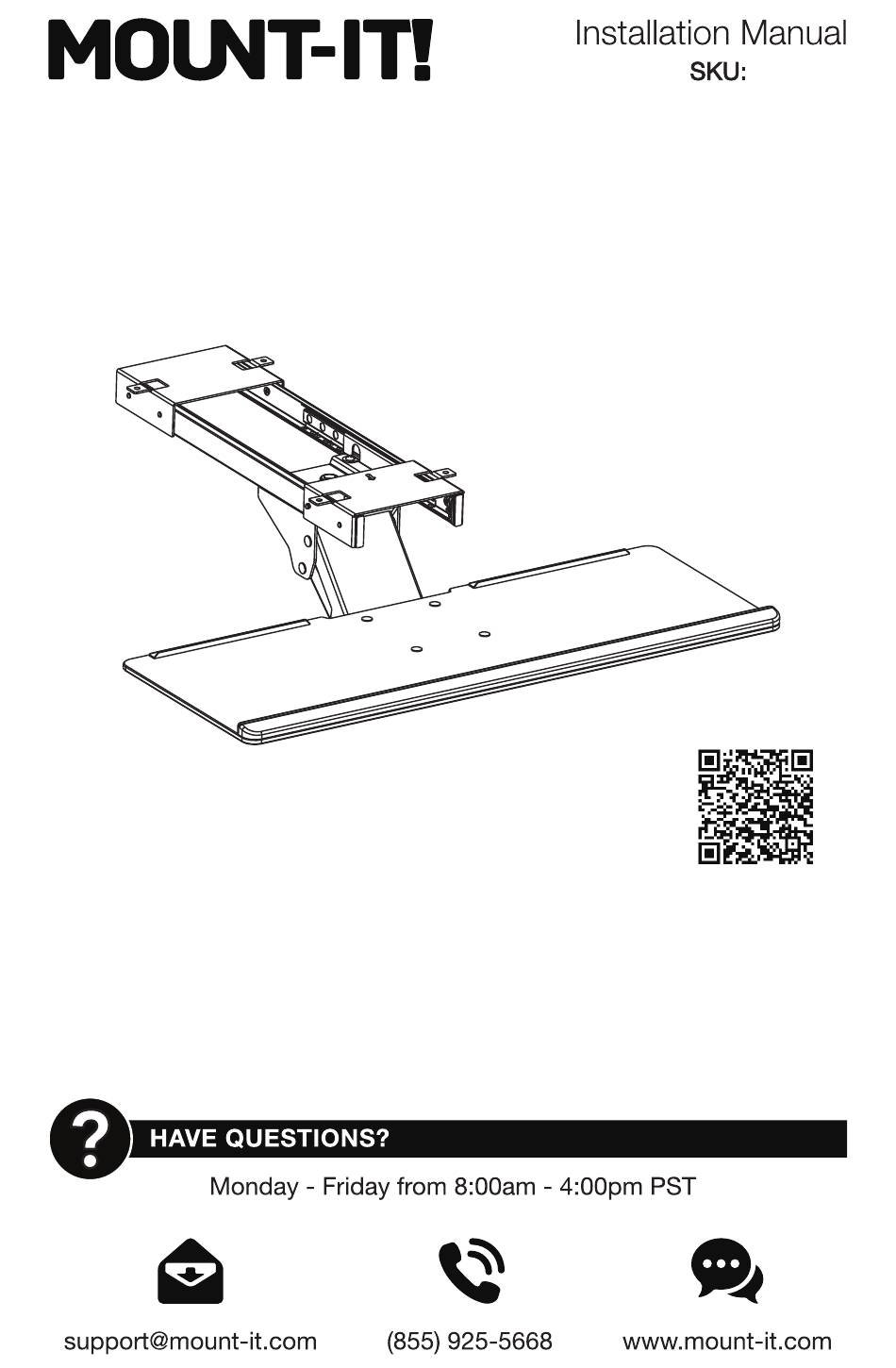

- Page 1 MI-7135 Please scan this QR code to visit the product page. ADJUSTABLE UNDERDESK KEYBOARD TRAY...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! A (x1) B (x1) C (x1) Under Desk Track Keyboard Arm Keyboard Tray D (x4) E (x4) F (x4) G (x4) M5x8 ST5.5x19 M5x12 Decorative Covers Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 2 Connect the Desk Slider to the Keyboard Arm Mount the Under Desk Track • Connect the Keyboard Arm (#B) to the Desk Slider (#A) in the position shown using Bolts (#D). Ensure • Identify the front of the Under Desk Track (#A) indicated by the arrow on the top of the part. Position the Under Desk Track (#A) in the desired location and use a pencil to mark the locations of the 4 holes as that the front of the arm is facing the direction of the arrow on the top of the desk slider.
- Page 4 Step 4 Attach the Keyboard Tray • Attach the Keyboard Tray (#C) using Bolts (#F) in the orientation shown with the wrist rest facing away from the mount and toward the user. Cover the bolt heads by installing Decorative Covers (#G) on the top of the bolts.
