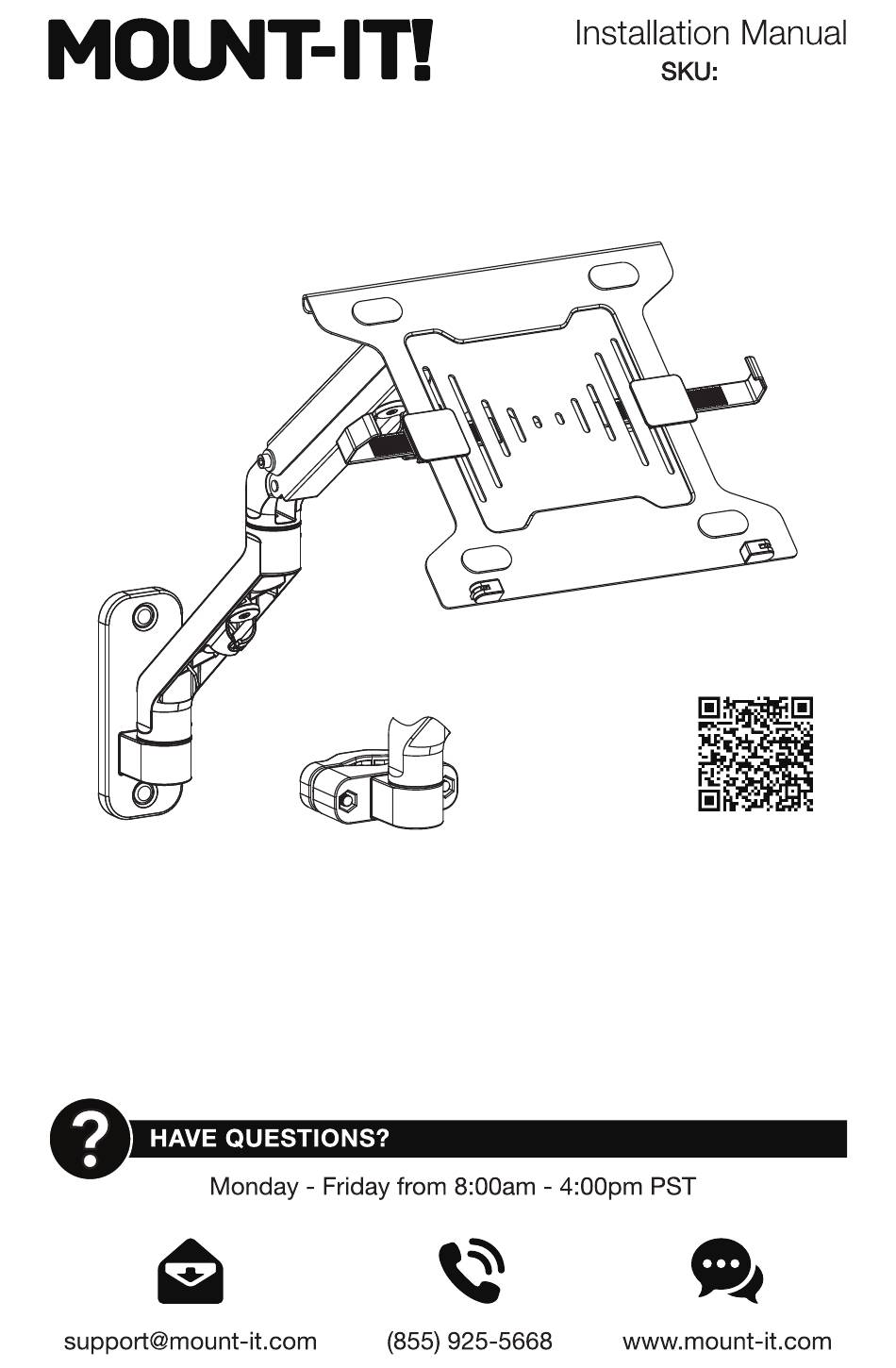

- Page 1 MI-1765LT Please scan this QR code to visit the product page. MONITOR MOUNT WITH WALL MOUNT PLATE, CLAMP AND LAPTOP TRAY...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Wall Mount Decorative Hex Wrench Spring Arm Plate Cover Laptop Tray Pole Clamp Laptop Clamp Clamp Connectors Hex Wrench Alternate Bolt Lag Screw Concrete Anchor Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 B. Concrete/Brick Mounting Option Step 1a-1 A. Wood Stud Mounting Option • Using a bubble level to ensure straightness hold the Wall Mount Plate (#B) to the desired location on the wall and mark the center of the mounting holes with a pencil. •...
- Page 4 Step 2 Step 1a-2 Insert Decorative Covers Attach the Spring Arm to the Mount • Insert the Decorative Covers (#C) into each of the bolt holes. • Place the end of the Spring Arm (#A) onto the end of the Wall Mount or Pole Mount. Tighten the bolt on the back of the Spring Arm to secure the arm to the mount.
- Page 5 Step 3 Step 3a-3 Insert the Laptop Step 3a-1 Attach the Clamps to the Laptop Tray 1. Flip the tab on the Laptop Clamps up to release the sliding arms. 2. Flip the small arms on the front of the Laptop Tray up so that they are perpendicular to the laptop surface.
-
Page 6: Final Adjustments
Step 4 Step 3b-1 Optional Monitor Instructions: Install the Top Bolts to the Monitor Final Adjustments • Select the appropriate size mounting bolt (#M-A, M-B)for your display’s mounting holes and verify the • Cables can be run through the cable management clips on the underside of the spring arm. length of the VESA bolt is not too long.
