CN8, CN9, CN10, and CN11 are female connectors (SMD component devices) compatible with the ARDUINO
standard. Most shields designed for ARDUINO
The ARDUINO
The I/Os of this STM32WBA65RIV7 microcontroller are 5 V tolerant and there are no issues with ARDUINO
compatibility.
The connector provides the PTA signal for Wi‑Fi
The normal MCU I/Os on the ARDUINO
the ARDUINO
UM3462 - Rev 1
®
Uno V3 connector
®
connectors on the Discovery board support the ARDUINO
®
must be programmed in high impedance when using PTA or audio on
®
connector to avoid short circuits on the I/Os.

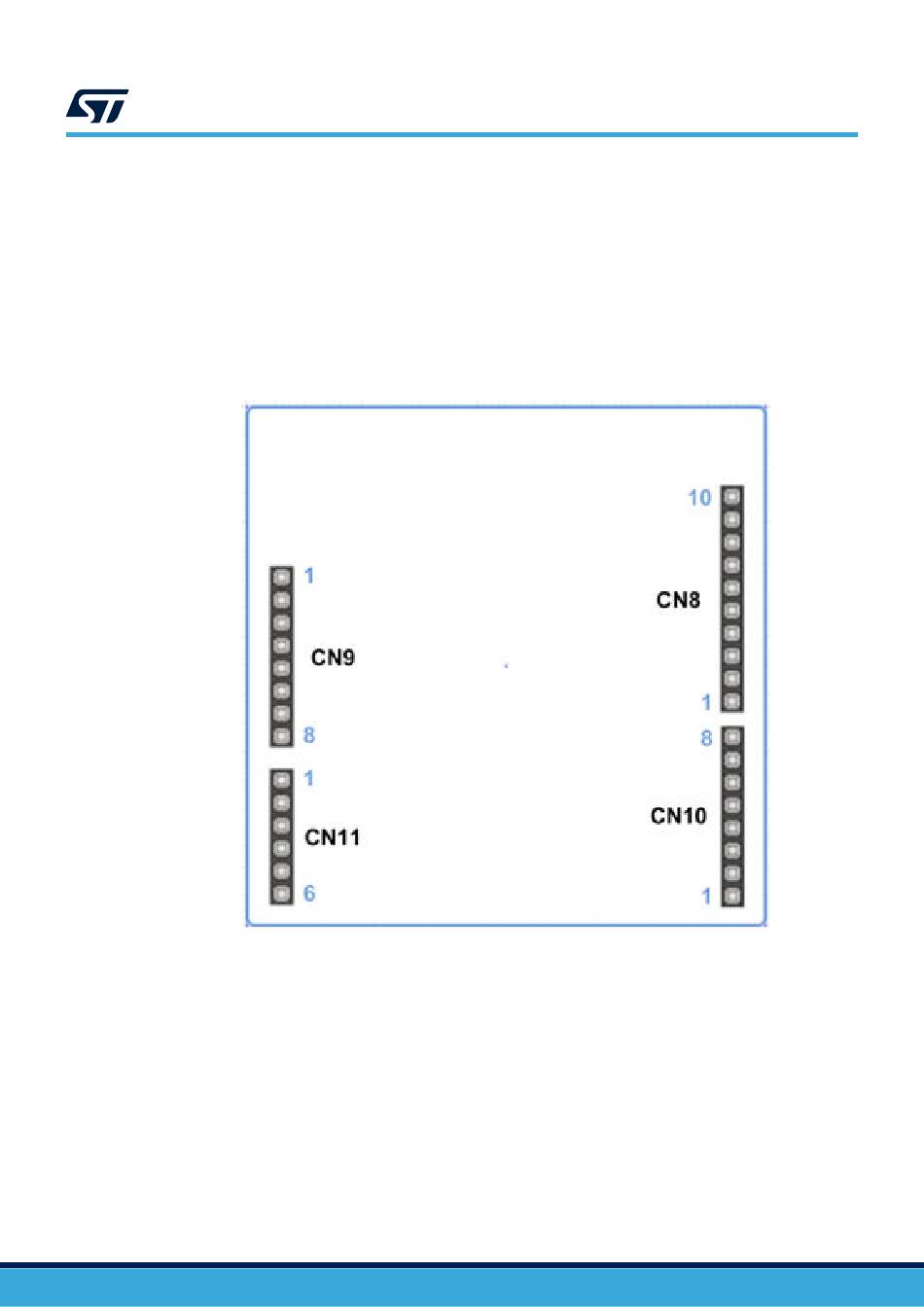

Figure 21. ARDUINO
®
can fit the STM32WBA65I-DK1 Discovery board.
®
®
coexistence and audio for use with DSP.
®
