2. Use an external power supply with current measurement capability. In this case, the jumper (JP2) must be
OFF and the supply must be connected to pin 1 of JP2 (refer to
between 1.8 and 3.3 V. The rest of the board is powered by any other supply on JP4.
Caution: As explained above, the supply voltage VDD must be between 1.8 and 3.3 V.
UM3462 - Rev 1

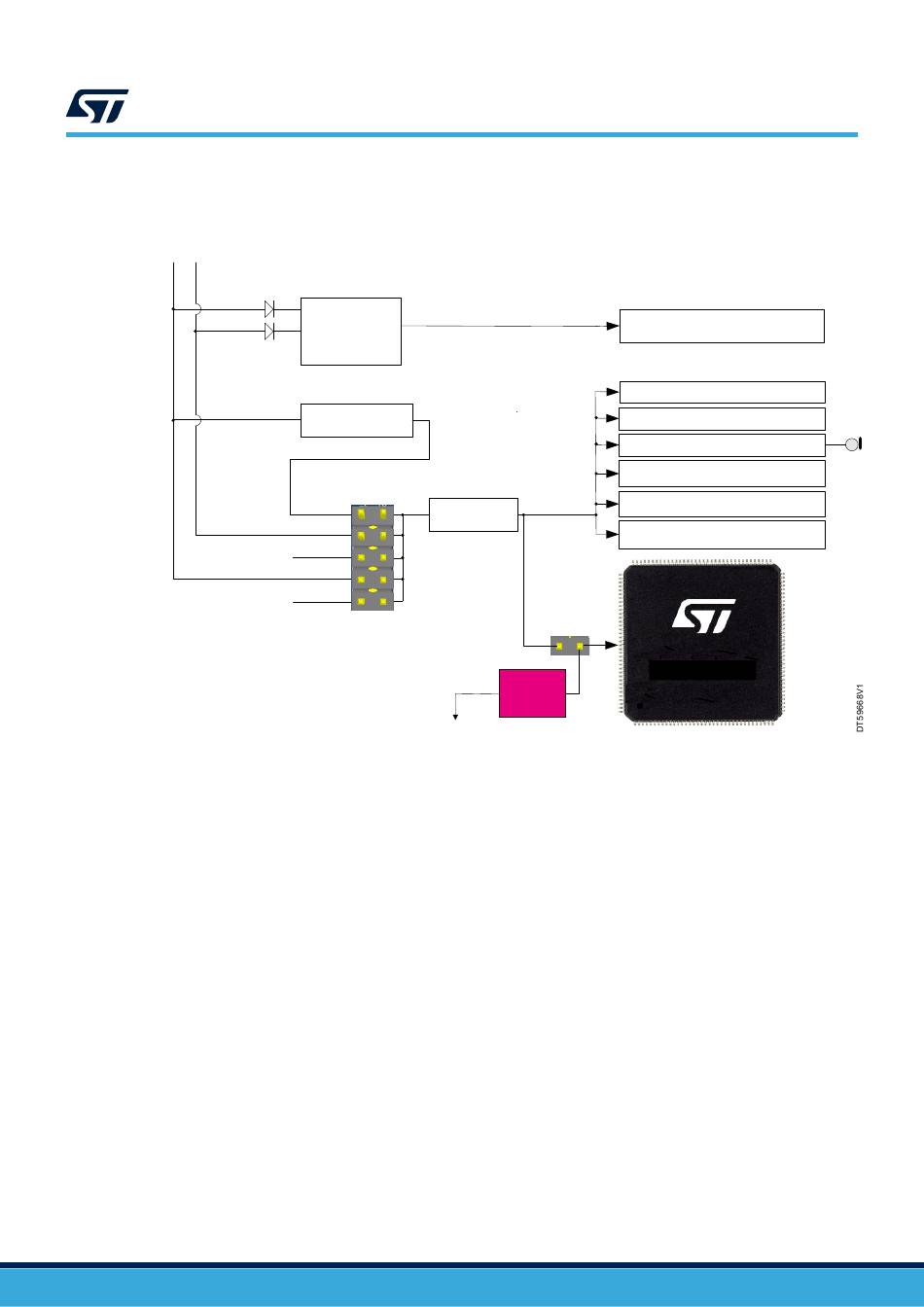

Figure 16. Current measurement with an external power supply
U11
3.3 V LDO
U9
Power switch 5 V/3 A
®
USBC protection
U18
JP4
5V
5V_STLK
3.3 V LDO
5V_VIN
5V_EXT
VBUS_STLK
JP4
5V_USB_MCU
Hardware layout and configuration
Figure 16). The supply voltage must be
3V3_STLK
Grove connector (CN12)
Digital microphone (U21)
3V3
JP2
Ammeter
STM32WBA65RI
External
power
supply
1.8 to 3.3 V
UM3462
ST_LINK/V3EC
Joystick (B1)
OLED (U13)
MIPI10 (CN14)
TAG (CN15)
