7.2.6
Current measurement
The device has low-power features. It can be interesting to measure the current consumed by the
STM32WBA65RI on the discovery board. To do this measurement easily, there are two possibilities:
1. Measure the supply current of the SoC using an ammeter in place of the jumper (JP2). Refer to
below.
UM3462 - Rev 1

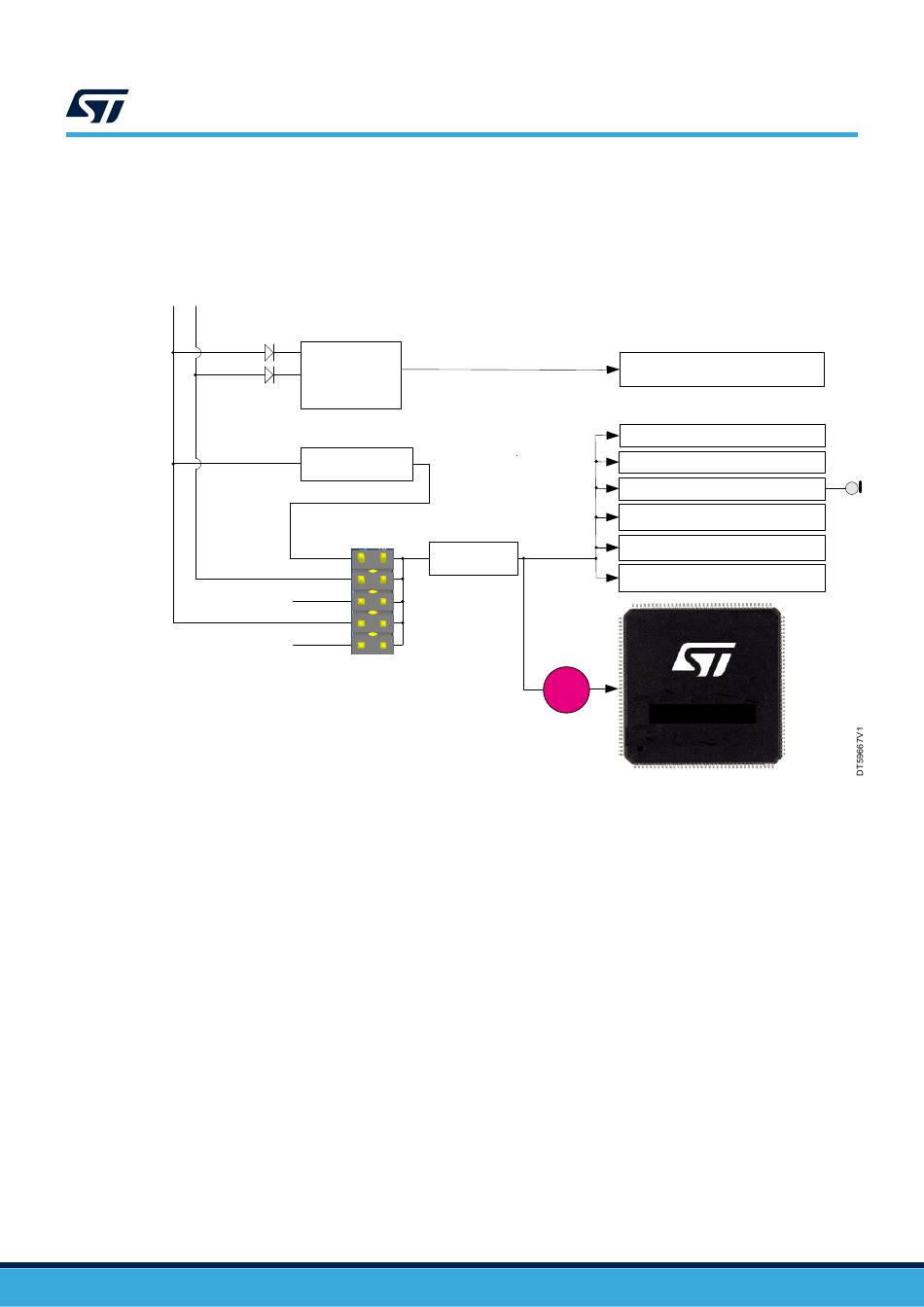

Figure 15.
Current measurement with an ammeter
U11
3.3 V LDO
U9
Power switch 5 V/3 A
USBC
®
protection
U18
JP4
5V
5V_STLK
3.3 V LDO
5V_VIN
5V_EXT
VBUS_STLK
JP4
5V_USB_MCU
Hardware layout and configuration
3V3_STLK
ST_LINK/V3EC
Joystick (B1)
Grove connector (CN12)
Digital microphone (U21)
OLED (U13)
MIPI10 (CN14)
3V3
TAG (CN15)
JP2
+
Ammeter
STM32WBA65RI
UM3462
Figure 15
page 18/43
