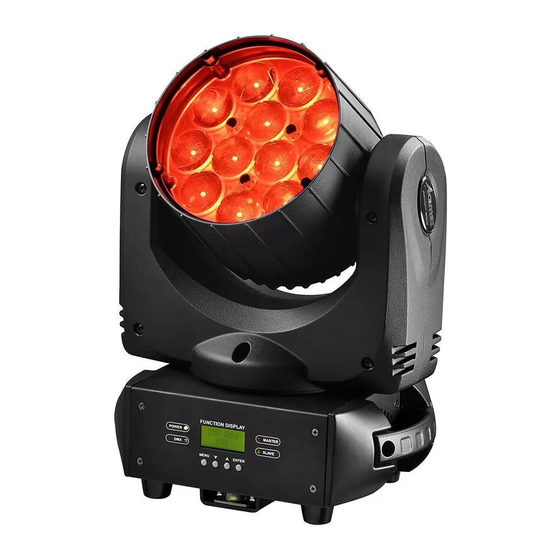

CM-200Z

User Manual

Please read the instruction carefully before using

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pageant CM-200Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME Pageant CM-200Z

Summary of Contents for ACME Pageant CM-200Z

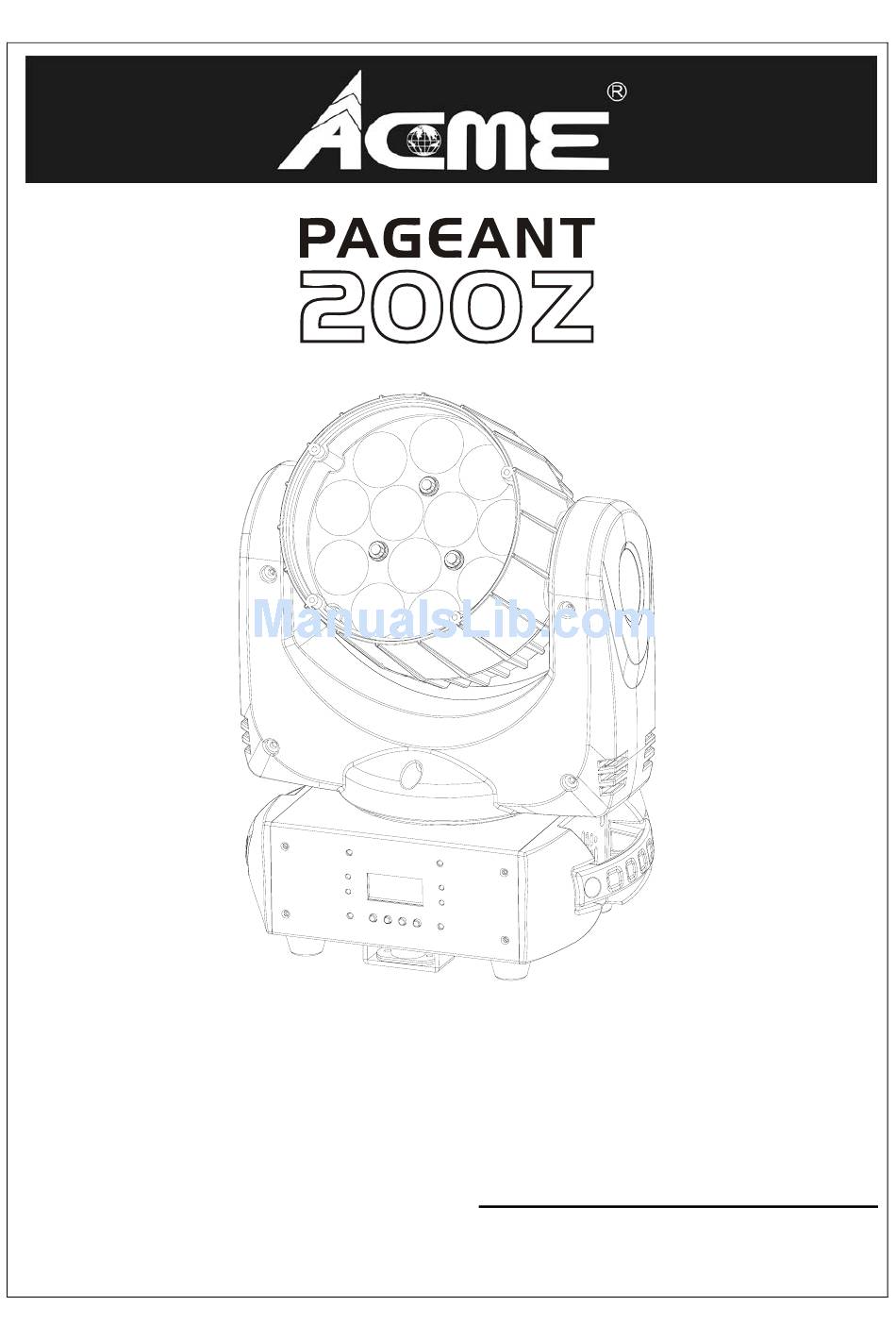

  • Page 1: User Manual

    CM-200Z User Manual Please read the instruction carefully before using...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ..................4 3. How To Set The Unit ..................4 3.1 Control panel....................4 3.2 Main Function...................6 4. Control By Universal DMX Controller ............11 4.1 DMX 512 Connection ................11 4.2 Address Setting..................12 4.3 DMX 512 Configuration................13 5.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Please unpack and check carefully there is no transportation damage before using the unit.
  • Page 4 repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts. DO NOT touch any wire during operation as high voltage might be causing electric shock. Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.

  • Page 5: Technical Specifications

    2. Technical Specifications ◇ Compact design, fast and powerful LED moving beam wash ◇ DMX512 Control with 14 channels mode ◇ Perfect strobe with smooth dimming 0~100% ◇ Outstanding color macro effect ◇ Blue LCD display for easy navigation ◇ Low heat with long life span for fixture and LEDs ◇Ideal for stage, theatre, TV studio, rental and discotheques Input Voltage: AC 100V~240V, 50/60Hz...
  • Page 6 1. Display: To show the various menus and the selected functions LED: 2. POWER Power On 3. DMX DMX input present Button: 4.MENU To select the programming functions 5.DOWN To go backward in the selected functions 6. UP To go forward in the selected functions 7.

  • Page 7: Main Function

    3.2 Main Function To select any of the given functions, press the MENU button up to when the required one is showing on the display. Select the function by the ENTER button and the display will blink. Use the DOWN and UP button to change the mode.

  • Page 9: Dimmer Curve

    DMX Address Select DMX Address, press the ENTER button to confirm, the present address will blink on the display. Use the UP and DOWN button to adjust the address from 1 to 512. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
  • Page 10 Pan Inverse Select Pan Inverse, press the ENTER button to confirm, present mode will blink on the display. Use the DOWN and UP button to select the Yes (pan inversion) or No (normal) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.

  • Page 11: Fixture Time

    Manual Test Select Manual Test, press the ENTER button to confirm, present mode will blink on the display. Use the DOWN and UP button to select the Pan / Tilt / Red / Green / Blue / White /Zoom / Dimmer or Strobe.

  • Page 12: Control By Universal Dmx Controller

    Reset Select Reset, press the ENTER button and all channels of the unit will return to their standard position., 4. Control By Universal DMX Controller 4.1 DMX 512 Connection 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.

  • Page 13: Address Setting

    input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system. 4.

  • Page 14: Dmx 512 Configuration

    4.3 DMX 512 Configuration 14 Channels Mode:...

  • Page 16: Troubleshooting

    5. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.

  • Page 17: Fixture Cleaning

    6. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.

  • Page 19: Declaration Of Conformity

    Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 20 Innovation, Quality, Performance...
