Aseptico AEU-14CF Service Manual

Emergency field dental unit
Hide thumbs Also See for AEU-14CF:
Table of Contents

Advertisement

Quick Links

Download this manual

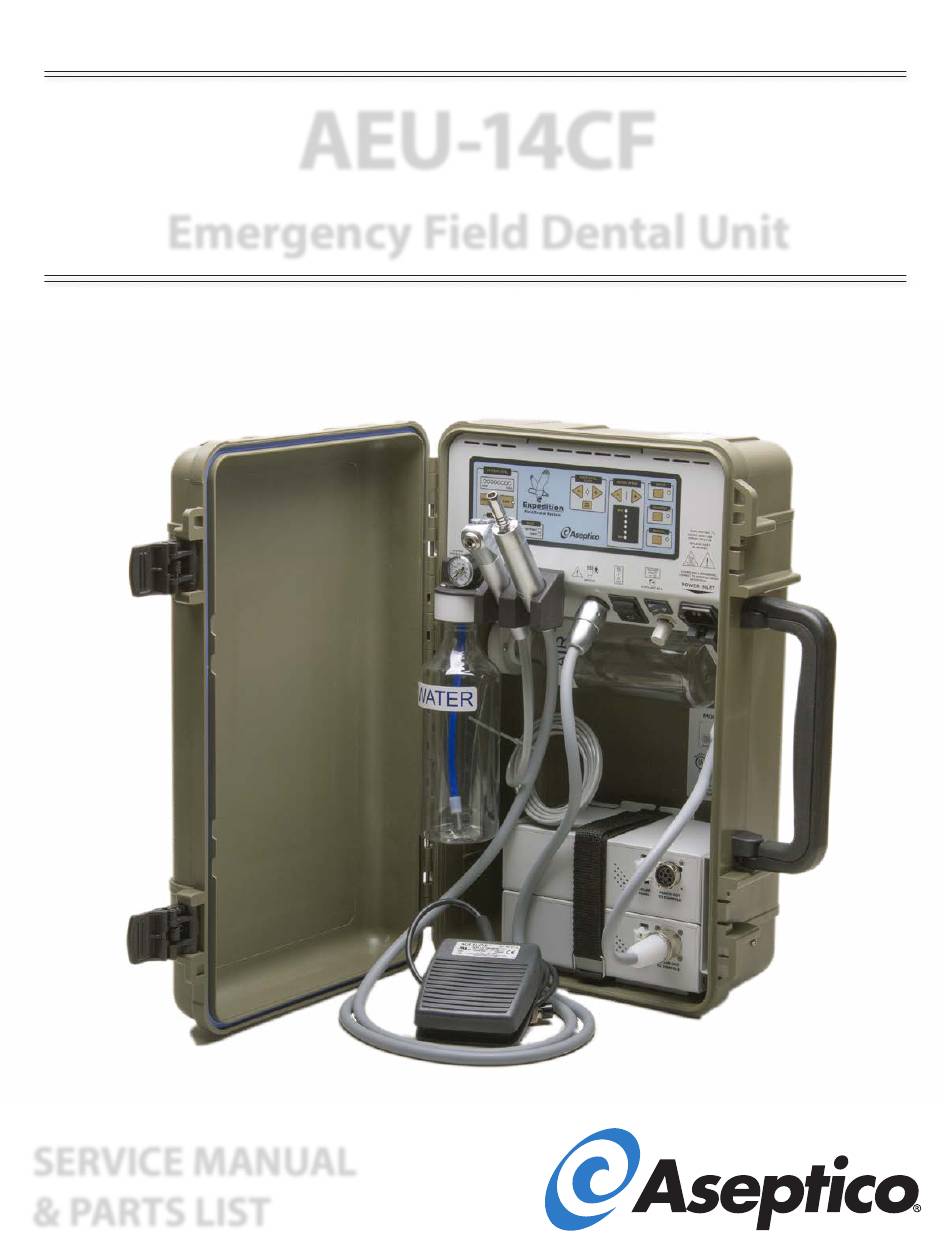

AEU-14CF
Emergency Field Dental Unit
Expedition
SERVICE MANUAL
& PARTS LIST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEU-14CF and is the answer not in the manual?

Questions and answers

Related Manuals for Aseptico AEU-14CF

Summary of Contents for Aseptico AEU-14CF

  • Page 1 AEU-14CF Emergency Field Dental Unit Expedition SERVICE MANUAL & PARTS LIST...

  • Page 2: Table Of Contents

    AEU-14CF Table of Contents GENERAL SERVICE INFORMATION: INSPECTION & VERIFICATION CLEANING AND LUBRICATION: ROUTINE MAINTENANCE: ESD PRECAUTIONS: BASIC DISASSEMBLY: BASIC DISASSEMBLY (Fig. 1): PARTS LISTS SYSTEM COMPONENTS (Fig. 2): CHASSIS REAR (Fig. 3): CHASSIS FRONT (Fig. 4): CHASSIS INTERNALS (Fig. 5): CHASSIS INTERNALS (Fig.

  • Page 3: General Service Information

    This service and parts manual offers information, parts lists and an expanded troubleshooting guide not To verify that the AEU-14CF unit is functioning properly, available in the AEU-14CF Operation and Maintenance first follow the set-up procedure in the Operation &...

  • Page 4: Cleaning And Lubrication

    AEU-14CF CLEANING AND LUBRICATION: ESD PRECAUTIONS: When servicing the AEU-14CF Emergency Field Dental The following electrostatic controls must be used when Unit, the parts of any component disassembled should working on this unit: be thoroughly cleaned and inspected before reassembly.

  • Page 5: Basic Disassembly

    AEU-14CF BASIC DISASSEMBLY: 1. Make sure the unit is turned off and unplugged from all AC and DC power sources. Figure 1 2. Make sure all accessories have been removed from the unit. 3. Stand the unit upright, into its operating position.
  • Page 6 Motor/Cable Assy w/Light & Water AE-200-30 Solar Panel 330863 Label, Mylar Air 420307 Label, Mylar Water 420299 Bottle, 16oz. Pet 730427 Manual, AEU-14CF Operation 420382 Manual, AEU-14CF Service 420417 Manual, Schematic Set 420591 Instruction Sheet, Yellow Paper 420717 Re-Packing Guide 420460...
  • Page 7 M/S Stnls FlaPhl 4-40x3/8 510112 Knob Gry Plastic 1/4D Style II 850012 Valve, Needle Control w/o Knob 730066 CABLE ASSY BATTERY VEHICLE INPUT, AEU-14CF 875200 Battery Pack Input 875199 Wire Set AEU-14 Foot Pedal Con 875042 CABLE ASSY BATTERY SWITCH, AEU-14CF...
  • Page 8 461649 AEU-14 Heatsink 461335 Thermo Heatsink Compound 490007 875205 CABLE ASSY AIR OFF-LOAD SOLENOID TO PCB, AEU-14CF VALVE 3 WAY SOLENOID 24V 50PSI 730474 Valve, 2 Way Normally Closed 730469 Fig 5 - PARTS LIST - Main Internals (Drawing No. 330855)
  • Page 9 Power Inlet w/Fuse Holder 2Amp 2 Pole Line Filtered 840081 Fuse 5x20mm Slo-Blo 1.25A 830126 M/S Stnls FlaPhl 4-40 x 3/8 510112 875200 CABLE ASSY BATTERY VEHICLE INPUT, AEU-14CF #4-40 Nyloc Nuts 510394 Battery Pack Input 875199 #4-40 Nyloc Nuts 510394...
  • Page 10 AEU-14CF Item Part No. T Fitting 1/16 Barbs 730152 Check Valve 730428 Gasket, Nylon #10 730074 Ftn Barb 10-32 x 1/8 Plated 730073 Sleeve Clamp 1/4 730095 Ftn Barb 10-32 x 1/16 Plated 730062 Sleeve Clamp Ftn 1/8ID Clear 730015...
  • Page 11 AEU-14CF Item Part No. Case AEU-14 Expedition 410157-01 Chassis Label 420432-37 UDI/BT1 3x1 Prodyct UD SN Label 420457-00 Battery Pack Assy AEU-14 330365 510605 PANPHL, #6-32 X 1/4, Stnls, Self Sealing Screws (Not Shown) Foot, Case AEU-14 461290 510561 PANPHL, #6-32 X 3/8, Stnls, Self Sealing Screws...

  • Page 12: Troubleshooting

    AEU-14CF TROUBLESHOOTING • Check if battery voltage is too low (<23V). Disconnect battery and confirm voltage is low (pins A to D). An under- voltage battery may be able to be brought above 23V by Chassis does not light when turned on: trickle charging the battery with the console or the solar •...

  • Page 13: Warranty

    Aseptico shall be the sole arbiter of solution. such action. In the event of alleged defect under warranty, the purchaser is to notify Aseptico’s Customer Service department...
  • Page 14 AEU-14CF bulb, unscrew bulb cover from end of motor housing. DEPRESS LOCKING Fig. 9 Insert dental pick or other small pointed instrument into COLLAR guide hole at base of bulb (Fig. 8). Slide bulb forward until disconnected from socket in motor housing. Wipe bulb with clean soft cloth.

  • Page 15: Specifications

    AEU-14CF SPECIFICATIONS NOTES SIZE: 17.5” W x 11.6” D x 7.0” H (44.5 cm W x 29.5 cm D x 17.8 cm H) VOLUME: 0.82 ft (0.23 m WEIGHT: 27 lbs (12.25 kg) POWER SOURCE: AC Dual Voltage 120V/230V @ 50Hz/60Hz 12V/24V vehicle battery 27.6V battery pack (x2)

  • Page 16: 8333 216Th Street S.e., Woodinville, Wa 98072

    8333 216th Street S.E., Woodinville, WA 98072 Phone (425) 487-3157 Web: www.aseptico.com Email: info@aseptico.com P/N 420417 • Rev. K • ECO 16043 • 12/2024 • Printed in the USA...
