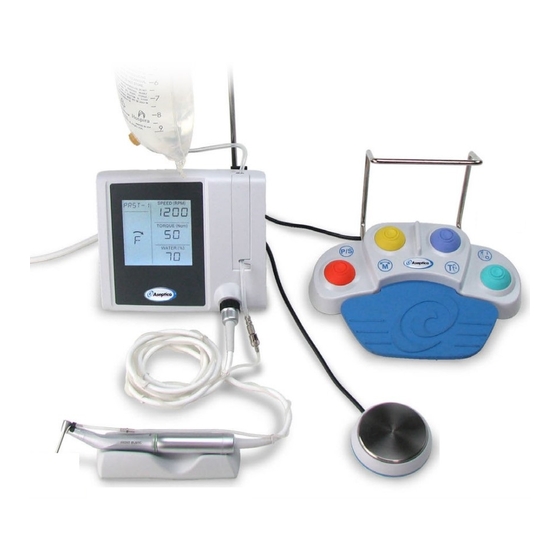

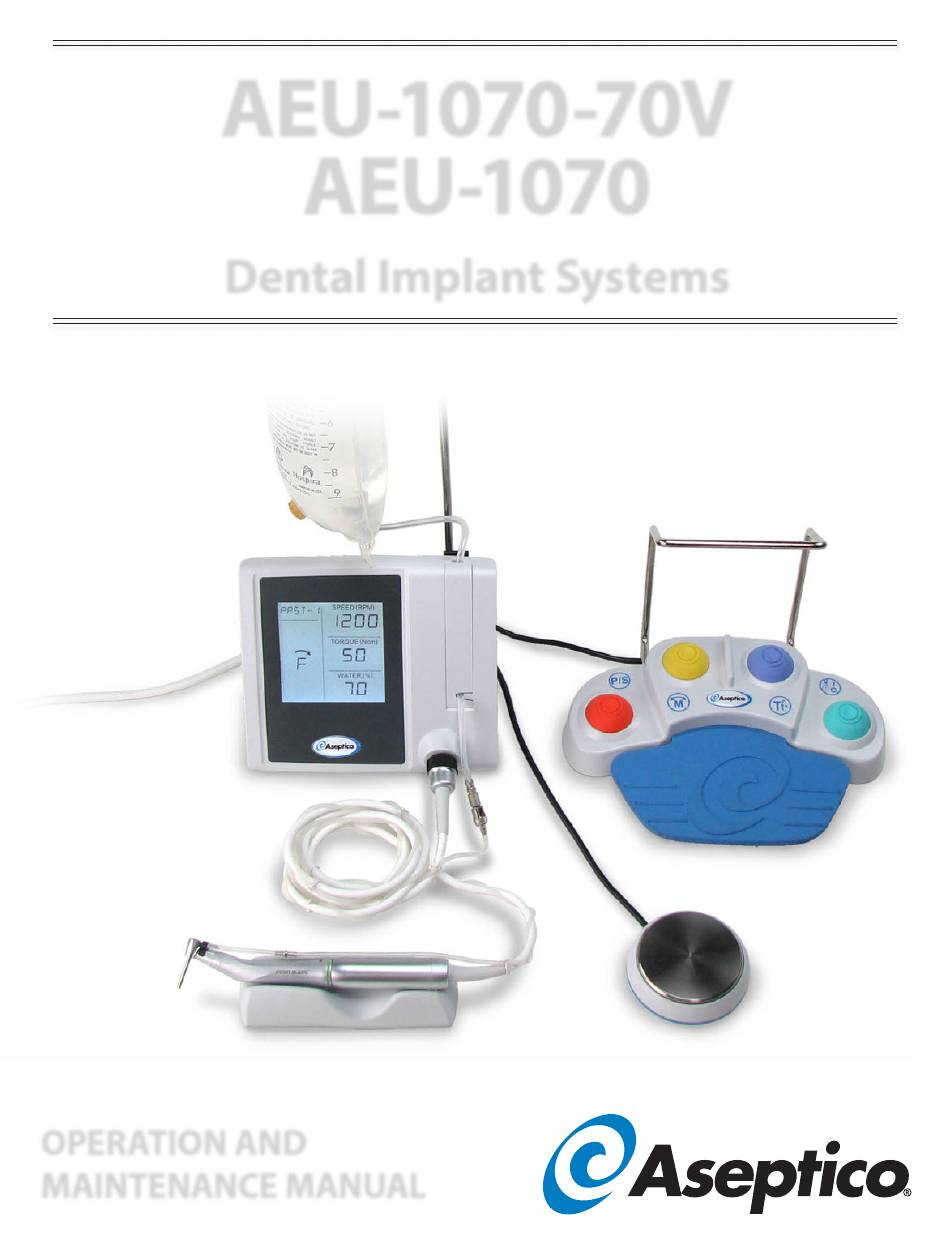

- Page 1 AEU-1070-70V AEU-1070 Dental Implant Systems AE-70V2 (Included with AEU-1070-70V) AE-7PM (Included with AHP-85MB-X* AEU-1070) *Shown with optional equipment purchased separately OPERATION AND MAINTENANCE MANUAL...
- Page 2 AEU-1070-70V / AEU-1070 ! SAFETY PRECAUTIONS Aseptico accepts no liability for direct or consequential injury or dam- s CAUTION: Connect mains power cable to a properly grounded age resulting from improper use, arising in particular through the outlet only. non-observance of the operating instructions, or improper preparation s CAUTION: The motor is sensitive to shock and may be damaged and maintenance of this product.
-
Page 3: Table Of Contents
INTENDED USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Your new Aseptico AEU-1070-70V / AEU-1070 system is one of the finest and most affordable implant motor systems available to the PACKAGE CONTENTS . - Page 4 AEU-1070-70V / AEU-1070 PACKAGE CONTENTS AE-70V2 Foot Controller (AEU-1070-70V only) Power Cord Console AE-7PM Foot Controller (AEU-1070 only) Cradle Irrigation Tubing Set Motor and Cord Spare Peristaltic Tubes Bag Hanger...
-
Page 5: System Setup
AEU-1070-70V / AEU-1070 SYSTEM SETUP Connect the foot controller plug (for either the AE-7PM or AE-70V2 foot controller) to the socket on the back of the This section provides step-by-step instructions for setting up the unit. console. The foot controller plug is “keyed” to the socket and ... - Page 6 AEU-1070-70V / AEU-1070 SYSTEM SETUP (Continued) 10 . Two red arrows on the pump door show the direction to install the irrigation tubing. Start by threading the peristaltic tube segment through the top slot in the pump door. The Place the motor-handpiece onto the cradle ...
- Page 7 AEU-1070-70V / AEU-1070 13 . With one hand, pull the irrigation tube firmly from the bottom 16 . Press the power switch on the rear of the console to the of the pump door . Use the other hand to guide the irriga- on (I) position to turn the unit on.
-
Page 8: Control Panel
AEU-1070-70V / AEU-1070 Press here to open the speed/ratio adjustment screen: CONTROL PANEL • SPEED SETTING: Press the and buttons to adjust the speed setting in the following ranges, according to the This section describes the functions of the touch-screen. -
Page 9: Operation
AEU-1070-70V / AEU-1070 Customizing Presets OPERATION The Preset segment of the screen will flash if you have made any This section explains how to operate the unit using either the AE-70V2 adjustments to the settings of the current preset: or AE-7PM foot controller. -
Page 10: Maintenance And Sterilization
Call Aseptico at 1-800-426-5913 with any questions on sterilization procedures. Handpiece Follow the instructions provided with the handpiece for complete cleaning, maintenance and sterilization instructions. - Page 11 AEU-1070-70V / AEU-1070 STERILIZATION METHODS: Brush off debris from the motor and cord. Thoroughly clean the motor and cord with a moist cloth or Wrapped Sterilization — Place in an appropriately sized steriliza- towel to remove any remaining signs of debris. Avoid pulling tion pouch and seal.
-
Page 12: Messages
Aseptico’s Customer Service Department promptly. Customer Service will provide instructions, usually directing that the product be returned for service. Shipment to Aseptico and the cost thereof is always the responsibility of the purchaser. Accidental misuse, inappropriate installation, or failure to perform directed maintenance voids the warranty. -
Page 13: Fuse Replacement
AEU-1070-70V / AEU-1070 FUSE REPLACEMENT SYMBOL DESCRIPTIONS WARNING Consult Instructions For Use Switch off the power and unplug the unit Type B Equipment before following the steps below. Caution – Consult Accompanying Documents The system features auto-sensing global voltage compatibility. -
Page 14: Specifications
AEU-1070-70V / AEU-1070 SPECIFICATIONS CONSOLE DIMENSIONS: 19.6 cm W x 18.0 cm D x 16.0 cm H (7.72” W x 7.09” D x 6.30” H) CONSOLE WEIGHT: 1.41 kg (3.11 lbs) POWER SOURCE: 100-240V, 50-60Hz CURRENT RATING: 100V/2A, 240V/2A DUTY CYCLE: 16.7% ENVIRONMENTAL CONDITIONS: Operating Temperature: 10°C to 28°C (50°F to 82.4°F) -
Page 15: Custom Presets
AEU-1070-70V / AEU-1070 CUSTOM PRESETS Use the blank tables below to write down your custom preset settings: PRESET DIRECTION SPEED RATIO TORQUE WATER PRST-1 PRST-2 PRST-3 PRST-4 PRST-5 PRST-6 PRST-7 PRST-8 PRESET DIRECTION SPEED RATIO TORQUE WATER PRST-1 PRST-2 PRST-3... - Page 16 P.O. Box 1548, Woodinville, WA 98072 8333 216th Street S.E., Woodinville, WA 98072 Phone (425) 487-3157 • Toll Free (800) 426-5913 Web: www.aseptico.com Email: info@aseptico.com P/N 421116 • Rev. C • ECO 14662 • 02/2019 • Printed in the USA...
