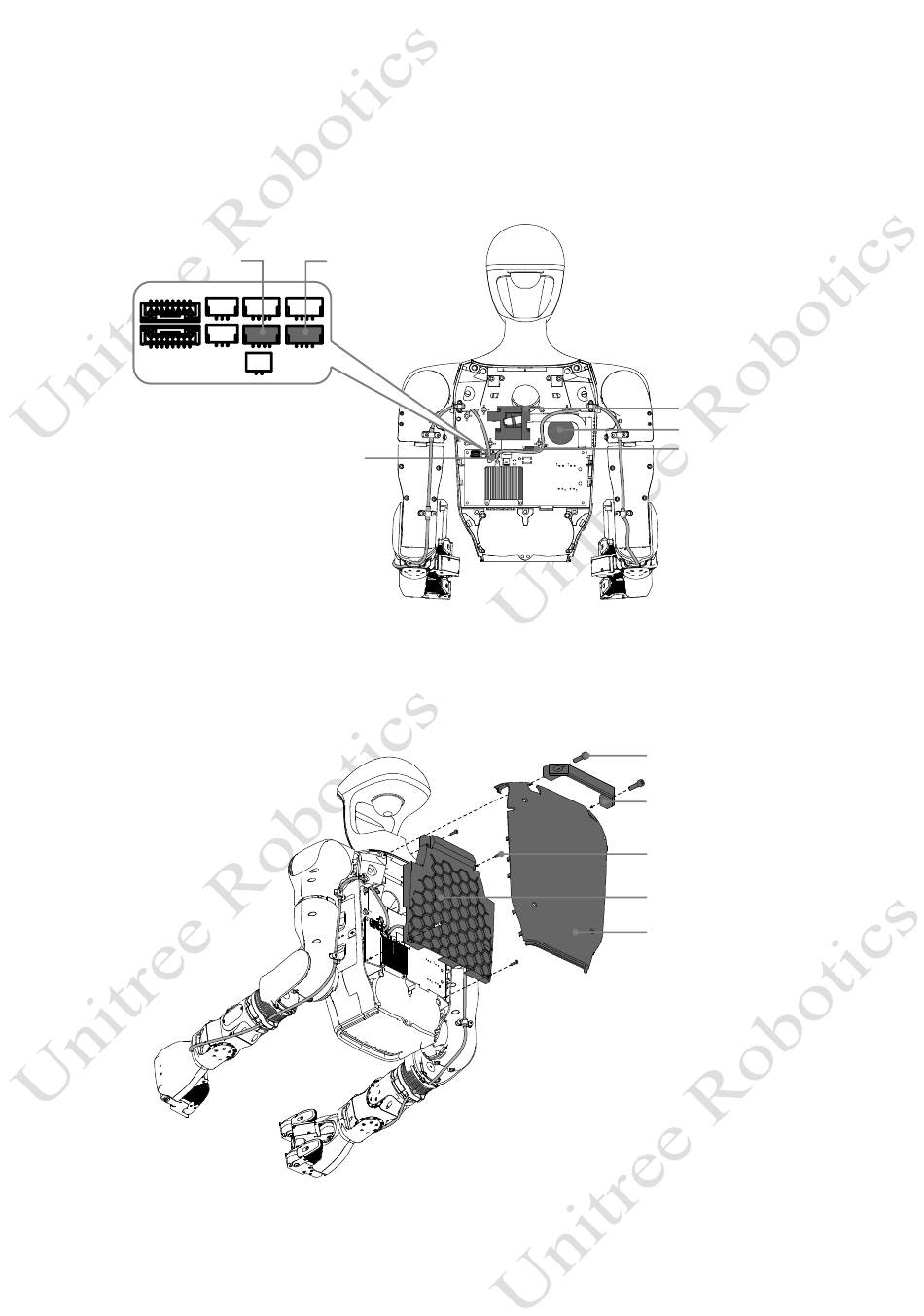

Step4: Connect the back signal connector
Insert the back signal connector tightly. The internal wiring of the fuselage needs to avoid the heat sink
fins, the air inlet of the fan, and the support bars!!!
Left Hand
Signal Connector
Step5: Install the back cover
Place the protective cover and tighten the four M3 screws. Place the back shell (it is snap-on or with
Velcro, please operate carefully).
Right Hand
Heat Sink Fins
Fan Air Inlet
Support Bars
M6 Screw *2
Handle
M3 Screw *4
Protective Cover
Back Cover
© 2024 All rights reserved, Unitree Robotics
6
