USB-2405
Getting Started
Check Product Package
Install USB-2405 driver
& utility (U-Test)
Connect USB-2405
to USB 2.0/3.0 port
Perform quick test
Package Contents
Your package should contain:
• USB-2405
• Stand
• USB cable (2m)
P/N 50-40230-5000

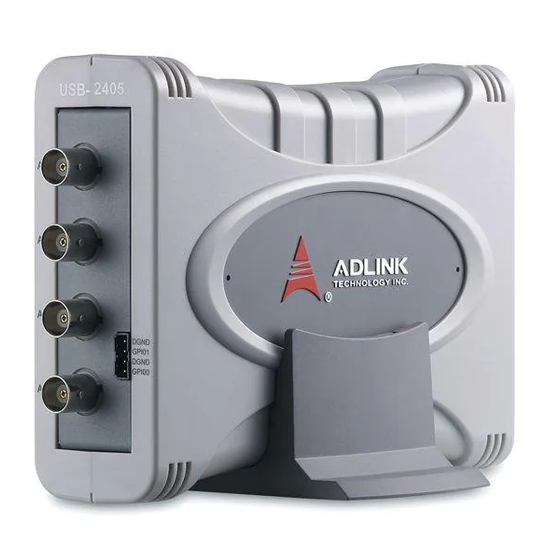

4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module
(UD-DASK)
with U-Test
utility
• Rail mount kit
• ADLINK All-in-One CD
• Quick Start Guide
(this document)
Quick Start Guide
USB-2405
Features
• Hi-Speed USB 2.0
• USB bus powered
• 24-bit Sigma-Delta ADC with
built-in anti-aliasing filter
• 4-CH simultaneous sampling
analog input, up to 128kS/s
• AC or DC input coupling,
software selectable
Installing the Driver
1. Download the latest UD-DASK driver & U-Test from:
http://www.adlinktech.com/
and run.
2. Follow the installation instructions
Rev. 2.00
• Analog or digital triggering
• Supports 2mA excitation output on
each analog input channel for
IEPE sensor measurement
• Full auto-calibration
• Ready-to-use testing application
(U-Test) provided
Aug. 23, 2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADLINK Technology USB-2405
Summary of Contents for ADLINK Technology USB-2405

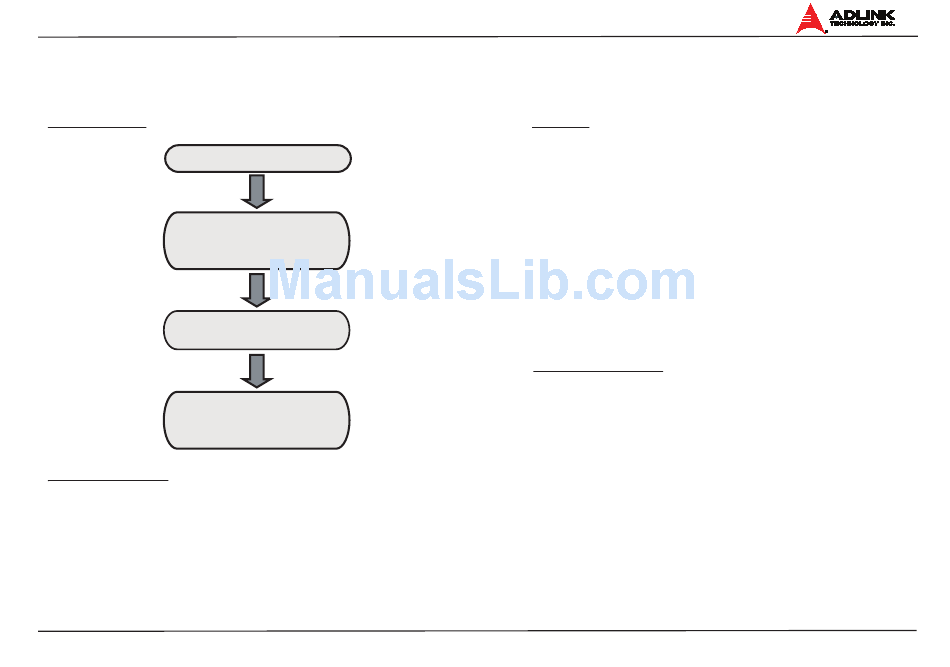

- Page 1 • Supports 2mA excitation output on each analog input channel for • 24-bit Sigma-Delta ADC with IEPE sensor measurement built-in anti-aliasing filter Install USB-2405 driver • Full auto-calibration (UD-DASK) • 4-CH simultaneous sampling analog input, up to 128kS/s & utility (U-Test) •...
- Page 2 Connecting the USB-2405 1. Connect the USB-2405 module to one USB 2.0 or 3.0 port on the computer using the included USB cable 2. The first time the USB-2405 module is connected, a New Hardware message appears.
