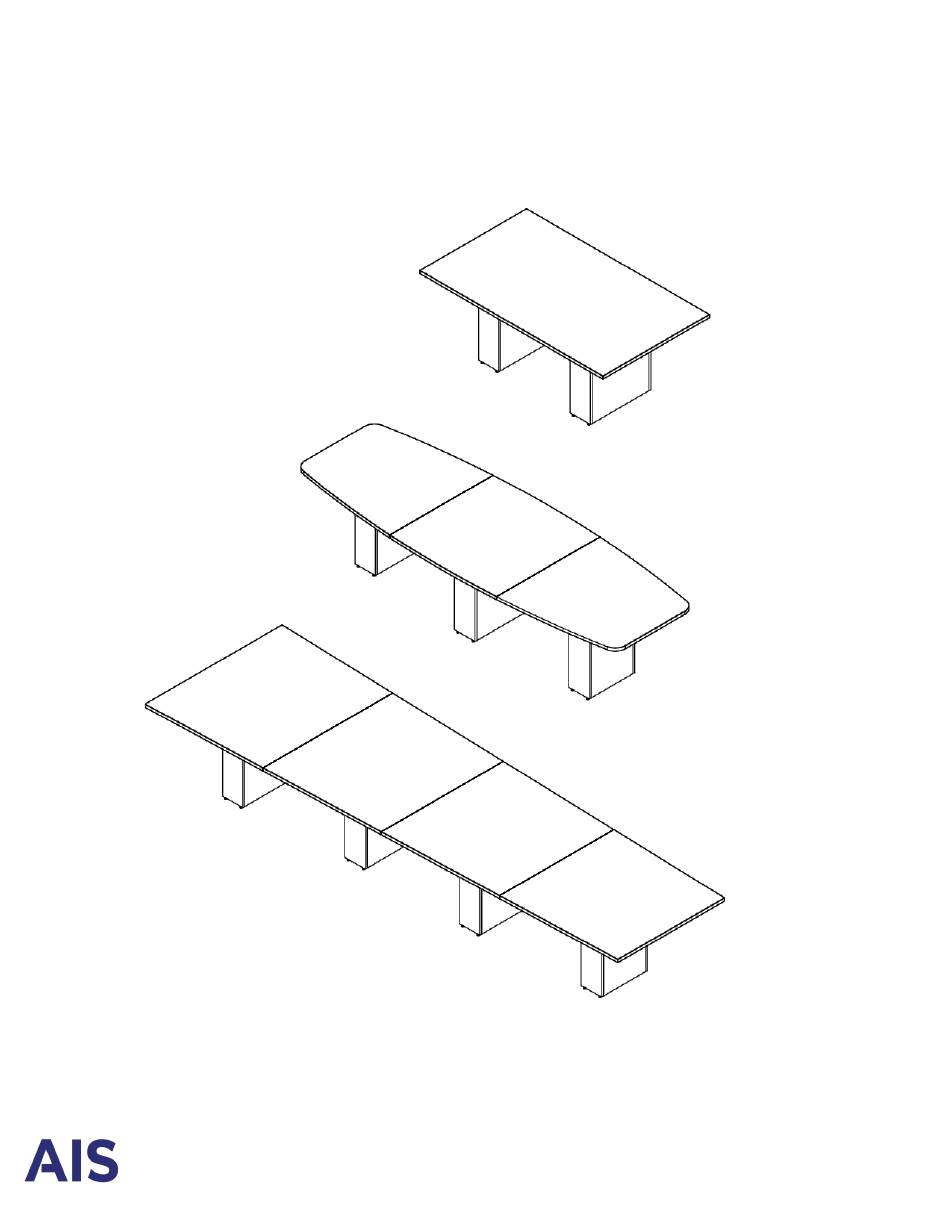

- Page 1 Calibrate Conference Tables C-CCTINSTALL Revision 03.19.2025 www.ais-inc.com...
- Page 2 Calibrate Conference Tables Revision Log Date Page No. Description of change Name 6/22/2018 1-10 Released S. Powers 7/26/2018 Added flat plate installation S. Powers 12/10/18 Added AIS Power Unit S. Powers 4/10/19 Updated views to showing cable clearance S. Powers...
- Page 3 Calibrate Conference Tables Trough Installation Worksurface L-Bracket (4) Per base #OX-LB Base Trough See chart for See chart for size and qty size and qty Trough Secure (4) L-Brackets to Base using (2) Flat head wood screws #9 x 7/8 long...
- Page 4 Calibrate Conference Tables Counter Weights Stack Counterweights Pivot or remove panel as required. See Chart. as necessary. 4.25 4.84 C-CCTINSTALL Revision 03.19.2025 www.ais-inc.com...
- Page 5 Calibrate Conference Tables 2 Base Tables Dist A Base Depth Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Length Length Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base Qty...
- Page 6 Calibrate Conference Tables 3 Base Tables Dist A Base Depth Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Length Length Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base Qty...
- Page 7 Calibrate Conference Tables 3 Base Tables Cont’d Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base Qty...
- Page 8 Calibrate Conference Tables 4 Base Tables Trough A Trough B Dist A Base Depth Trough B Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Length Length Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base Qty...
- Page 9 Calibrate Conference Tables 4 Base Tables Cont’d Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base Qty...
- Page 10 Calibrate Conference Tables 5 Base Tables Dist A Base Depth Trough B Trough A Trough B Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Length Length Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base 5 Base Qty...
- Page 11 Calibrate Conference Tables 5 Base Tables Cont’d Worksurface Size Base Depth Total # Trough Trough Trough Trough Support A Support A Support B Support B Counter Length Length Image Depth 1 Depth Mid Depth 2 Width 1 Base 1 Base 2 Base 3 Base 4 Base 5 Base Qty...
- Page 12 Calibrate Conference Tables Flat Plate 3” Flat Plate 3” 3 places per seam #9 x 7/8 long Flat head wood screws #2 Phillips drive Leave 4 holes empty for future or adjustments Tight seam with Quick Grips • First install 2 screws to one worksurface OFFSET SCREW •...
- Page 13 Calibrate Conference Tables Cove Power Installation 1. Install the Power Unit into the Box. 3a. Secure the Box to the worksurface using (4) #6 x 1” long flat head wood screw. 3b. Break tabs off box. Break tabs 4. Install Cover. Confirm preferred orientation with client prior to installing.
- Page 14 Calibrate Conference Tables Domino Power Installation 1. Install the Power Unit into the Box using (2) 3a. Secure the Box to the worksurface using M3 x 12mm flat head screws. (4) #6 x 1” long flat head wood screw. 3b. Break tabs off box.
- Page 15 Calibrate Conference Tables Daisy Chain Multiple Power Units 10’ Integrated 10’ Integrated Power Unit Cord Cord Power Unit 10’ Infeed Disconnecting Domino jumpers and infeed: • Make sure to unplug the power cord from the power source before disconnecting the jumpers and infeed.
- Page 16 Calibrate Conference Tables Plug-in Daisy Chain Power Units 2 Base Table – 1 Power Units 2 Base Table – 2 Power Units Plug-in Daisy Chain Plug-in Daisy Chain Floor Core Floor Core Can be located under Can be located under...
- Page 17 Calibrate Conference Tables Plug-in Daisy Chain Power Units 3 Base Table – 2 Power Units 3 Base Table – 3 Power Units Plug-in Daisy Chain Plug-in Daisy Chain Floor Core Floor Core Can be located under Can be located under...
- Page 18 Calibrate Conference Tables Plug-in Daisy Chain Power Units 4 Base Table – 2 Power Units 4 Base Table – 4 Power Units Plug-in Daisy Chain Plug-in Daisy Chain Floor Core Floor Core Can be located under Can be located under...
- Page 19 Calibrate Conference Tables Plug-in Daisy Chain Power Units 5 Base Table – 5 Power Units Plug-in Daisy Chain Floor Core Can be located under any base Power Unit w/ 10’ cord Infeed 10’ Cord Connect each power unit into hub Infeed w/ 10’...
- Page 20 Calibrate Conference Tables Hardwired Power Units 2 Power Units 1 Power Unit Hardwired Hardwired Infeed 10’ Cord Infeed 10’ Cord Floor core must be 10’ Floor core must be 10’ from power unit. from power unit. Power Unit Infeed 10’ Cord Female-Female Cable C-CCTINSTALL Revision 03.19.2025...
- Page 21 Calibrate Conference Tables Hardwired Power Units 3 Base Table 3 Base Table 2 Power Units 3 Power Units Hardwired Hardwired Infeed 10’ Cord Infeed 10’ Cord Floor core must be 10’ Floor core must be 10’ from last power unit.
- Page 22 Calibrate Conference Tables Hardwired Power Units Infeed 10’ Cord 4 Base Table - 2 Power Units with Hardwired T Jumper Kit Floor Core cannot be more Power Unit than 10’ from the Hardwired T-Connector Infeed 10’ Cord Female-Female Cable Hardwired T-Jumper Kit.
- Page 23 Calibrate Conference Tables Hardwired Power Units 4 Base Table – 4 Power Units 4 Base Table – 4 Power Units with Hardwired T Jumper Kit Hardwired Infeed must be at one end of the power run. Floor core must be located within 10’...
- Page 24 Calibrate Conference Tables Hardwired Power Units 5 Base Table – 3 Power Units 5 Base Table – 3 Power Units with Hardwired T Jumper Kit Infeed 10’ Cord Hardwired Infeed must be at one end of the power run. Floor core must be located within 10’...
- Page 25 Calibrate Conference Tables Hardwired Power Units 5 Base Table – 5 Power Units 5 Base Table – 5 Power Units with Hardwired T Jumper Kit Hardwired Infeed 10’ Cord Infeed must be at one end of the power run. Floor core must be located within 10’...
