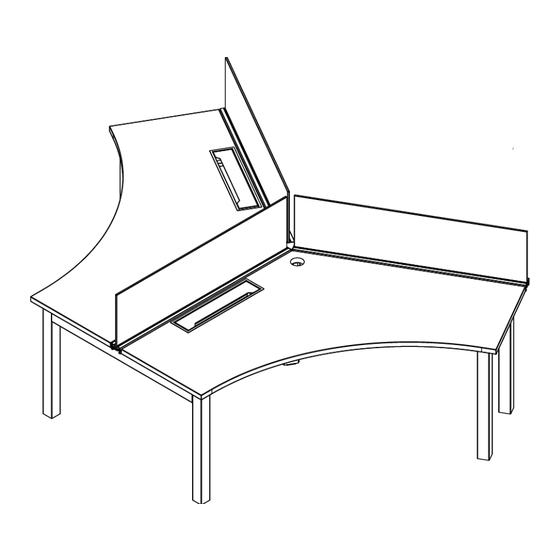

OXYGEN 120 INSTALLATION
12345
P-INSTRUCTOX120 Revision 11/20/2017
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OXYGEN 120 and is the answer not in the manual?

Questions and answers

Related Manuals for AIS OXYGEN 120

Summary of Contents for AIS OXYGEN 120

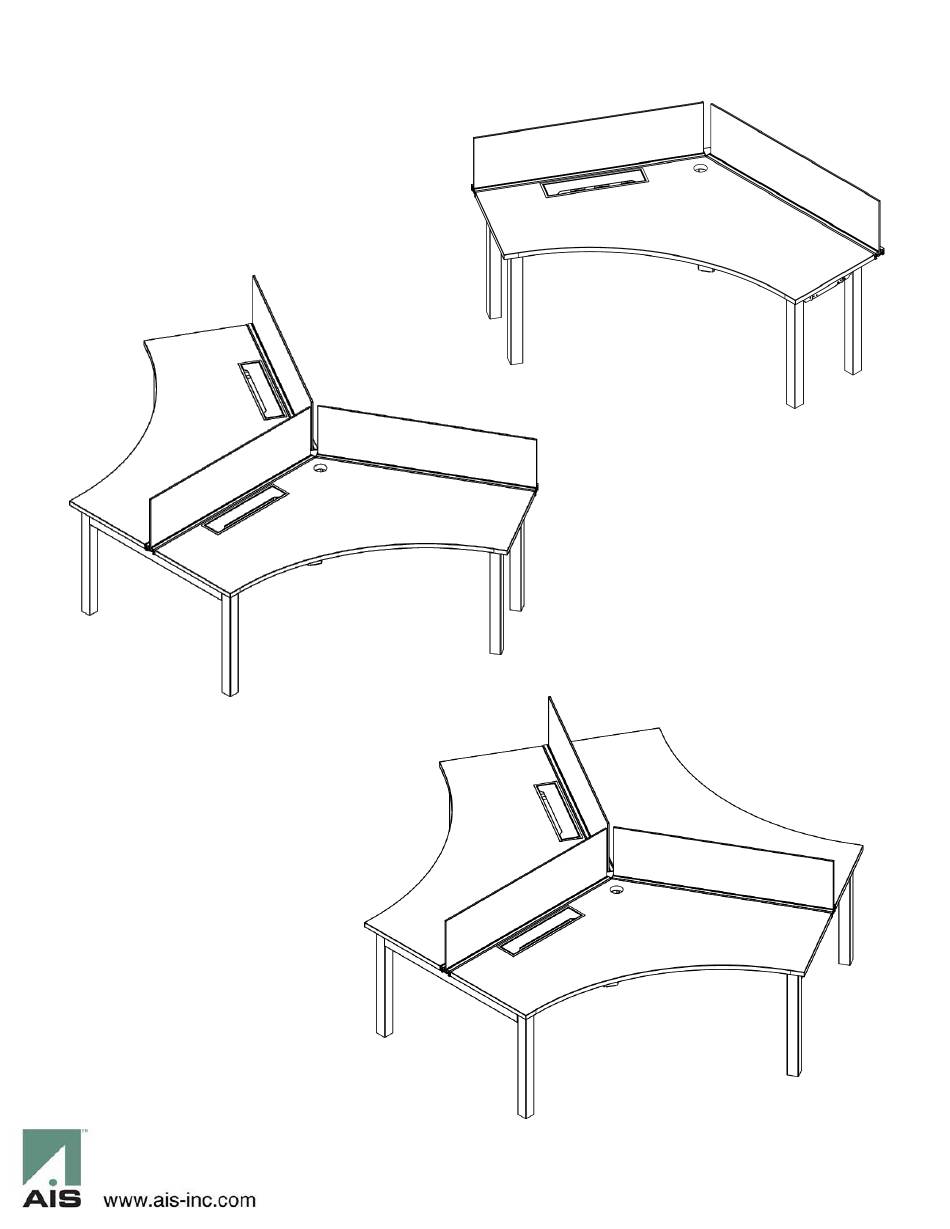

  • Page 1 OXYGEN 120 INSTALLATION 12345 P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 2 OXYGEN 120 INSTALLATION Hardware List 12345 Flat head wood screw #9 x 7/8 long with #2 Phillips drive, silver Used to attach surfaces and end panels Hex set screw ½-13 x 2” long with 1/4” hex drive, black Used on Legs Hex cap machine screw ¼-20 x 5/8”...
  • Page 3 OXYGEN 120 INSTALLATION Revision Log 12345 Date Page No. Description of change Name 11/20/17 1-43 Originated S. Powers P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 4 OXYGEN 120 INSTALLATION End Leg Assembly 12345 Straight Leg Assembly ¼-20 x 2.75L hex cap screw and nut 6 places. Tighten fully. Note: Place screw heads on OUTSIDE of bench. Spine Beam Mount Twist Plate Rail Mount ¼-20 x 5/8”L hex cap...
  • Page 5 OXYGEN 120 INSTALLATION Shared Leg Assembly 12345 End Leg Assembly (See page 4) Shared Leg Assembly Mirror parts on End Leg Assembly Note: Use the same ¼-20 x 2.75L Hex Cap Bolt and Nut to hold on both parts. P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 6 OXYGEN 120 INSTALLATION Single Sided Bench Leg 12345 Assembly ¼-20 x 2.75L Note: Place screw heads hex cap screw and nut on OUTSIDE of bench. 2 places. Tighten fully. Rail Mount Single bench leg horizontal 24 or 30. LEFT END SINGLE...
  • Page 7 OXYGEN 120 INSTALLATION Single Sided Bench Leg 12345 Assemblies Single Bench Spine Beam Support Right Single Bench Spine Beam Support Left Shared Leg (mirror components) End Leg Right End Leg Left P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 8 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Single Bench Twist Plate 2 places Oxygen 120 Single Bench Center Leg Bracket ¼-20 x 5/8” long Hex Cap Screw 4 places, leave loose Single Bench Top Cap #8-32 x 3/8” long Pan Head Screw...
  • Page 9 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Single Bench Cantilever ¼-20 x 5/16” long Hex Cap Screw 2 places Center Leg #8 x 3/8” long Pan Head Drill Point Screw 2 places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 10 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Single Bench Oxygen 120 Post Cover Remove adhesive tape backing and fix post cover Glide Housing firmly to leg. 3 places Firmly insert into post using a soft mallet Glide P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 11 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Double Bench Twist Plate 3 places Oxygen 120 Double Bench Center Leg Bracket ¼-20 x 5/8” long Hex Cap Screw 6 places, leave loose Double Bench Top Cap #8-32 x 3/8” long Pan Head Screw...
  • Page 12 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Double Bench Cantilever 2 places ¼-20 x 5/16” long Hex Cap Screw 4 places Center Leg #8 x 3/8” long Pan Head Drill Point Screw 4 places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 13 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Double Bench Oxygen 120 Post Cover Remove adhesive tape backing and fix post cover firmly to leg. 3 places Glide Housing Firmly insert into post using a soft mallet Glide P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 14 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Triple Bench Twist Plate 3 places Oxygen 120 Triple Bench Center Leg Bracket ¼-20 x 5/8” long Hex Cap Screw 6 places, leave loose Single Bench Top Cap #8-32 x 3/8” long Pan Head Screw...
  • Page 15 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Triple Bench Cantilever 3 places ¼-20 x 5/16” long Hex Cap Screw 6 places Center Leg #8 x 3/8” long Pan Head Drill Point Screw 6 places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 16 OXYGEN 120 INSTALLATION Center Leg Assembly 12345 Triple Bench Oxygen 120 Post Cover Remove adhesive tape backing and fix post cover firmly to leg. 3 places Glide Housing Firmly insert into post using a soft mallet Glide P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 17 OXYGEN 120 INSTALLATION Outlet & Powerway Cover 12345 Installation Outlet port locations 48w – 96w Powered Spine Beam Assembly (Shown on floor upside down) Outlet port locations 10-24 x 5/8” Pan Head Machine Screw with thread cutting tip, 1 per...
  • Page 18 OXYGEN 120 INSTALLATION Wire Basket Installation 12345 Twist plate Center wire basket left to right on spine beam. ¼-20 x 5/8”L hex cap screw 4 places. Tighten fully. Note: Wire baskets for 36w and 42w spine beams are made up of (2) 12” sections or (2) 15”...
  • Page 19 OXYGEN 120 INSTALLATION Single Bench 12345 Spine Assembly Single Bench Spine Assembly 2 places Single Sided Bench Center Leg Single Sided Bench End Single Sided Left Leg Bench End Right Leg 1.25 ¼-20 x 5/8” long Hex Cap Screws. Twist plate Tighten fully.
  • Page 20 OXYGEN 120 INSTALLATION Double Bench 12345 Spine Assembly Single Bench Spine Assembly 3 places Double Sided Bench End Left Leg Single Sided Bench End Right Leg Single Sided Single Sided Bench Center Leg Bench End Left Leg ¼-20 x 5/8” long Twist plate 1.25...
  • Page 21 OXYGEN 120 INSTALLATION Triple Bench 12345 Spine Assembly Single Bench Spine Assembly Double Sided 3 places Bench End Leg 3 places Triple Bench Center Leg ¼-20 x 5/8” long Hex Cap Screws. Tighten fully. Twist plate 1.25 6 places End Condition...
  • Page 22 OXYGEN 120 INSTALLATION Jumper Installation 12345 Locking clip on powerway MUST be present and engaged behind wedges on jumper. P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 23 OXYGEN 120 INSTALLATION Bench Top Installation 12345 Center of leg plate Important: This spacing varies between leg type. DO NOT use for top placement. Always center top on spine beam as Metal tab prevents surface indicated. from touching spine beam to facilitate clamp on elements.
  • Page 24 OXYGEN 120 INSTALLATION Access Box Door Installation 12345 Access Box Trim Ring Rubber gaskets on short sides indicates BACK Rubber gaskets on long side indicates FRONT View from below surface Access Box Retainer 8-32 x .75L Thread Cutting Flat Head...
  • Page 25 OXYGEN 120 INSTALLATION Access Box Base Installation 12345 Center box left to right, align front edge with front edge of access hole #9 x 7/8ths flat head Phillips 4 places Single Gang Adapter Single Gang Device Plate 6-32 Machine Screw...
  • Page 26 OXYGEN 120 INSTALLATION Modesty Panel 12345 Single Bench Modesty Cover Modesty Panel #9 x 7/8” flat head Phillips Modesty Bracket 8 places 2 places ¼-20 x 5/8 inch Hex Cap Bolt #9 x 7/8” flat head Phillips P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 27 OXYGEN 120 INSTALLATION Modesty Panel 12345 Double Bench Modesty Panel Top Modesty Bracket 2 places ¼-20 x 5/8 inch Hex Cap Bolt #9 x 7/8” flat head Phillips Lower Modesy Bracket P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 28 OXYGEN 120 INSTALLATION Glass Spine Screen 12345 Clear Polycarbonate 2” Compression Strip (Insert between Glass and Set Screw) ¼-28 x 1/4th Glass Set Screws 3 places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 29 OXYGEN 120 INSTALLATION Fabric Spine Screen 12345 #10-32 x 1/2” Flat Head Phillips 4 places ¼-28 x 5/16” Set Screws 4 places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 30 OXYGEN 120 INSTALLATION Spine Beam Covers 12345 Spine Beam Cover P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 31 OXYGEN 120 INSTALLATION Territory Screen 12345 Assembly Center Screen Assembly #10-32 x .5 inch Flat Head Machine Screw 4 Places Handed Screen Assembly (Right Hand Shown) #10-32 x .5 inch Flat Head Machine Screw 4 Places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 32 OXYGEN 120 INSTALLATION 12345 Glass Territory Screen Assembly Center Glass Screen Rail Assembly Bracket #OX-SLSCBM Bracket #OX-SLSCFM #10-32 x 5/16” Flat Head Machine Screw 4 Places Handed Glass Screen Rail Assembly (Right Hand Shown) • Screw must not protrude beyond inner rail surface...
  • Page 33 Glass Territory Screen OXYGEN 120 INSTALLATION 12345 Assembly Glass Territory Screen Installation • Insert polycarbonate spacers (3 places) down in between glass screen and rail so that the spacer is located on the side directly behind the set screw holes.
  • Page 34 OXYGEN 120 INSTALLATION 12345 Glass Territory Screen Assembly End Cap Installation • Tap gently using soft mallet until end cap is properly seated. DO NOT break tabs. • If necessary, shave excess paint on tabs End Cap to insure end cap is (2 places) properly seated.
  • Page 35 OXYGEN 120 INSTALLATION Center Mount Screen Install 12345 (same for glass or framed) Bracket #OX-SLSBMB (2 places) ¼-20 x 5/16 inch Hex Cap screw 4 Places #9 x 7/8 inch Flat Head 6 Places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 36 OXYGEN 120 INSTALLATION Left or Right Screen Install 12345 (same for glass or framed) ¼-20 x 5/16 inch Hex Cap Screw 2 Places #9 x 7/8 inch Flat Head 4 Places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 37 OXYGEN 120 INSTALLATION End Leg Cover 12345 #9 Flathead Phillips long 4 Places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 38 OXYGEN 120 INSTALLATION Double Bench 12345 Power Pole Installation Do not install beam endcap Flush with bench top Align edge with back of bench top #9 flathead Phillips long 6 Places Plumb pole, rest bottom on floor 8-32 x 5/16” pan head...
  • Page 39 OXYGEN 120 INSTALLATION Single Bench 12345 Power Pole Installation 8-32 x ¼ inch pan head machine screws and acorn nuts 3 places #9 flathead Phillips long 5 Places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 40 OXYGEN 120 INSTALLATION Power pole coupler 12345 and cover #8-32 x 3/8 inch pan head Phillips thread rolling screw 4 places P-INSTRUCTOX120 Revision 11/20/2017...
  • Page 41 OXYGEN 120 INSTALLATION Base Feed Vertical Wire 12345 Manager Floor Junction 3/8-16 Panel Glide and Carpet Gripper Level Wire Wire Manager Manager Cover 4 inch Wire Tie 6’ base feed hardwired by electrician to floor box Locking clip on powerway...
  • Page 42 OXYGEN 120 INSTALLATION Endcap Worksurface 12345 Reuse from leg assembly Hex cap head ¼-20 x 5/16 inch long Endcap 4 places Cantilever Left Hand Outside location Endcap Cantilever Right Hand Center Line Inside 6 inches 6 inches location #8 x 3/8ths” pan head drill...
  • Page 43 OXYGEN 120 INSTALLATION Endcap Hutch 12345 Installation Facing Aisle Endcap Worksurface (No Holes) Do not use here Endcap Hutch Worksurface (6 holes with counterbores on bottom) Install like Endcap Worksurface. See Previous page Installation Facing Bench Align WS holes with holes in...
