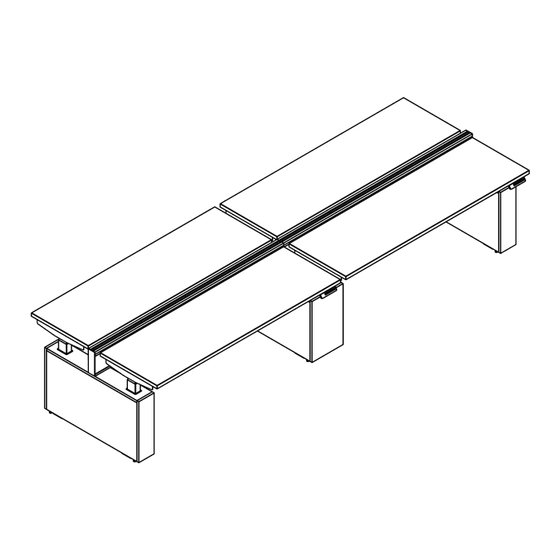

Encounter PowerBench Installation Instructions
Date
Page No. Description of change
05/05/2023
1-39
06-27-2023
31
11/06/2023
35,35
www.ais-inc.com
Separated PowerBeam from PowerBench
Added blank outlet covers
Added u-channels to 84w units
P-INSTRUCTPB Revision 11.06.2023
Name
S. Powers
S. Powers
S. Powers
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Encounter PowerBench and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIS Encounter PowerBench

Summary of Contents for AIS Encounter PowerBench

  • Page 1 Encounter PowerBench Installation Instructions Date Page No. Description of change Name 05/05/2023 1-39 Separated PowerBeam from PowerBench S. Powers 06-27-2023 Added blank outlet covers S. Powers 11/06/2023 35,35 Added u-channels to 84w units S. Powers www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...

  • Page 2: Important Safety Instructions

    Encounter PowerBench Installation Instructions ***READ ALL INSTRUCTIONS BEFORE USING*** • For commercial use only. • Warning: Risk of Injury – Maximum load 275 lbs. 2 leg, 325 lbs. 3 leg • Electrical rating: 120V, 60Hz, 4 AMP for 2 leg tables 120V, 60Hz, 5 AMP for 3 leg tables •...

  • Page 3: Grounding Instructions

    Encounter PowerBench Installation Instructions GROUNDING INSTRUCTIONS This product is for use on a circuit having a nominal rating more than 120 volts and is factory-equipped with specific electric plug to permit connection to a proper electric circuit. Make sure that the product is connected to an outlet having the same configuration as the plug.

  • Page 4: Recommended Tools

    Encounter PowerBench Installation Instructions Recommended Tools: Small ratchet with: 3/16” Hex Tip 5/32” Hex Tip Cordless Drill with: 6” Magnetic Drill Extension 3” Magnetic Drill Extension 3/16” Hex Tip 5/32” Hex Tip 4mm Hex Tip 6mm Hex Tip #2 Phillip Bit www.ais-inc.com...
  • Page 5 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number CG-REPLACE Single 6” Laminate Case CG-REPLACE Double 12” Laminate Case RWFS-BBP RWFS-BBP Single 6” Base Plate RWFS-BBDP RWFS-BBDP Double 12” Base Plate RH-SMZFP102B RH-SMZFP102B #10 X 2” Flat Head...
  • Page 6 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number RH-QS0978 RH-QS0978 #9 x 7/8” Flat Head Screw DD-BCV DD-BCV Center Support Bracket T-BRTxx DD-BRTxx-P Top Beam xx = 36 – 96 xx = 36 – 96 Non-Powered (in increments of 6”)
  • Page 7 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number T-BEMTB DD-BEMTB Power Pole Top Bracket RH-91502A164 RH-91502A164 Socket Head Hex Cap Screw M6 x 1 x 14mm long RH-90576A115 RH-90576A115 M6 Lock Nut RP-PSS1-A RP-PSS1-A Pan Head Sheet Metal Screw #10 x 1”...
  • Page 8 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number RH-TSSF612 RH-TSSF612 Flat Head Drilling Screw #6 X ½” long T-BVWMTS DD-BVWMTS Vertical Wire Manager Base Shroud T-BVWMC29 DD-BVWMC29 Vertical Wire Manager Cover 21H, 25H or 29H...
  • Page 9 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number E-MW8W4DOx E-MW8W4Dx Duplex Outlet x = 1,2,3 or 4 x = 1,2,3 or 4 Line 1 - 4 E-MW8W4T24DOx RSP-000000297x Duplex Outlet x = 1,2,3 or 4...
  • Page 10 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number T-BPCTxx DD-BUTxx Beam Power Cord Tray 36W-72W RWFS-450MMSBx RWFS-450MMSBx Side Bracket (x = B, W or S) (x = B, W or S) RWFS-2L2SE-FKx RWFS-2L2SE-FKx Frame End A...
  • Page 11 Encounter PowerBench Installation Instructions Item Replacement Circle Sheet Description Image Part number Part Number RL-JCPWCRD RL-JCPWCRD Power Cord Flat Head Screw M5 x 20mm Flat Head Screw M5 x 16mm A-PPCS RA-PPCS Ceiling Shroud A-PPMS RA-PPMS Magnetic Strip A-PPGAS RA-PPGAS...
  • Page 12 Encounter PowerBench Installation Instructions Step 1: Install base plates to the bottom of the laminate cases using #10 x 2” screws. Single 6” Laminate Case Single 6” Base Plate Double 12” Laminate Case #10 x 2” long Flat Head Screw...
  • Page 13 Encounter PowerBench Installation Instructions Step 2: Snap trim rings together and install into the leg cutouts in the laminate case. Trim Ring 2 places per leg cutout www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 14 Encounter PowerBench Installation Instructions Step 3: Install the height adjustable columns into the laminate case and secure using M6 x 14mm screws. Height Adjustable Column M6 x 14mm long Pan Head Screw #2 phillips drive 4 places per column www.ais-inc.com...
  • Page 15 Encounter PowerBench Installation Instructions Step 4a: Position the spine beam base on the laminate cases. Secure in place using (2) verticals and #9 x 7/8” screws. Assembly Tip: Spine Beam Base Stack drill extensions as shown for easier access to screws 6”...
  • Page 16 Encounter PowerBench Installation Instructions Step 4b: For shared laminate bases, install the spine beam base as shown. Assembly Tip: Stack drill extensions as shown for easier access to screws 6” drill extension Top View 3” drill extension #2 Philips Tip...
  • Page 17 Encounter PowerBench Installation Instructions Step 5 (for sizes 72W and up only): Center beam support bracket in Beam Base channel. Bracket will be secured in place in Step 6. Beam Support Bracket Top View www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 18 Encounter PowerBench Installation Instructions Step 6a: Install Beam Top Assembly using Twist Plates and (2) ¼-20 x 5/8” Cap Screws. P13 P14 P15 3/32” Beam end to Vertical Top Beam Steel Vertical Twist Plate Hex Cap Screw ¼-20 x 5/8” long 3/16”...
  • Page 19 Encounter PowerBench Installation Instructions Step 6b (For sizes 72W and up with power): When positioning Top Beam Assembly, carefully position the power inside the Support Bracket. Note: If installing Chicago Powered Spine Beam Kits, the center support bracket will need to be placed off center after the power has been installed.
  • Page 20 Encounter PowerBench Installation Instructions Installing End Mount Power Poles Step 1: Loosely install top and bottom power pole brackets to the bottom power pole shell using M6 cap screws and nuts. Top Bracket M6 x 14mm long M6 Nut Hex Cap Screw...
  • Page 21 Encounter PowerBench Installation Instructions Step 2: Remove (2) #10 pan head screws from beam vertical. Align power pole brackets to beam and re-install #10 pan head screws. #10 x 1” Pan Head Sheet Metal Screw 4 places Step 3: Secure top bracket to beam vertical using (2) #8-32 x 5/16” pan head screws (labeled C-Screw).
  • Page 22 Encounter PowerBench Installation Instructions Step 4: Tighten (4) M6 Nuts to firmly secure power pole shell to beam Tighten M6 Nut 4 places Step 5: Install power pole coupler to shell using (2) #8-32 x 5/16” pan head screws (labeled C-Screw).
  • Page 23 Encounter PowerBench Installation Instructions Step 6: Install power pole top shell to coupler using (2) #8-32 x 5/16” pan head screws (labeled C-Screw). Power Pole Top Shell #8-32 x 5/16” long Pan Head Thread Forming Screw #2 Philips Drive 2 places Step 7: Snap on top and bottom power pole covers to shells.
  • Page 24 Encounter PowerBench Installation Instructions Step 8: Install ceiling shrouds using magnetic strips and plastic retainer. Plastic Retainer ties the pole to the ceiling grid. Ceiling Shroud Magnetic Strip 2 places 2 places www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 25 Encounter PowerBench Installation Instructions Installing Base Feed and Vertical Wire Manager Step 1: Install Base Feed. Feed cable through hole in beam base Fully Engage Locking clip Note: If clip is missing, contact AIS Customer Service for replacement. Base Feed...
  • Page 26 Encounter PowerBench Installation Instructions Step 3: Install (2) Vertical Wire Manager Base Shroud. Base Shroud (1) Base Shroud (2) Step 4: Install (2) Vertical Wire Manager Cover. Hook Cover into Shell Flat Head Drilling Screw #6 x 1/2” long Philips Drive #2 2 places www.ais-inc.com...
  • Page 27 Encounter PowerBench Installation Instructions Step 7a (for Chicago Power only): Install Chicago Power Box to Spine Beam. Chicago Junction Box Base #6 x 3/16” long #DD-BCJC Round Head Thread Forming Screw #2 Philips Drive 8 places Outlet 6 places or...
  • Page 28 (1) Per outlet Note UP arrow Step 8: Plug Jumpers into powerway, making sure to fully engage locking clip! Engage clip HERE Fully Engage Locking clip Note: If clip is missing, contact AIS Customer Service for replacement. www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 29 Encounter PowerBench Installation Instructions Step 9: Install End Caps. DO NOT over torque. End Cap Washer 2 places Hex Cap Machine Screw ¼-20 x 5/8” long 3/16” Hex Drive 2 places ¼-20 Flange Nut 7/16” External Hex Drive 2 places...
  • Page 30 Encounter PowerBench Installation Instructions Step 10: Install shims onto covers. 5” Shim Sizes 36 – 60 = 4 places Cover Sizes 66 – 96 = 6 places Equally spaced Snap Shim onto Cover 5” www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 31 Encounter PowerBench Installation Instructions Step 11 (optional): If required, install outlet covers per design spec. Cover Blank Outlet Cover check design spec for locations www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 32 Encounter PowerBench Installation Instructions Step 12: Snap beam covers into place. Covers Snap in here Hook bottom of cover into Beam Base first www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 33 Encounter PowerBench Installation Instructions Step 13: Install top covers. Top Covers 2 places per beam section Flush www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 34 Encounter PowerBench Installation Instructions Step 14 (optional): Install power cord tray. Accessory Mount 3 places Beam Base Groove Flat Head Drilling Screw #6 x ½” long #2 Philips Drive 6 places Powercord Tray Flat Head Drilling Screw #6 x ½” long...
  • Page 35 Encounter PowerBench Installation Instructions Step 15: Install the worksurface support components. Center Rail Frame End A 2 places 2 places Side Bracket Note: Omit on 2 places 84W worksurfaces Frame End B 2 places M6 X 14mm Flat Head Screw...
  • Page 36 Encounter PowerBench Installation Instructions Step 16: Connect all height adjustable electrical components as shown. 1. Connect Leg 1 to Control Box Port M1. 2. Connect Leg 2 to Control Box Port M2 using the 1.3M cable. 3. Connect the Hand Switch to Control Box Port HS.
  • Page 37 Encounter PowerBench Installation Instructions Step 17: Raise unit to the fully extended height. Temporarily disconnect all wires. Step 18: Position the worksurface on the height adjustable support frame and secure in place using (6) M5 X 20 wood screws. Center worksurface horizontally across the frame ends 2”...
  • Page 38 Encounter PowerBench Installation Instructions Step 20: Install the control box to the worksurface using (2) M5 x 16mm wood screws. M5 x 16mm Control Box Flat Head Screw #2 Philips Drive 2 places per control box 12” www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 39 Encounter PowerBench Installation Instructions Step 21: Install the hand switch to the worksurface using (2) M5 x 16mm wood screws. Hand Switch M5 x 16mm Flat Head Screw #2 Philips Drive 2 places per hand switch www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
  • Page 40 Encounter PowerBench Installation Instructions Step 22: Re-connect all height adjustable electrical components as shown. 1. Connect Leg 1 to Control Box Port M1. 2. Connect Leg 2 to Control Box Port M2 using the 1.3M cable. 3. Connect the Hand Switch to Control Box Port HS.
  • Page 41 Encounter PowerBench Installation Instructions Step 23: Test all height adjustable units for proper functionality. www.ais-inc.com P-INSTRUCTPB Revision 11.06.2023...
