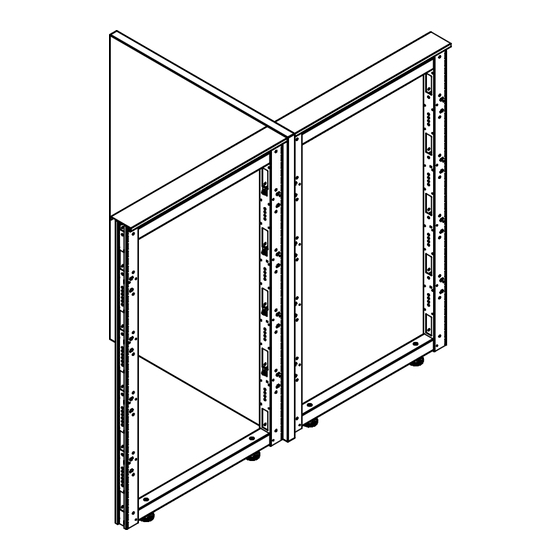

Matrix Gallery Panels mount to Matrix frames in place of wing panels for structural support. Gallery panels are
shipped ready to install with the required glides and hex head bolts included.
Product and Parts
To the right is a visual guide to the parts used in the
gallery panel installation.
1. Matrix Frame (stand alone product)
2. Hex Head Bolts (2.25")
3. Gallery Panel
2.25"
1/4-20 Hex Head Bolt (2.25")
Installation
Align gallery panel with frame and use hex head bolts to
secure the gallery panel to the frame.
Align gallery panel with frame.
Product
Matrix Gallery Panel Install (P-INSTRUCTMGP)
Phone: 800.434.7400 Fax: 978.562.0811 Web: www.ais-inc.com
1
2
2
2
2
© 2012, AIS
Date
06/01/12
3
Use hex head bolts to
secure gallery panel to
frame.
1 of 2
