AIS Laminate End Panel Tables Manual

With monitor extension
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Laminate End Panel Tables
Anchor Pin
RH-DU325
www.ais-inc.com
www.ais-inc.com
Cam Bushing
RH-9056601
C-INSTALEPTABLE Rev 04.22.2019
(with Monitor Extension)
RWFS-IN51618B
RWFS-GL51618
12345
Glide Insert
Glide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Laminate End Panel Tables and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIS Laminate End Panel Tables

Summary of Contents for AIS Laminate End Panel Tables

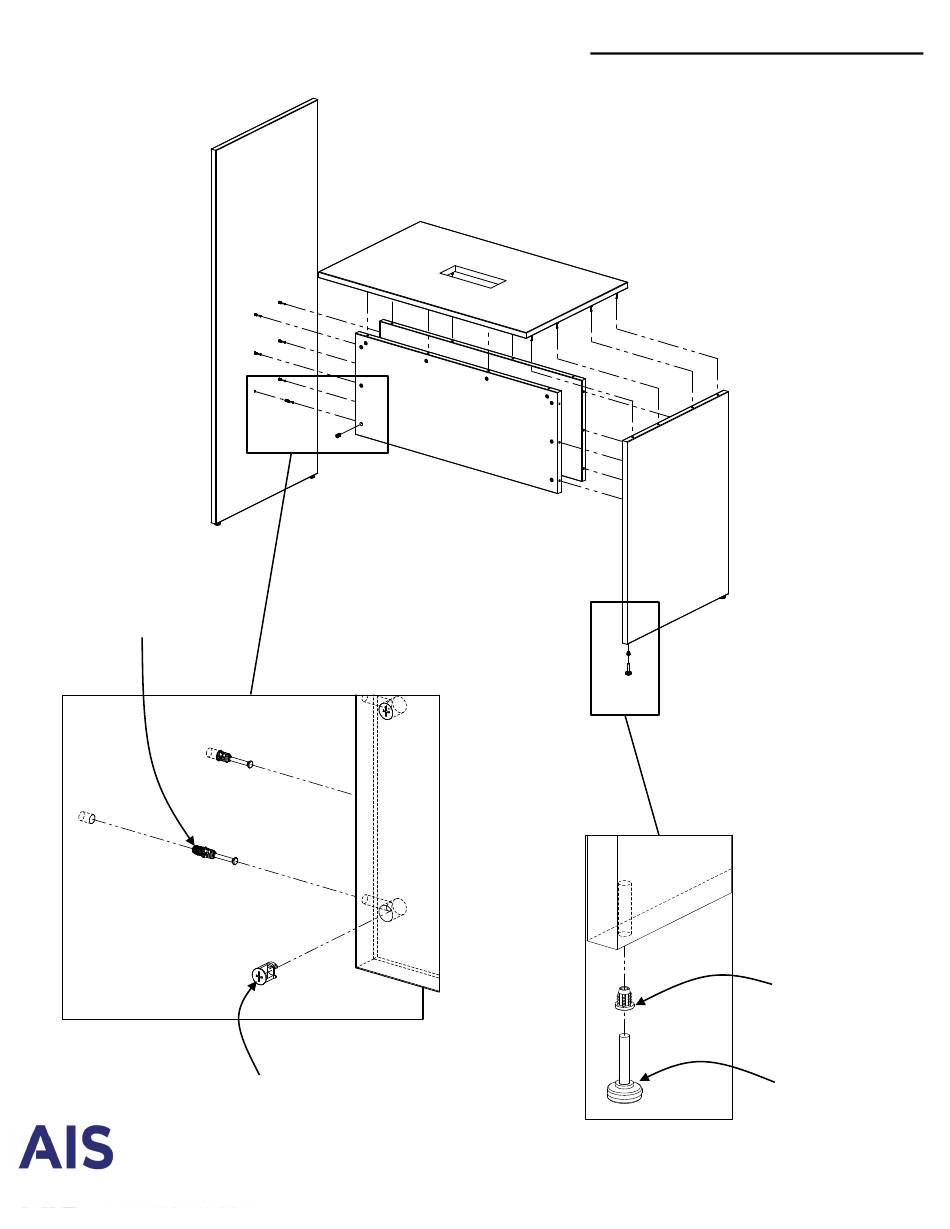

  • Page 1 Laminate End Panel Tables (with Monitor Extension) 12345 Anchor Pin RH-DU325 Glide Insert RWFS-IN51618B Glide Cam Bushing RWFS-GL51618 RH-9056601 www.ais-inc.com www.ais-inc.com C-INSTALEPTABLE Rev 04.22.2019...
  • Page 2 Laminate End Panel Tables (with Monitor Extension) 12345 3” Flat head wood screw #9 x 7/8 long #2 Phillips drive RH-QS0978 4 places per bracket L – Bracket 2 Places www.ais-inc.com www.ais-inc.com C-INSTALEPTABLE Rev 04.22.2019...
  • Page 3 Laminate End Panel Tables (with Lockers) 12345 Anchor Pin RH-DU325 Glide Insert RWFS-IN51618B Glide RWFS-GL51618 Cam Bushing RH-9056601 www.ais-inc.com www.ais-inc.com C-INSTALEPTABLE Rev 04.22.2019...
  • Page 4 Laminate End Panel Tables (with Lockers) 12345 3” Flat head wood screw #9 x 7/8 long #2 Phillips drive RH-QS0978 4 places per bracket L – Bracket 2 Places www.ais-inc.com www.ais-inc.com C-INSTALEPTABLE Rev 04.22.2019...
  • Page 5 Laminate End Panel Tables (Recessed and Flush) 12345 Anchor Pin RH-DU325 Glide Insert RWFS-IN51618B Glide RWFS-GL51618 Cam Bushing RH-9056601 www.ais-inc.com www.ais-inc.com C-INSTALEPTABLE Rev 04.22.2019...

  • Page 6: Power Installation

    Laminate End Panel Tables Power Installation 12345 1. Install the Power Unit into the Box. 3a. Secure the Box to the worksurface using (4) #6 x 1” long flat head wood screw. 3b. Break off tabs off of box. Break tabs 4.
