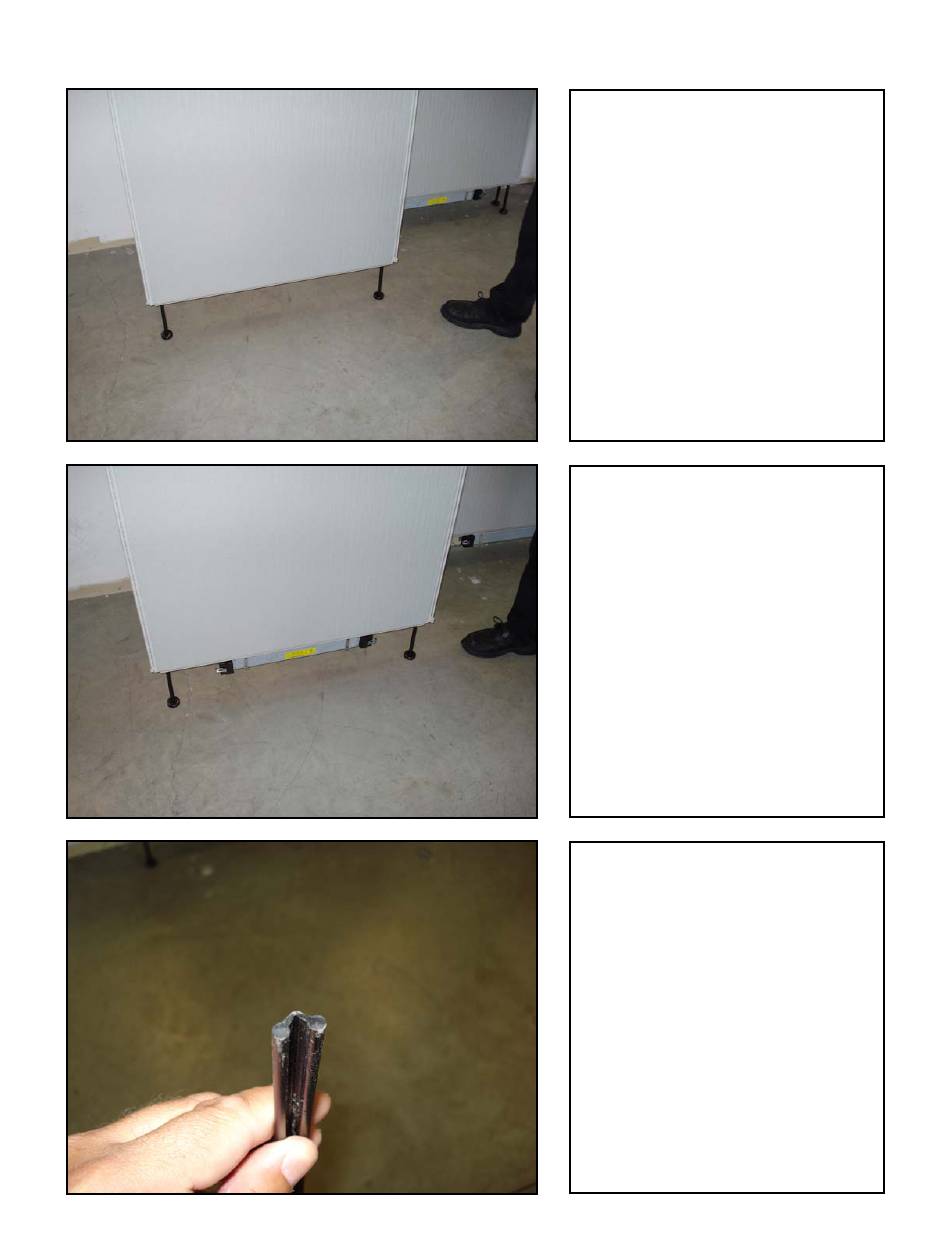

AIS DiVi Installation Instructions (P-DVINSTRUCT01)
Indentify Non-powered panels
and separate from Powered
panels. Non-powered panel
shown at left..
Powered panel shown at left
has powerway mounted at
factory. Also separate panels
by surface type, width and
height.
Polypropylene hinges are used
to connect panels together.
Revised 02.19.10
