AIS C-COMXHINSTALL Install Manual

Panel mounted overheads

Catalog

All

Details

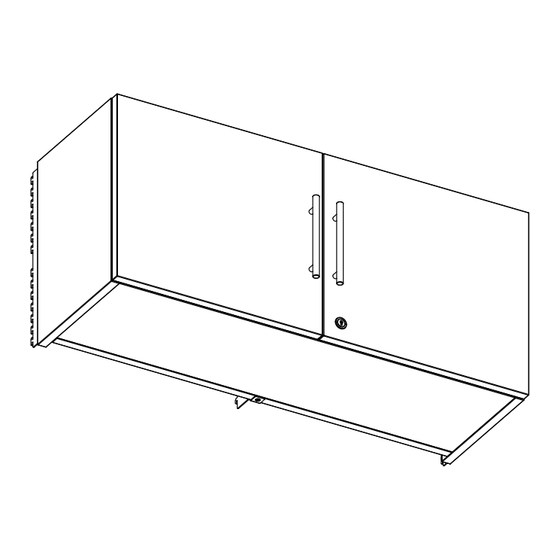

Matrix Panel Mounted Overheads are installed using standard hanger frames on the Matrix frame. Attach the left and right

hanger frame brackets, install the center support (depending on scenario), and then hang the unit on the frame. Finish

the installation by installing the left and right hand locking brackets. Below are details of this installation.

Hanger Frame Bracket

(non-handed)

Locking Bracket

Center Support Bracket

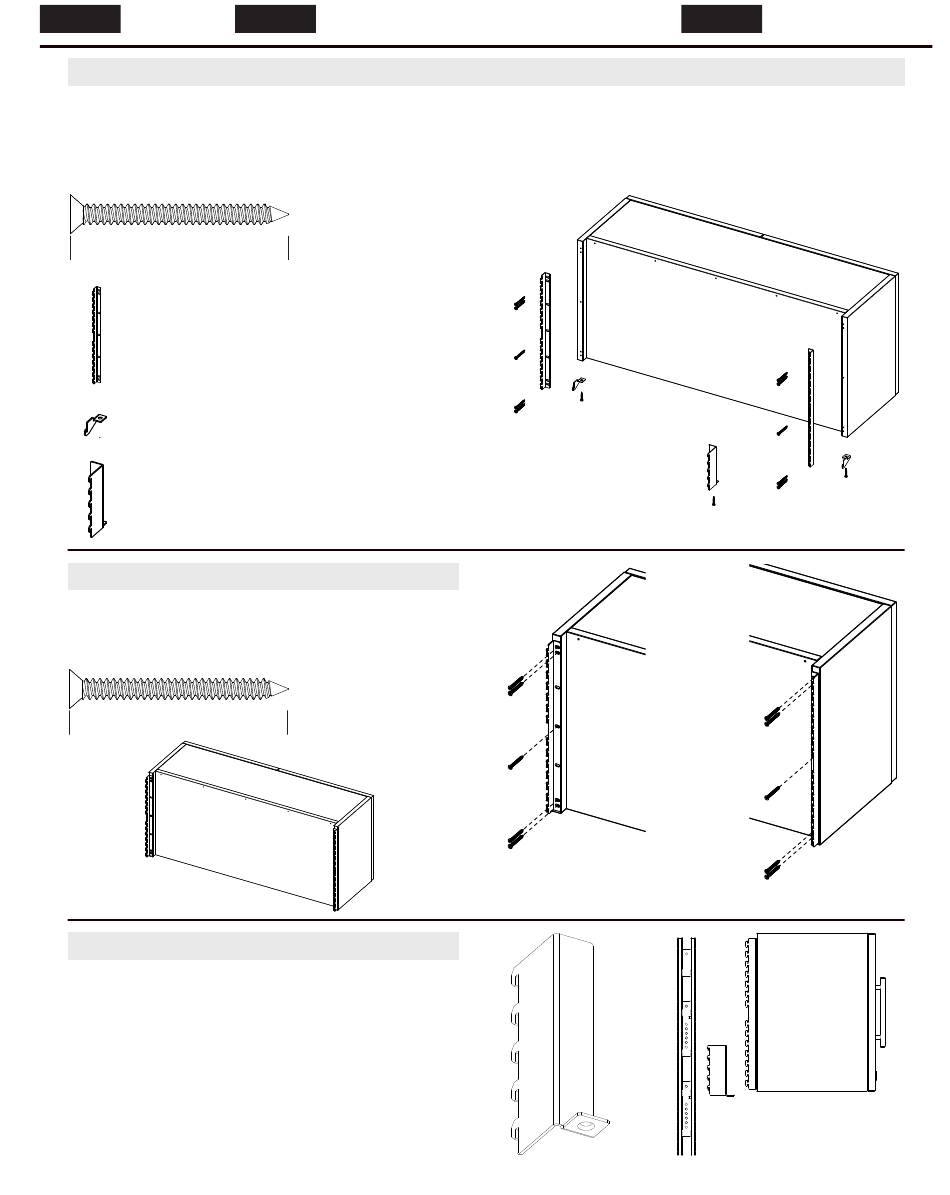

Step 1 - Install Hanger Frame Brackets

Install the Hanger Frame Brackets onto the ends of the

storage unit, using the supplied #10 x 2" Flat Phillips

Sheet Metal screws, using the pre-drilled holes as guides.

For units spanning two frames, a center support is

required. This piece should be placed in the seam

between the panels, so that the bracket is at the height

you want the bottom of the unit to be installed at.

Product

Panel Mounted Overheads (C-COMXHINSTALL) V1

#10 x 2" Flat Phillips

Sheet Metal screw

#10 x 2" Flat Phillips

Sheet Metal screw

Phone: 800.434.7400 Fax: 978.562.0811 Web: www.ais-inc.com

Date

7/1/11

1 of 2

Table of Contents

Do you have a question about the C-COMXHINSTALL and is the answer not in the manual?

Page 1 Date 7/1/11 1 of 2 Panel Mounted Overheads (C-COMXHINSTALL) V1 Details Matrix Panel Mounted Overheads are installed using standard hanger frames on the Matrix frame. Attach the left and right hanger frame brackets, install the center support (depending on scenario), and then hang the unit on the frame. Finish the installation by installing the left and right hand locking brackets.
Page 2 Product Date 7/1/11 2 of 2 Panel Mounted Overheads (C-COMXHINSTALL) V1 Step 3 - Hang the unit on the frame When hanging the unit on the frame, pay attention to the center support if applicable. If no center support is needed, simply hang the unit.
