aFe Power Terra Guard 79C27020 Quick Start Manual

Engine skid plate subaru outback 20+ вт platform
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

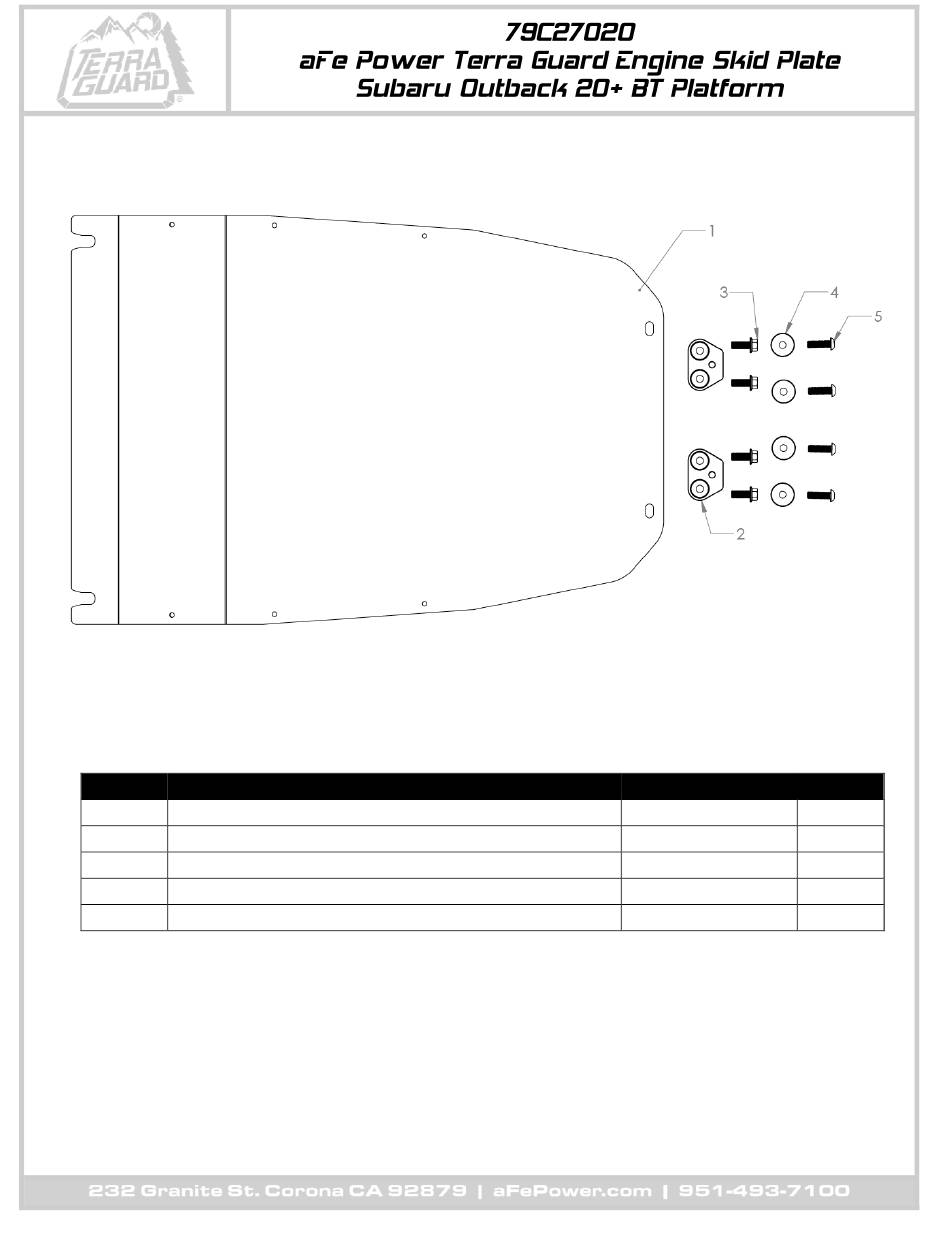

Item
1
Skid Plate, Engine, 20-24 Subaru Outback
2
Spacer, 1": Subaru
3
Hex Flange Bolt: M10 x 1.25 x 25
4
Washer, Flat: 3/8" ID, 1.25 OD, .100 THK
5
Button Head Bolt: 3/8-16 x 1-1/4 S/S
Fitment Note
This Skid Plate is a direct fit for the following aFe POWER Terra Guard Bumpers
•
79-27009
•
79-27012
•
79-27015
Description
•
•
•
P/N
05-61493
05-61492
03-50807
03-50488
03-50827
79-27016
79-27017
79-27018
Qty
1
2
4
4
4
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Terra Guard 79C27020 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for aFe Power Terra Guard 79C27020

Summary of Contents for aFe Power Terra Guard 79C27020

  • Page 1 03-50807 Washer, Flat: 3/8" ID, 1.25 OD, .100 THK 03-50488 Button Head Bolt: 3/8-16 x 1-1/4 S/S 03-50827 Fitment Note This Skid Plate is a direct fit for the following aFe POWER Terra Guard Bumpers • 79-27009 • 79-27016 •...
  • Page 2 Retain factory parts for future use. Procedure: 1. This engine skid plate is a direct fit for our aFe POWER Terra Guard bumpers for the 20+ Subaru Outback BT platform. This skid plate is only compatible with aFe bumpers. The aFe engine skid plate can be installed with or without the front aFe skid plate, but for full protection we recommend installing both skid plates.
  • Page 3 3. Remove the (2) front skid plate rear bolts and replace with the included button head bolt and large washer. Leave them loose with about a 1/4” gap between the front skid plate and crossmember. If you do not have our front skid plate, Install the button head bolts and washers onto the bumper crossmember’s 3/8 rivnut holes.
  • Page 4 4. Remove the (4) OE gusset plate bolts. 5. Install the aFe spacers using the included longer M10 flanged bolts. Fully tighten. FRONT...
  • Page 5 6. Install the skid plate with the open slots in the front. The front should slide in and sandwich between the front skid plate and the bumper crossmember. Secure the rear with the included button head bolts and large washers. Fully tighten front and rear button head bolts.
