Summary of Contents for Bender ICC1314

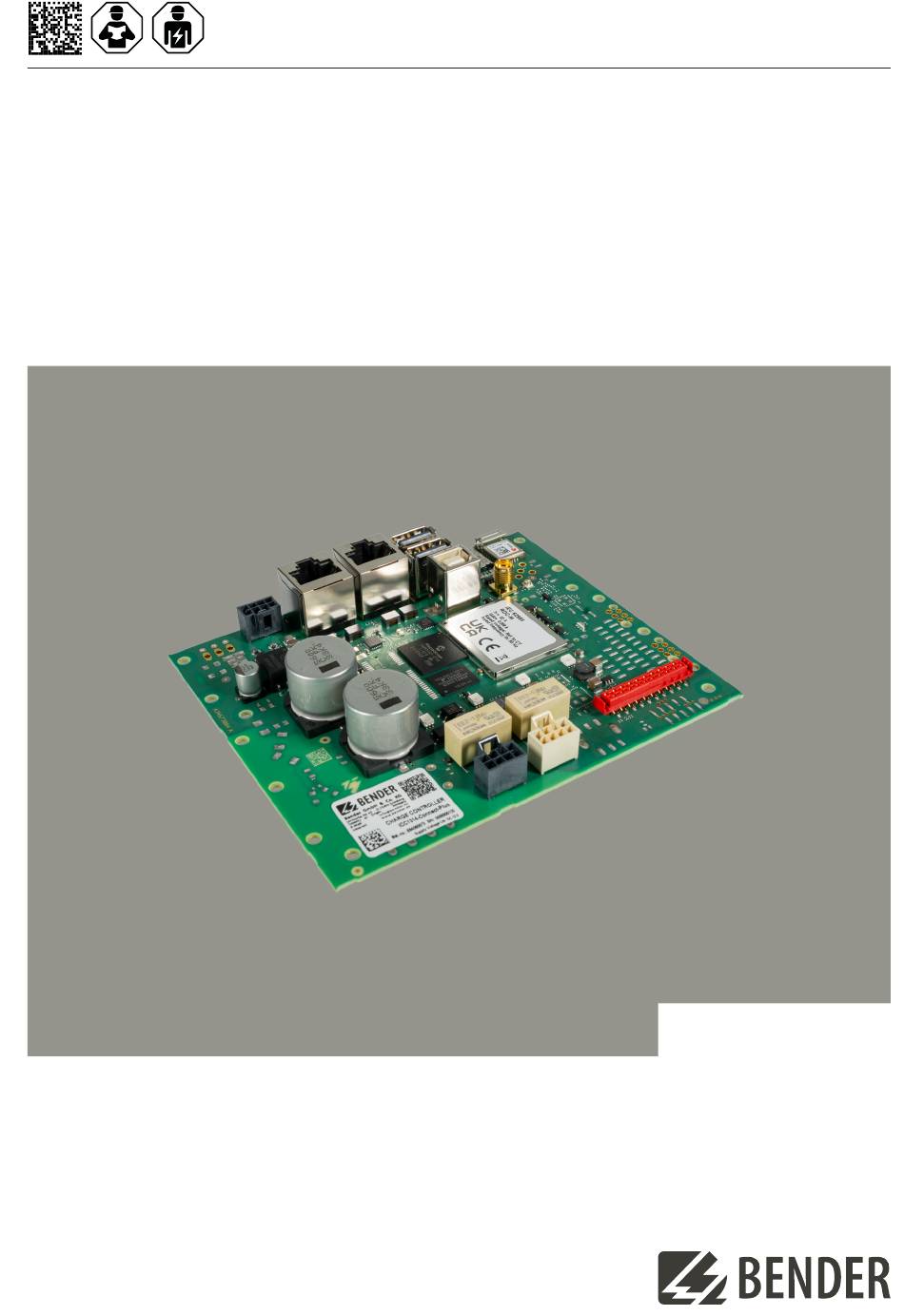

- Page 1 Manual EN ICC1314 Charge controller for charging systems for electric vehicle charging Figure: depends on the variant ICC1314_D00520_00_M_XXEN / 02.2025...
- Page 2 ICC1314_D00520_00_M_XXEN / 02.2025...
-
Page 3: Table Of Contents
Indication of important instructions and information...............5 Service and Support............................5 Training courses and seminars........................5 Delivery conditions............................5 Inspection, transport and storage......................6 Warranty and liability.............................6 Disposal of Bender devices..........................6 Safety..................................7 Function..........................8 Intended use..............................8 Device features..............................8 Product description............................9 Functional description........................... - Page 4 Table of contents Configuration and testing..................... 21 Configuration..............................21 5.1.1 Local configuration of parameters......................21 5.1.2 Remote configuration of parameters....................22 5.1.3 Factory settings..............................22 5.1.4 Testing and system boot process......................23 5.1.5 Connectivity to the backend........................23 5.1.6 Plug locking and unlocking........................24 5.1.7 Authorisation and charging........................
-
Page 5: General Information
Regular face-to-face or online seminars for customers and other interested parties: www.bender.de > know-how > seminars. Delivery conditions The conditions of sale and delivery set out by Bender GmbH & Co. KG apply. These can be obtained in printed or electronic format. ICC1314_D00520_00_M_XXEN / 02.2025... -
Page 6: Inspection, Transport And Storage
Bender GmbH & Co. KG is registered in the waste from electrical and electronic equipment (WEEE) register under the WEEE number: DE 43 124 402. For more information on the disposal of Bender devices, refer to www.bender.de > service & support. -
Page 7: Safety
ICC1314 Safety If the device is used outside the Federal Republic of Germany, the applicable local standards and regulations must be complied with. In Europe, the European standard EN 50110 applies. DANGER Risk of fatal injury due to electric shock! Touching live parts of the system carries the risk of: •... -
Page 8: Function
Manufacturer should not be shared with the operator. Intended use The ICC1314 charge controller, hereinafter referred to as "charge controller", is the main component of a charging system. Charge controllers with G1 identification are operated together with the integrated power module IPM1300. -
Page 9: Product Description
• Support for the EEBUS profiles overload protection, optimisation of PV charging, cost-optimised charging and load specification by electricity grid operators • Support for the Bender app for home loading and API for customer-specific apps • Tool support for configuring and testing charging systems in production •... -
Page 10: Temperature Monitoring - Load Current And Cooling Monitoring
Function • Using a Micro SIM card (not included in the scope of delivery): The SIM card slot (available on data gateways with a 4G modem only) is located on the charge controller front panel. The SIM card can have a PIN number which can be configured via the Network tab. •... -
Page 11: Led Indications
ICC1314 LED indications Status LED (F) Blue System is starting Fast flashing blue Software update is running Green System started, not yet ready for operation Flashing green System running, system ready for operation Red (10 s or longer) System error... -
Page 12: Dimensions And Mounting
Dimensions and mounting Dimensions and mounting Dimension diagram Dimensions in mm Red markings: possible fixing points Recommendation for fastening: • Pan head screws: 4 x M 2.5 • Torque: 0.36 Nm CAUTION Wrong mounting of the PCB Mechanical stress (tilting) of the PCB When mounting, ensure that the PCB is flush-mounted. -
Page 13: Connection
ICC1314 Connection Connection conditions DANGER System parts may be live (integrated power module and charging station up to 230 V / 400 V) Electric shock Before touching system parts, ensure that it has been de-energised. CAUTION Sharp-edged terminals Cut injuries Handle enclosure and terminals with care. -
Page 14: Charging System With Type 2 Socket-Outlet
Connection Charging system with type 2 socket-outlet ADVICE For the connections A, L and K a Molex Nano- Fit, series 105310, 8-pin, plating: tin (Sn) is used. For the connector assemblies, models with plating tin (Sn) are also to be used. The A and L connections are colour-coded black, the K connection is colour-coded natural (beige). - Page 15 ICC1314 Wiring diagram ICC1314_D00520_00_M_XXEN / 02.2025...
-
Page 16: Connection Locking Actuators
Connection Legend 12 V, PE, Modbus meter, CP, PP (Molex Nano-Fit Optocoupler input (Molex Nano-Fit 105310-3508) 105310-3508) Connection Ethernet (ETH2) Connection integrated power module (IPM) 20-pole Connection Ethernet (ETH1) LED activity Ethernet 2 Extension connection (USB type A) LED activity Ethernet 1 SIM card holder (3FF, micro) integrated WiFi antenna LED status charge controller... - Page 17 ICC1314 Example Hella actuator Example Küster ICC1314_D00520_00_M_XXEN / 02.2025...
-
Page 18: Connectivity
Connection Connectivity 4.5.1 Master/slave connection For dual charging systems two charge controllers of the variants Connect Plus or one Connect Plus (as the master controller) and one Companion (as the slave controller) can be combined. One charge controller is configured as the master and coordinates the communication with an OCPP backend or with connected energy management systems. -
Page 19: Emergency Opener
The use of a meter is not mandatory. It is necessary if measured values are required during normal operation. The meter is connected to the Modbus meter interface (terminal A) of the charge controller. Various Modbus meters are currently supported: https://www.bender.de/docs/charge-controller/Metering/ Meter Slave ID... - Page 20 Connection Antenna socket The antenna socket enables connection to a 4G antenna (not included in the scope of delivery). Approved or recommended antenna types can be found in the tabular data (see chapter “Tabular data”, page 25). ADVICE Safeguard the antenna socket against ESD discharges! If the antenna socket can be touched during operation, suitable measures must be implemented to protect against ESD discharges.
-
Page 21: Configuration And Testing
• Ethernet interface • 4G modem • Remote access - the ChangeConfiguration command of the OCPP protocol is used (depending on the backend system) For more information on how to configure the charge controller, visit https://www.bender.de/docs/ charge-controller/ 5.1.1 Local configuration of parameters In order to locally configure the charging system via the charge controller, it is necessary to connect a USB cable with type B socket to a laptop, PC or tablet computer with a standard USB host interface. -
Page 22: Remote Configuration Of Parameters
Configuration and testing The menu item Documentation in the web interface for the user operator contains: • Information on OCPP status display error messages (e.g. codes, activation and resolution messages, instructions and corrective measures) • OCPP configuration key for OCPP 1.6 (e.g. key name and description) Application of changed parameters Parameter changes are not necessarily applied after submission. -
Page 23: Testing And System Boot Process
ICC1314 Views of the web interface vary 5.1.4 Testing and system boot process After completing the configuration, the charge controller must be tested for operability. This can be done using a vehicle simulator. The following must be checked: • successful boot process (for variants with OCPP: OCPP state - IDLE) •... -
Page 24: Plug Locking And Unlocking
HMI module; the contactor is switched on and a current flow takes place. The charge controller enables two modes of operation. • Authorisation BEFORE connecting • Authorisation AFTER connecting The modes of operation are briefly described in the respective module manual, which can be downloaded from https://www.bender.de/en/service-support/download-area/ ICC1314_D00520_00_M_XXEN / 02.2025... -
Page 25: Technical Data
ICC1314 Technical data Tabular data Insulation coordination acc. to IEC 60664-1 / IEC 60664-3 Rated voltage 12.5 V / 24 V Overvoltage category (terminal e) Pollution degree Rated impulse voltage 800 V Operating altitude AMSL ≤ 2000 m Supply voltage DC 12 V (Terminal P) Supply voltage range U DC 11.4 V…12.6 V... - Page 26 Technical data recommended torque* 1 Nm for SMA plug connector Data interface USB-Host 1 (terminal D1) USB port type A; USB 2.0 max. 250 mA USB-Host 2 (terminal D2) USB port type A; USB 2.0 max. 250 mA Ethernet (terminal B, C) 10/100 Mbit CONFIG (configuration interface, terminal H) USB port type B...
- Page 27 ICC1314 Environment / EMC see CE declaration operating temperature -25...+65 °C Classification of climatic conditions acc. to IEC 60721: stationary use (IEC 60721-3-3) 3K23 (except condensation and formation of water and ice) Transport (IEC 60721-3-2) 2K11 Long-term storage (IEC 60721-3-1) 1K21 Classification of mechanical conditions acc.
-
Page 28: Declaration Of Conformity
Technical data Declaration of conformity Hereby, Bender GmbH & Co. KG declares that the device covered by the Radio Directive complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: https://www.bender.de/fileadmin/content/Products/CE/CEKO_ICC1314.pdf... - Page 29 Alle Rechte vorbehalten. 35305 Grünberg Nachdruck und Vervielfältigung nur mit Germany Genehmigung des Herausgebers. © Bender GmbH & Co. KG, Germany Subject to change! The specified Tel.: +49 6401 807-707 All rights reserved. standards take into account the edition emobility@bender.de Reprinting and duplicating only with valid until 02.2025 unless otherwise...
