- Page 1 ICC1324 charge controller Charge controller for charging systems for electric vehicle charging Image similar ICC1324_D00436_01_D_XXEN/12.2022...
-
Page 2: Product Description

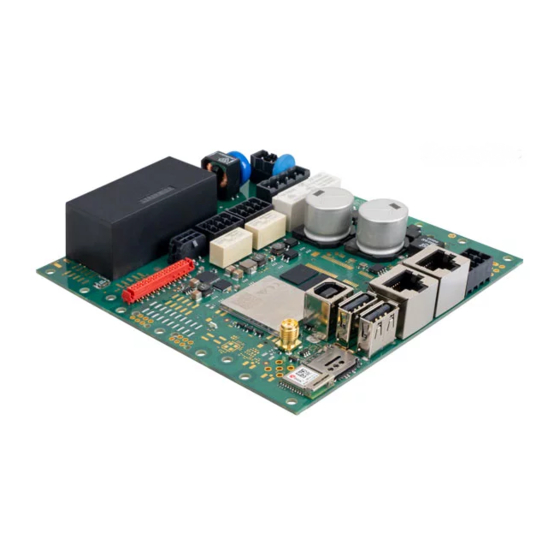

ICC1324 charge controller Charge controller for charging systems for electric vehicle charging Product features (depending on the variant) • Charge controller in accordance with IEC 61851-1 (mode 3 charging) • Master and slave operation configurable – Setting up charging ssystems with two charging points: 1 charge controller as data gateway with 4G modem and 1 charge controller as slave without 4G modem •... -
Page 3: Functional Description
ICC1324 charge controller Functional description The charging system consists of an RCD type A and a contactor. These are directly connected to a type 1 or type 2 socket-outlet, or to an attached cable with a type 1 or type 2 plug. -
Page 4: Terminal Assignment
Contactor Opto2+ Opto2- Type 2 socket-outlet Opto1- Opto1+ ¹ Data gateways with 4G modem: ICC1324-Connect Plus and ICC1324-Connect. A Mod. B Mod. 15 V – ! Switching contact contactor and weld check at terminal M are only suitable aution for mains voltage (230 V)! Not permitted for SELV/PELV voltages. -
Page 5: Technical Data
(Patents: EP 2 571 128 / US 9,397,494 / ZL 201210157968.6 / CN 103001175, EP 2 813 856) 802.11n MCS0-MCS7 (max 72.2Mbps) SMA connector for 4G antenna (for ICC1324-Connect Plus variant only, terminal G) max. output power: 19 dBm EIR Modem LTE Cat 1 &... - Page 6 ICC1324 charge controller Technical data Inputs Cable lengths/cable types Optocoupler 1 (terminal L (Opto 1 In+, Opto 1 In-)) Ethernet (terminals B, C) Input voltage (HIGH) DC 11.4 V…25.2 V Cable shielded on one side, shield on charge controller side to PE...
-
Page 7: Ordering Information
ICC1324 charge controller Ordering information Insulated 12 V relay Interface 4G modem WiFi Type Art. No. input output ICC1324-Connect Plus B94060080 (Cat 1) USB, Modbus meter, – – ICC1324-Connect B94060079 Ethernet, RFID (Cat M1/NB1) – ICC1324-Connect SP B94060074 – –... - Page 8 Bender GmbH & Co. KG Londorfer Straße 65 • 35305 Grünberg • Germany Tel.: +49 6401 807-0 • info@bender.de • www.bender.de BENDER Group...
