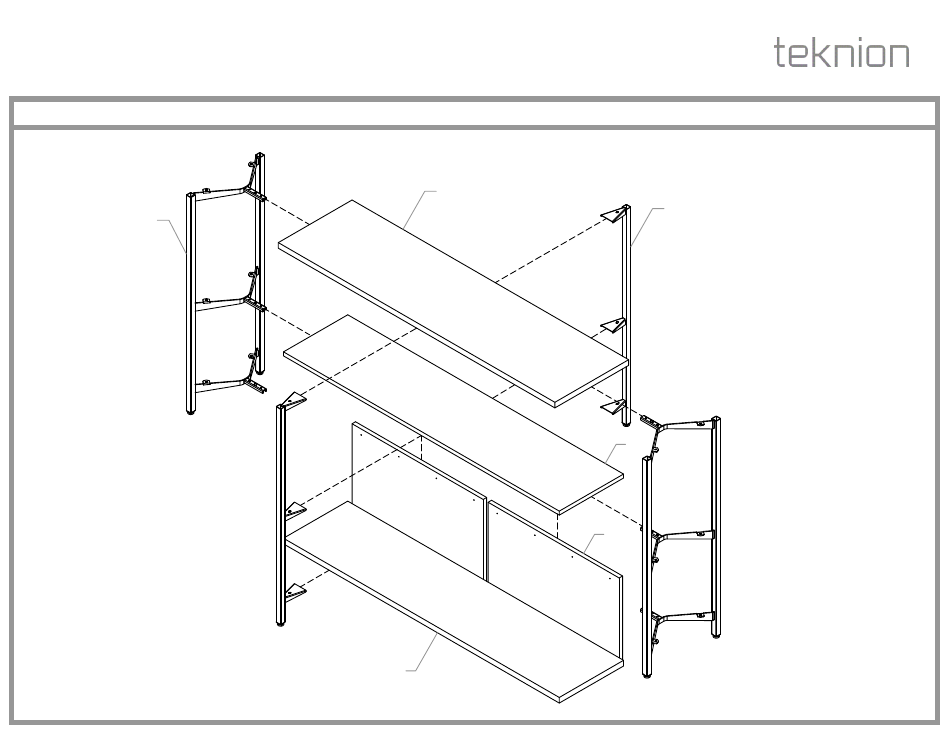

district
Installation Guides
SYSTEM BOOKCASE
Section:
Description:
CONSOLE
A1
System Console (OBSC)
C
B
Date:
DIS_611
A3
D
E
Sep 2024
Page No:
1 of 7
Rev. No: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the district OBSC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teknion district OBSC

Summary of Contents for Teknion district OBSC

  • Page 1 district Installation Guides SYSTEM BOOKCASE Section: Date: Sep 2024 Page No: 1 of 7 Description: CONSOLE DIS_611 Rev. No: 1 System Console (OBSC)
  • Page 2 district Installation Guides SYSTEM BOOKCASE Section: Date: May 2024 Page No: 2 of 7 Description: CONSOLE DIS_611 Rev. No: 0 Part and Product Identification F1 - Back Bracket (A16-12066) x1 B - Base Shelf or x2(for 60+W) (C08-1945) x1 A1 - Gable (N02-5475) x2 F2 - Quick Dowel Bolt (E03-1125) x2...
  • Page 3 district Installation Guides Section: SYSTEM BOOKCASE Date: May 2024 Page No: 3 of 7 Description: CONSOLE DIS_611 CONNECT GABLES WITH SHELF SUPPORTS STEP 1: Lay a Gable (A1) on the floor, placing all Shelf Support Tubes (A2 and B) on that Gable, then placing the other Gable on the other end. Secure them using Flat Head Screws (G2).
  • Page 4 district Installation Guides Section: SYSTEM BOOKCASE Date: May 2024 Page No: 4 of 7 Description: CONSOLE DIS_611 INSTALL BASE SHELF ON GABLE INSTALL CONSOLE TOP STEP 2: Attach the Base Shelf (B) to the Gables using CS Screws (G1), inserting the Quick STEP 3: Attach the Console Top (C) to the Gables using CS Screws (G1) Dowel Inserts (F3) as you attach the Base Shelf (B).
  • Page 5 district Installation Guides Section: SYSTEM BOOKCASE Date: May 2024 Page No: 5 of 7 Description: CONSOLE DIS_611 INSTALL BACK MID POST (60+W ONLY) INSTALL MID SHELF STEP 4: Install back Mid Post (A3) to the Console Top and Base Shelf using BH Screws (G3). STEP 5: Install Mid Shelf (D) to Gables and Mid Post using BH Screws (G3) and CS Screws (G1) as appropriate.
  • Page 6 district Installation Guides Section: SYSTEM BOOKCASE Date: May 2024 Page No: 6 of 7 Description: CONSOLE DIS_611 ATTACH BACK ATTACH BACK STEP 6b: Use the Back Bracket (H) and #8 BH Screws (N) to secure the Back to the Middle Shelf or Top Console depending on specification Base Shelf hidden for visual clarity...
  • Page 7 district Installation Guides Section: SYSTEM BOOKCASE Date: May 2024 Page No: 7 of 7 Description: CONSOLE DIS_611 LEVEL STRUCTURE STEP 8: Level the shelf using the pre-installed Levelers...
