Teknion district Installation Manuals

district
Section: SCREENS
Description:
POWER SPINE PANELS
Solid Lateral Floor Screen with Glass (UZSG), Solid Lateral Floor Screen
C
B
E
Installation Guides
(UZSS)
A1

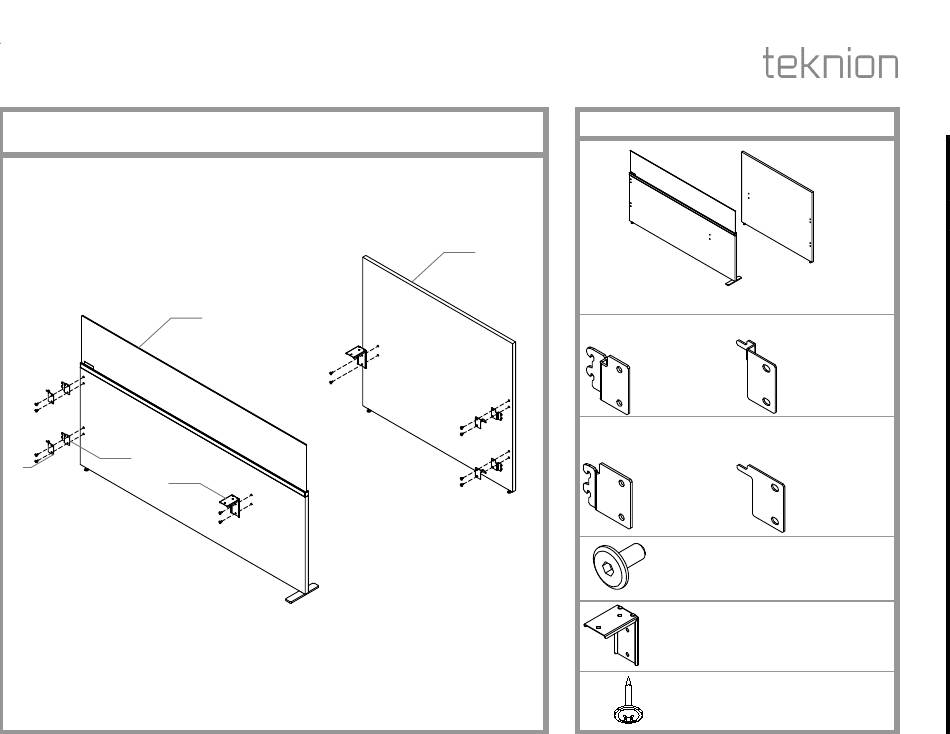

Part and Product Identification

A2
A1 - Solid Lateral Floor Screen
with Glass (C07-7280X) x 1
NOTE: Brackets B and C are used for Mid Spine (MS)
bracket attachment
B - Screen Bracket
(A16-9390X) x 2
NOTE: Brackets D and E are used for End Mounted Single
(ES), End Mounted Double (EB) and End Mounted Shared
(ED) bracket attachment
D - Disengagement
Date: May 2022 Page No:
DIS_314 Rev. No: 2
A2 - Solid Lateral Floor Screen
(C07-7301X) x 1
C - Screen Bracket
(A16-9389X) x 2
E - Disengagement
Screen Bracket Screen Bracket
(A16-9303X) x 2 (A16-9304) x 2
F - Murakoshi Screw 1/4-20 x 15mm
(E01-0635) x 6
G - Modesty Brackets
(A16-3113) x 1
H - #10 x 0.875" LG. screw
(E07-0077) x 2
1 of 5
