dossier
Section:
Description:
ZJNL, ZJNC, ZJNI, ZJNN, ZJNM, ZJNO
A

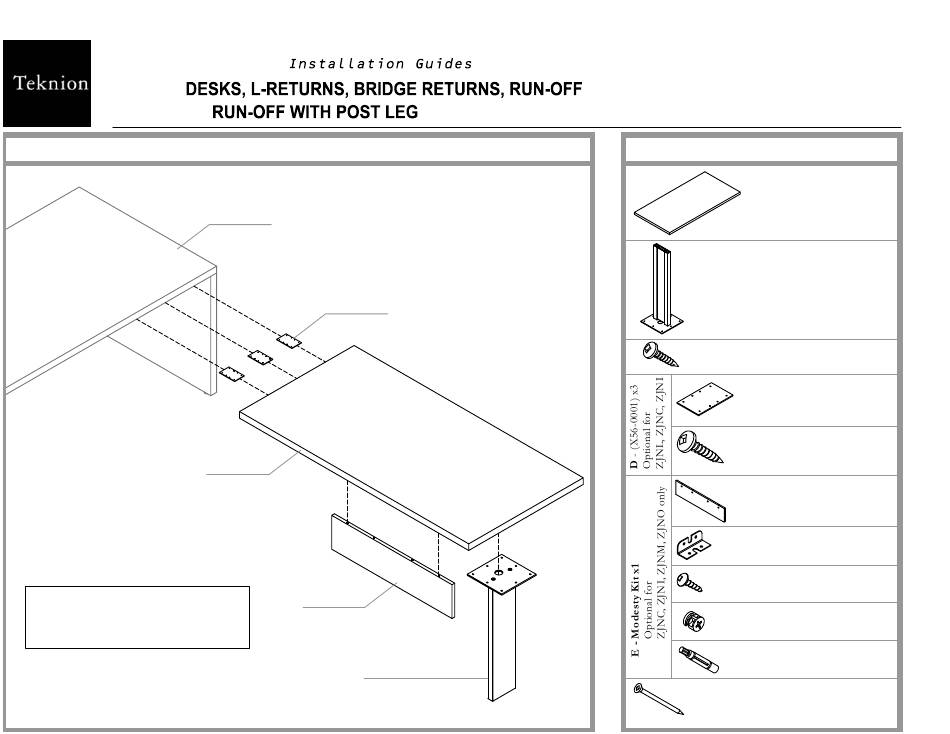

NOTE: Run-Off with Post Leg - Centered
Modesty, Flush Crendenza Connection
(ZJNC), and Standard Desk with Partial
Modesty (ZJSP) shown as an example.
For Customer Support please contact
product.support@teknion.com
ZJSP
D1
E
B
DOS_008_G01
Page No:
Date:
Rev. No:
Part and Product Identification
A - Worksurface
(C56-0010) x1
B1 - Post Leg with Wire
Access
(X58-0019) x1
or
B2 - Post Leg without Wire
Access
C - Post Leg Screw
(SC023) x8
D1 - Flush Plate
(D56-0006) x1
D2 - Flush Plate Screw
(E57-0023) x8
E1 - Modesty x1
E2 - Modesty Bracket
(D56-0004) x2
E3 - Modesty Bracket Screws
(E57-0002) x8
E4 - Cam
(B57-0002) x4
E5 - Titus Shaft
(B57-0001) x4
F - #8 X 2 1/2" Flat Head Wood Screw
(SC065) x 3
Optional for ZJNN, ZJNM, ZJNO only
1 of 8
Sept 2013
0
Advertisement
Table of Contents
Related Manuals for Teknion dossier ZJNL
Summary of Contents for Teknion dossier ZJNL
- Page 1 (ZJNC), and Standard Desk with Partial (B57-0002) x4 Modesty (ZJSP) shown as an example. E5 - Titus Shaft (B57-0001) x4 F - #8 X 2 1/2" Flat Head Wood Screw For Customer Support please contact (SC065) x 3 product.support@teknion.com Optional for ZJNN, ZJNM, ZJNO only...
- Page 2 dossier DOS_008_G02 Page No: 2 of 8 Date: Sept 2013 Section: Description: ALIGN POST LEG SECURE POST LEG 1-7/8" View STEP 1: Flip Worksurface up-side-down. Place Post Leg on the Center of the Worksurface and STEP 2: Secure Post Leg with Worksurface with Screws provided. 1-7/8"...
- Page 3 dossier DOS_008_G03 Page No: 3 of 8 Date: Sept 2013 Section: Description: INSERT TITUS SHAFTS INSERT CAMS NOTE: Centered Modesty shown as an example. Detail View STEP 3: Please insert Titus Shafts into the bottom of Worksurface. NOTE: Centered Modesty shown as an example. ATTACH MODESTY STEP 4: Insert Modesty in the Titus Shafts as shown.
- Page 4 dossier DOS_008_G04 Page No: 4 of 8 Date: Sept 2013 Section: Description: ATTACH MODESTY BRACKETS SECURE MODESTY NOTE: Installers to determine locations to attach Modesty Brackets. Location of Brackets should not interfere with previously installed Cams. Detail View STEP 6: Attach Modesty Brackets to Worksurface and Modesty equally. STEP 7: Fasten Modesty Brackets to Worksurface and Modesty as shown.
- Page 5 dossier DOS_008_G05 Page No: 5 of 8 Date: Sept 2013 Section: Description: ATTACH FLUSH PLATES ATTACH RUN-OFF NOTE: Flush Mount option Side View shown. Please refer to Installation Guide DOS_007a ZJSP Desk Worksurface for Overlap Mount, and DOS_004a for Spacer Mount. Make sure to continue on this Installation Guide with Step 6 for leveling Run-Off and...
- Page 6 dossier DOS_008_G06 Page No: Page No: 6 of 8 Date: Date: Sept 2013 Section: Description: SECURE RUN-OFF Underside View STEP 10: Fasten Run-Off with Flush Plate as shown.
- Page 7 dossier DOS_008_G07 Page No: Page No: 7 of 8 Date: Date: Sept 2013 Section: Description: LEVEL RUN-OFF Leveler Underside View STEP 11: Use leveler to make sure the Run-Off and Desk are leveled. Adjust Levelers under Post Leg if necessary.
- Page 8 dossier DOS_008_G08 Page No: Page No: 8 of 8 Date: Date: Sept 2013 Section: Description: WIRE MANAGEMENT Underside View Optional: Pull off Wire Access Cover. Place cable inside the Post Leg as shown, then close Wire Access Cover.
