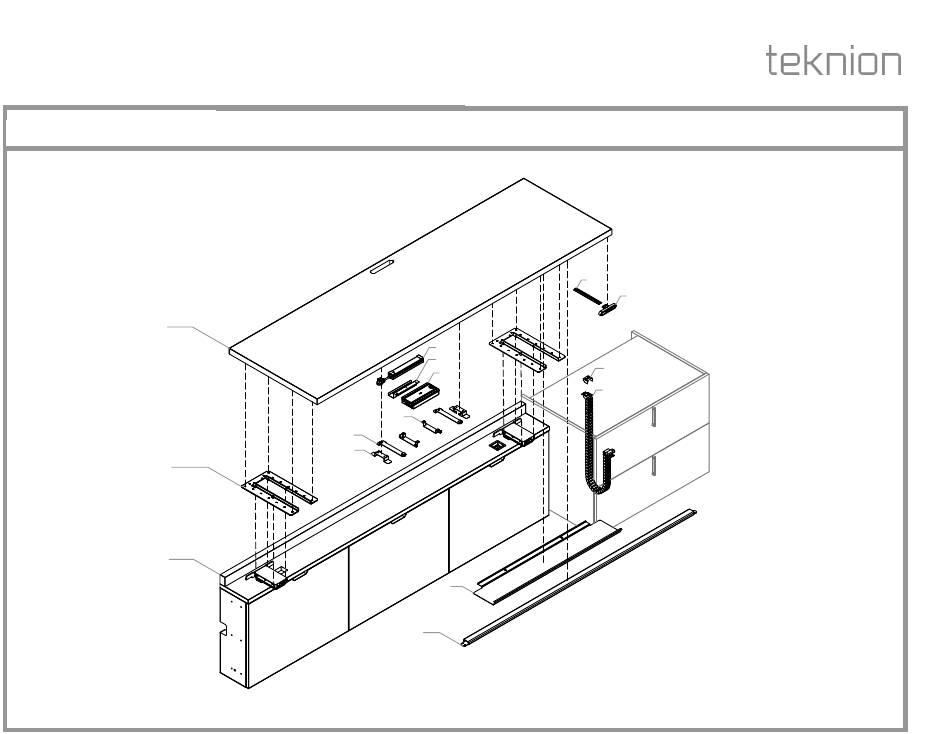

- Page 1 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 1 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 Rev. No.: 0 H.A Credenza (ZJHC)
- Page 2 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 2 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 Rev. No.: 0 Part and Product Identification T - 90 Deg Mount O - YEPD Power Bar Bracket (A16-3970) x1...
- Page 3 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZA INSTALLATION Date: Sept 2018 Page No: 3 of 14 Description: HEIGHT ADJUSTABLE CREDENZAS DOS_110 SCREW BRACKET TO LEG STEP 1: Place bracket on top of Height Adjustable Leg and use Screws to secure...
- Page 4 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 4 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 Rev. No.: 0 RAISE LEGS FASTEN BRACKETS TO WORKSURFACE STEP 2: Connect Credenza to power and raise to maximum height...
- Page 5 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 5 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 Rev. No.: 0 ASSEMBLE WIRE MANAGEMENT STEP 4: Fasten Wire Manager Bracket and Wire Loom beneath Work Surface...
- Page 6 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 6 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 INSERT CONTROL BOX SECURE CONTROL BOX STEP 5: Insert Control Box into cut out beneath Work Surface STEP 6: Secure Control Box into place using Control Unit Brackets...
- Page 7 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 7 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 SECURE POWER BAR STEP 7: Remove and discard mounting clips from YEPD Power Bar and secure beneath Worksurface using YEPD Power Bar Bracket...
- Page 8 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 8 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 ATTACH REINFORCEMENT BAR ATTACH SWITCH STEP 9: Fasten 90 Deg Mount and Tek Pier Switch to Underside of Worksurface. Switch may be installed in either left or right handed orientation.
- Page 9 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 9 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 REMOVE ACCESS PANEL BRING POWER INTO BASE STEP 11: Remove Access Panel STEP 12: Insert YEPD Power Cable into E-Chain Grommet...
- Page 10 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 10 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 INSTALL POWER CORD INSTALL E-CHAIN TO RUNOFF STEP 13: Feed YEPD Power Cable into E-Chain STEP 14: Secure Cables with Cable Tie Wrap, Install Clip as shown and fasten with screws...
- Page 11 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 11 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 FASTEN E-CHAIN TO WORKSRUFACE FASTEN E-CHAIN TO BASE STEP 15: Secure Cables with Cable Tie Wrap, install Clip as shown and fasten with screws...
- Page 12 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZA INSTALLATION Date: Sept 2018 Page No: 12 of 14 Description: HEIGHT ADJUSTABLE CREDENZAS DOS_110 FASTEN WIRE MANAGEMENT TRAY FASTEN WIRE MANAGEMENT TRAY FASTEN WIRE MANAGEMENT TRAY STEP 17: Slide Wire Manager into Wire Manager Bracket and Fasten in place using 1/4-20 Thumb Screws 2 places...
- Page 13 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 13 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 DRILL CONNECTION HOLES FASTEN GABLE TO CABINETS STEP 18: Drill holes into cabinets using holes in gables as a guide...
- Page 14 Installation Guides Section: HEIGHT ADJUSTABLE CREDENZAS Date: Sept 2018 Page No: 14 of 14 Description: HEIGHT ADJUSTABLE CREDENZA INSTALLATION DOS_110 CLOSE ACCESS PANEL...
