district
Installation Guides
Section:
HEIGHT ADJUSTABLE TABLES
Description:

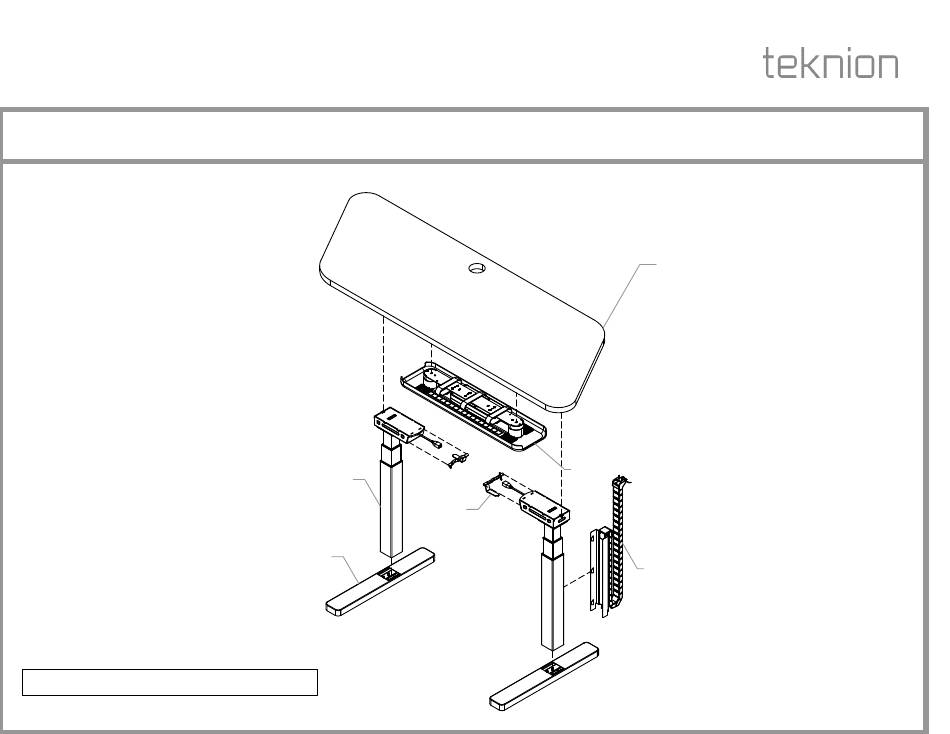

PARALLELOGRAM HA TABLE
NOTE: Refer to COM_151b for Cable Management (YEYS).
Parallelogram Height-Adjustable Worksurface (WBP),
Parallelogram Freestanding Table Mechanism for District Power Spine (YSB)
B1
D1
C1
B2
Date:
Sept 2021
DIS_759
A
F
Page No:
1 of 14
Rev. No: 0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teknion district WBP
Summary of Contents for Teknion district WBP
- Page 1 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 1 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 Rev. No: 0 Parallelogram Height-Adjustable Worksurface (WBP), Parallelogram Freestanding Table Mechanism for District Power Spine (YSB) NOTE: Refer to COM_151b for Cable Management (YEYS).
- Page 2 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 2 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 Rev. No: 0 Part and Product Identification C -Cable Organizer with Felt Cover hiSpace2 E - Kaidi Hardware Kit for hiSpace2 (N09-9975) x1 (X05-0548) x1 E1 - #8 x 5/8"...
- Page 3 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 3 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 ATTACH LEGS TO WORKSURFACE SECURE LEGS - 1 NOTE: Worksurface upside down STEP 1: Attach Legs to Worksurface by lining up with holes as shown. STEP 2: Push Legs towards the outer side of the Worksurface.
- Page 4 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 4 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 SECURE LEGS - 2 SECURE LEGS - 3 STEP 3: Install Cam Handles into Brackets, turning towards Leg to lock. STEP 4: Insert Pin as shown.
- Page 5 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 5 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 ATTACH FEET STEP 5: Attach Feet to Legs as shown using provided screws.
- Page 6 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 6 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 DISASSEMBLE FELT COVER NOTE: Only necessary if Cable Organizer with Felt Cover specified. NOTE: If Cable Organizer with Felt Cover is not specified go to Page 9. STEP 6: Disassemble Felt Cover as shown.
- Page 7 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 7 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 ATTACH CABLE ORGANIZER AND SWITCH. MAKE WIRE CONNECTIONS NOTE: Do not over tighten when securing to Worksurface. STEP 7: Attach the Cable Organizer and Keypad to the Worksurface. Make wire connections as shown.
- Page 8 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 8 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 REASSEMBLE FELT COVER SECURE FELT COVER STEP 8: Reattach Felt Cover. STEP 9: Rotate Screw Locks to secure.
- Page 9 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 9 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 WIRE MANAGEMENT - NO FELT COVER SPECIFIED NOTE: Do not over tighten when NOTE: Do not over tighten when securing to Worksurface. securing to Worksurface.
- Page 10 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 10 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 SECURE LOOSE WIRE NOTE: Do not over tighten when securing to Worksurface. STEP 10: Secure loose wire to the Worksurface using Cable Clamps.
- Page 11 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 11 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 FLIP OVER TABLE NOTE: Please make sure to have at least two people for this step. STEP 11: Flip over table...
- Page 12 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 12 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 ASSEMBLE VERTICAL WIRE CARRIER INSERT CABLE INTO WIRE CARRIER Cable NOTE: Only necessary if Vertical Wire Carrier specified. STEP 12: Attach Worksurface Connector and Leg Connector to the Vertical Wire Carrier STEP 13: Insert Cable into Wire Carrier.
- Page 13 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 13 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 SECURE CABLE ATTACH TO COVER ASSEMBLY STEP 14: Secure cable to the Wire Carrier using Cable Tie. STEP 15: Feed Cable into the Vertical Cover & Pad Assembly before attaching the Wire Carrier as shown and snapping in place.
- Page 14 district Installation Guides Section: HEIGHT ADJUSTABLE TABLES Date: Sept 2021 Page No: 14 of 14 Description: PARALLELOGRAM HA TABLE DIS_759 ATTACH TO LEG SECURE TO WORKSURFACE NOTE: Do not over tighten when securing to Worksurface. NOTE: Cable hidden for illustration purposes. STEP 16: Attach Cover to Leg Post of Table as shown.
