dossier
Section:
Description:
ZJNU, ZJNV, ZJNW, ZJNX, ZJNY, ZJNZ
A
D
For Customer Support please contact
product.support@teknion.com

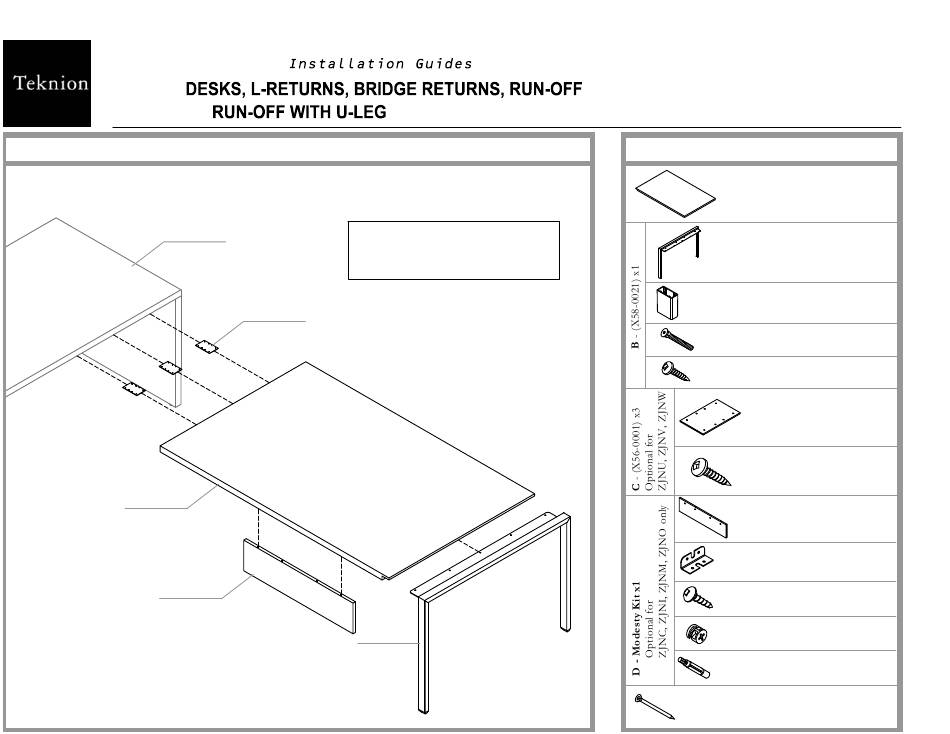

NOTE: Run-Off with U-Leg - Centered
ZJSP
Modesty, Flush Credenza Conection
(ZJNV), and Standard Desk with Partial
Modesty (ZJSP) shown as an example.
D1
B
DOS_009_G01
Page No:
Date:
Rev. No:
Part and Product Identification
A - Worksurface
(C56-0010) x1
B1 - U Leg
(X58-0019) x1
B2 - Leveler Cover
(A25-0335) x2
B3 - Leveler
(D06-4065) x2
B4 - Screw
(E57-0042) x9
C1 - Flush Plate
(D56-0006) x1
C2 - Screw
(E57-0023) x8
D1 - Modesty x1
D2 - Modesty Bracket
(D56-0004) x2
D3 - Modesty Bracket Screws
(D57-0002) x8
D4 - Cam
(B57-0002) x4
D5 - Titus Shaft
(B57-0001) x4
E - #8 X 2 1/2" Flat Head Wood Screw
(SC065) x 3
Optional for ZJNN, ZJNM, ZJNO
1 of 7
Sept 2013
0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teknion dossier
Summary of Contents for Teknion dossier
- Page 1 DOS_009_G01 Page No: 1 of 7 Date: Sept 2013 Section: Rev. No: Description: ZJNU, ZJNV, ZJNW, ZJNX, ZJNY, ZJNZ Part and Product Identification A - Worksurface (C56-0010) x1 NOTE: Run-Off with U-Leg - Centered ZJSP Modesty, Flush Credenza Conection...
- Page 2 DOS_009_G02 Page No: 2 of 7 Date: Sept 2013 Section: Description: U-LEG ASSEMBLY ATTACH U-LEG Detail View Side View STEP 1: Insert Leveler Cover into Legs and Secure with Levelers. STEP 2: Flip Worksurface up-side-down. Place U-Leg onto the cut-out of the Worksurface as...
- Page 3 DOS_009_G03 Page No: 3 of 7 Date: Sept 2013 Section: Description: SECURE U-LEG INSERT TITUS SHAFTS NOTE: Centered Modesty shown as an example. Detail View STEP 4: Please insert Titus Shafts into the bottom of the Worksurface. NOTE: Centered Modesty shown as an example.
- Page 4 DOS_009_G04 Page No: 4 of 7 Date: Sept 2013 Section: Description: SECURE MODESTY ATTACH MODESTY BRACKET NOTE: Installers to determine locations to attach Modesty Brackets. Location of Brackets should not interfere with previously installed Cams. STEP 6: Insert Cams into Modesty and rotate them to secure Modesty in place.
- Page 5 DOS_009_G05 Page No: 5 of 7 Date: Sept 2013 Section: Description: SECURE MODESTY BRACKETS ATTACH FLUSH PLATE ZJSP Desk Worksurface Side View ZJSP Desk Worksurface Underside View Detail View STEP 8: Fasten Modesty Brackets to Worksurface and Modesty as shown.
- Page 6 DOS_009_G06 Page No: 6 of 7 Date: Sept 2013 Section: Description: ATTACH RUN-OFF SECURE RUN-OFF Underside View Underside View Bottom View STEP 10: Lay Run-Off onto Flush Plate, and align with Desk as shown on bottom View. STEP 11: Fasten Run-Off with Flush Plate as shown.
- Page 7 DOS_009_G07 Page No: Page No: 7 of 7 Date: Date: Sept 2013 Section: Description: LEVEL RUN-OFF Detail View STEP 12: Use leveler to make sure the Run-Off and Desk are leveled. Adjust Levelers under Post Leg if necessary.
