Chapter 2: Jumpers and Connectors

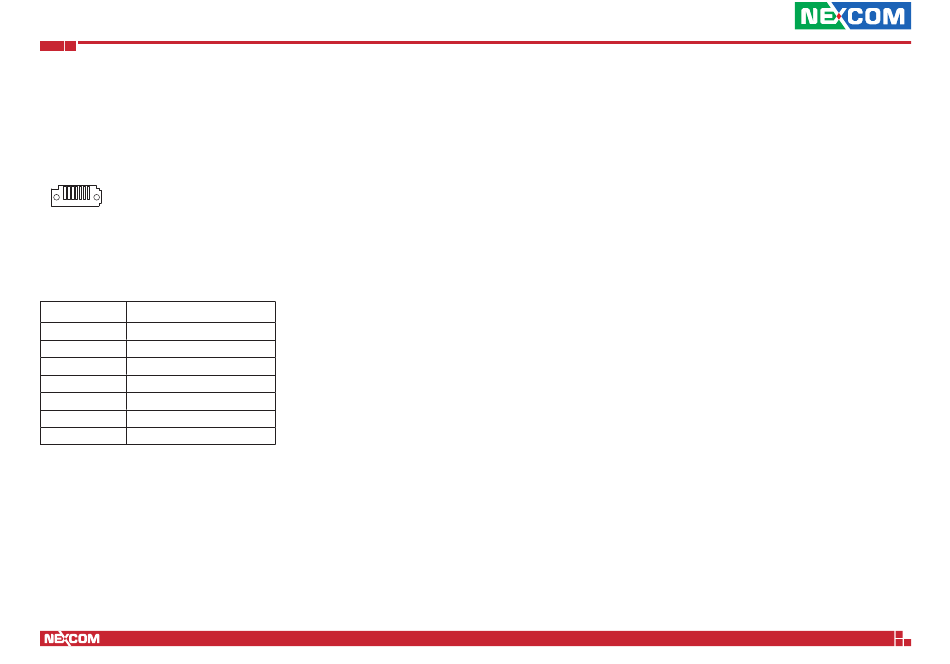

SATA Connector
Connector location: SATA1, SATA2
7
1
Pin
Definition
1
GND
2
SATA_TX_DP
3
SATA_TX_DN
4
GND
5
SATA_RX_DN
6
SATA_RX_DP
7
GND
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
23
NSA 3200 User Manual
