Chapter 2: Jumpers and Connectors

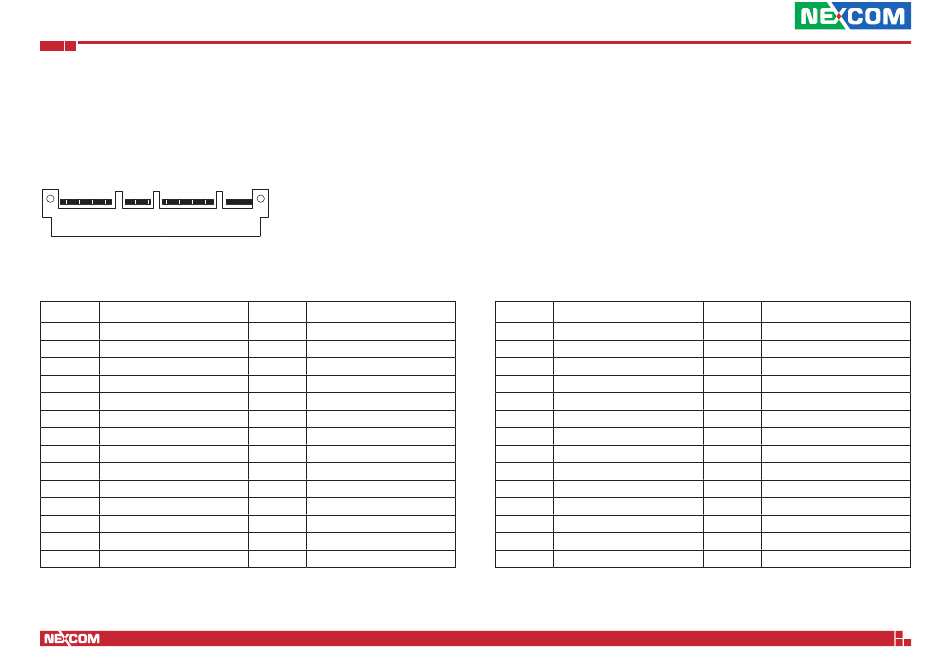

OCP Slot
Connector interface: PCIe 4.0 x8
Connector location: CN4
B70 B1 OB14 OB1
Pin Definition
OA1 TEST POINT
OA2 TEST POINT
OA3 TEST POINT
OA4 TEST POINT
OA5 TEST POINT
OA6 TEST POINT
OA7 NC
OA8 NC
OA9 NC
OA10 GND
OA11 NC
OA12 NC
OA13 GND
OA14 NC
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
OB1 TEST POINT
OB2 TEST POINT
OB3 TEST POINT
OB4 TEST POINT
OB5 TEST POINT
OB6 TEST POINT
OB7 TEST POINT
OB8 NC
OB9 NC
OB10 GND
OB11 NC
OB12 NC
OB13 GND
OB14 NC
Pin Definition
A1 GND
A2 GND
A3 GND
A4 GND
A5 GND
A6 GND
A7 SMB_CLK_OCP
A8 SMB_DAT_OCP
A9 NC
A10 GND
A11 NC
A12 NC
A13 GND
A14 CLK_PCIE_X8_OCP_N
16
Pin Definition
B1 +P12V
B2 +P12V
B3 +P12V
B4 +P12V
B5 +P12V
B6 +P12V
B7 NC
B8 NC
B9 NC
B10 PLTRST_N_BUF
B11 +P3V3_AUX
B12 FM_P3V3_AUX_EN
B13 GND
B14 NC
Continued on next page
