Chapter 2: Jumpers and Connectors

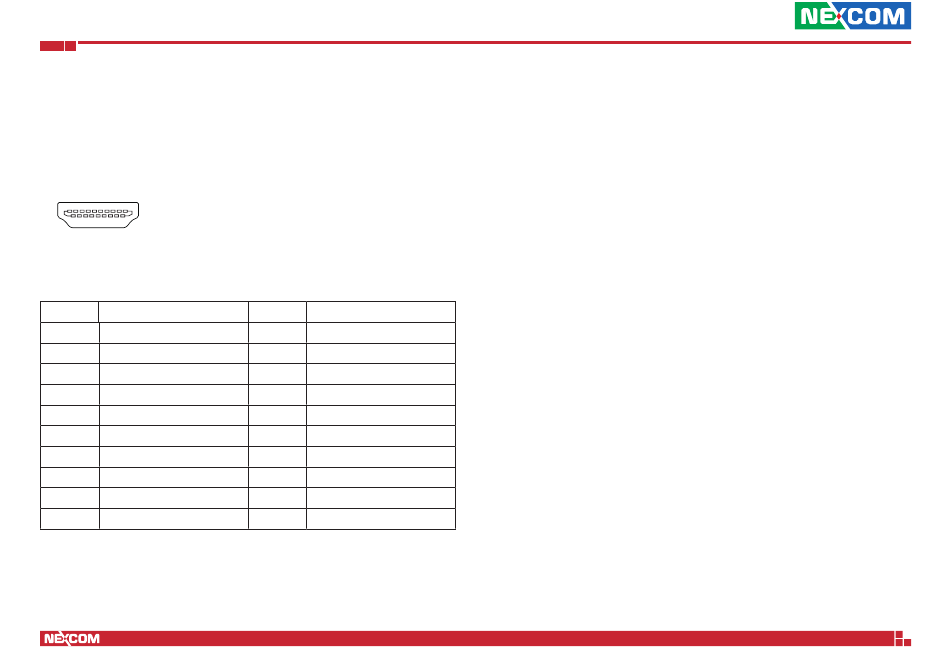

External I/O Connectors
HDMI
Connector location: CN2
19
1
18
2
Pin
Definition
1
HDMI_DATA2_P_C
2
GND
3
HDMI_DATA2_N_C
4
HDMI_DATA1_P_C
5
GND
6
HDMI_DATA1_N_C
7
HDMI_DATA0_P_C
8
GND
9
HDMI_DATA0_N_C
10
HDMI_CLK_P_C
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Type
Description
11
GND
12
HDMI_CLK_N_C
13
NC
14
NC
15
HDMI_CLK
16
HDMI_DAT
17
GND
18
HDMI_PWR_C
19
HDMI_HPD_C
8
NSA 3200 User Manual
