Chapter 2: Jumpers and Connectors

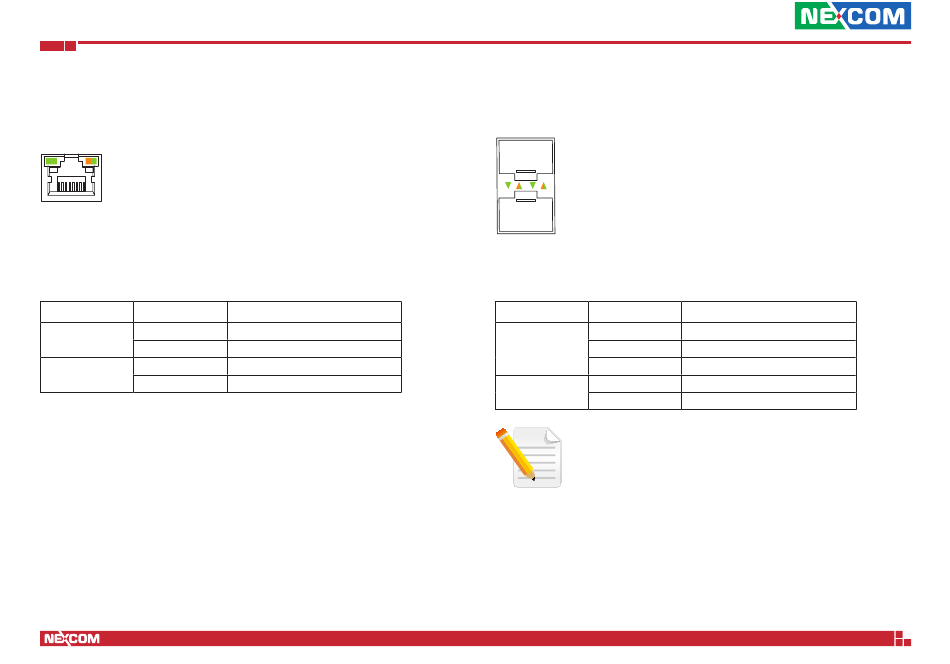

LAN Port Indicators
LED Indicator
LED Status
Off
Link/Act (Left)
Blinking green LAN is active with traffic
Orange
Speed (Right)
Green
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Description
Idel or disconnect
1GbE link
2.5GbE link
SFP+ Port Indicators
LED Indicator
LED Status
Off
Link/Act (Left)
Blinking green LAN is active with traffic
Steady green
Off
Speed (Right)
Steady green
The left two LED indicators correspond to the upper connector,
while the right two LED indicators correspond to the lower
connector.
10
Description
Inactive
LAN is connected
1GbE link
10GbE link
NSA 3200 User Manual
