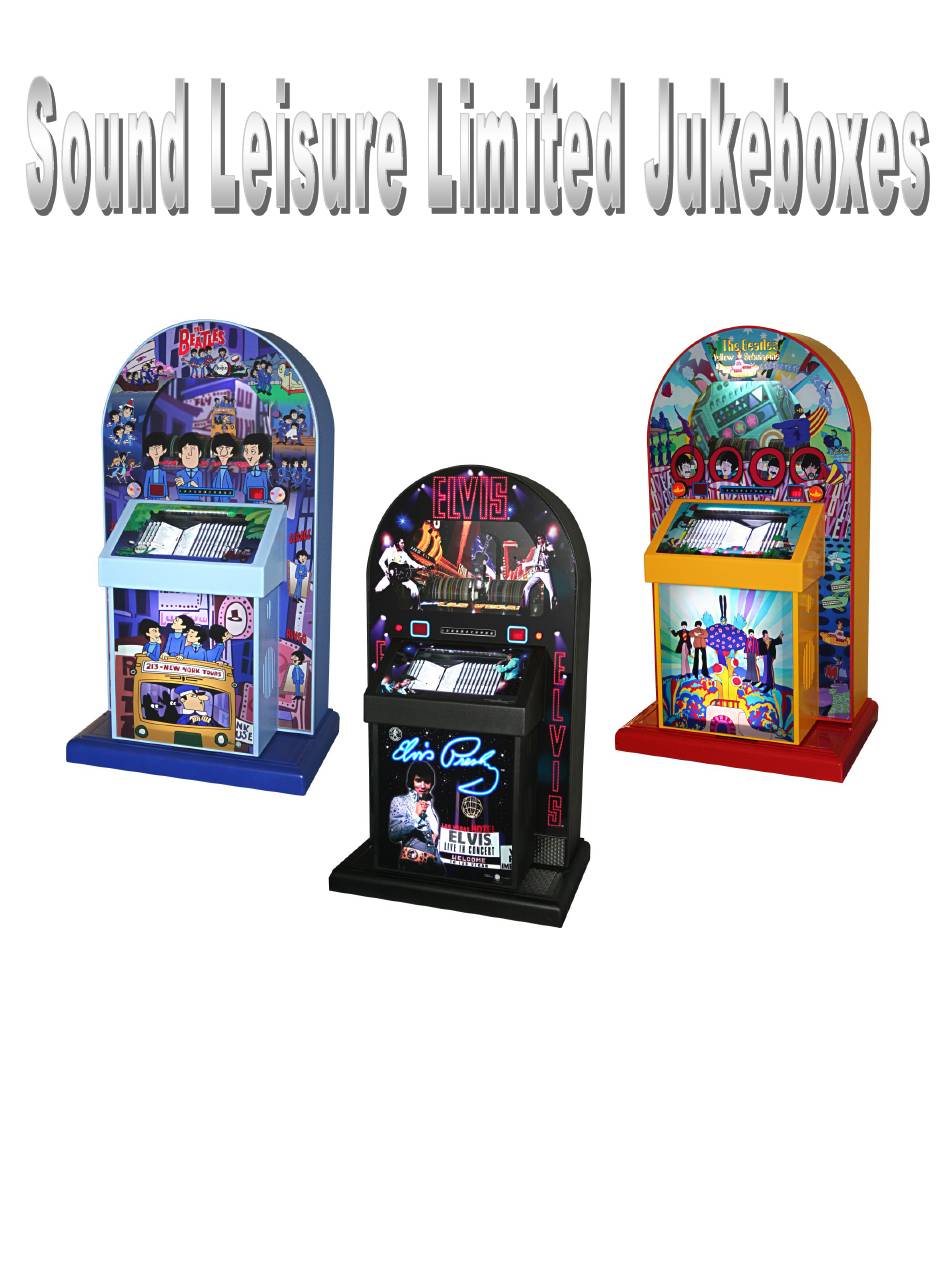

- Page 1 Distributed by: Innovative Concepts in Entertainment, Inc. 10123 Main Street, Clarence, NY 14031 Service: 1 (716) 759 - 0360 Fax: 1 (716) 759 - 0884 E-MAIL:service@icegame.com WEBSITE:www.icegame.com...
-
Page 4: Important Instructions
SET UP INSTRUCTIONS-NOSTALGIA JUKEBOX. IMPORTANT INSTRUCTIONS: Before powering up the jukebox please follow the instructions below or you will damage your jukebox. Step 1: Unscr ew player mechanism r esilient mount wing nuts so player sits fr eely on only feed back spr ings. Wing Nuts Wing Nuts Step 2: Remove hor izontal tr ansit bar by r emoving end cap scr ews. - Page 5 Step 4: Remove locking bar securing the title rack assembly by unscrewing the two end screws. Remove these Step 5: Plug the jukebox into a grounded AC power outlet and turn the jukebox on. Step 6: Open the jukebox by using the correct key located on left side of the jukebox. Step 7: Flip transit/operate switch operate position.
-
Page 6: Compact Disc Care
Installing Compact Discs *** WARNING *** Do not attempt to move the CD gripper tower by hand, touch or bend the gripper bow. These maneuvers will seriously damage the player mechanism. The player mechanism is designed to play only commercial CD’s. CDROM recordable discs must not be installed onto this system. - Page 7 Inserting title cards. Open the jukebox door and locate the rear of title card mechanism box. It is located on the door itself. Find the cable down from the mechanism and disconnect it from the harness. At the center of the mechanism is a thumb screw.
-
Page 8: Installation Options
Installation Options A note about installing external speakers: The optimum load impedance is 4 ohms and should be regarded as a minimum value. The following diagrams depict various parallel and serial combinations of 8 ohm speakers and the resulting load impedance. Incorrect im- pedance will damage your jukebox and void all warranties. -
Page 9: Using The Keyboard
Congratulations, your jukebox is now setup and ready to be used! Jukebox Controls There are two different ways to select music from the jukebox. You can use the keyboard on the jukebox or the remote control. There is a handy holder to place the remote control when not in use. It is located in the back of the jukebox. -
Page 10: Using The Remote Control
Using the Remote Control When selecting with remote control, aim the remote at the small square on the LEFT side, half way down box and under the title section. This is where the remote sensor eye is located. Select the three digit disc number by using the 0-9 keys. -
Page 11: Service Diagrams
SERVICE DIAGRAMS Pre-amplifier...
