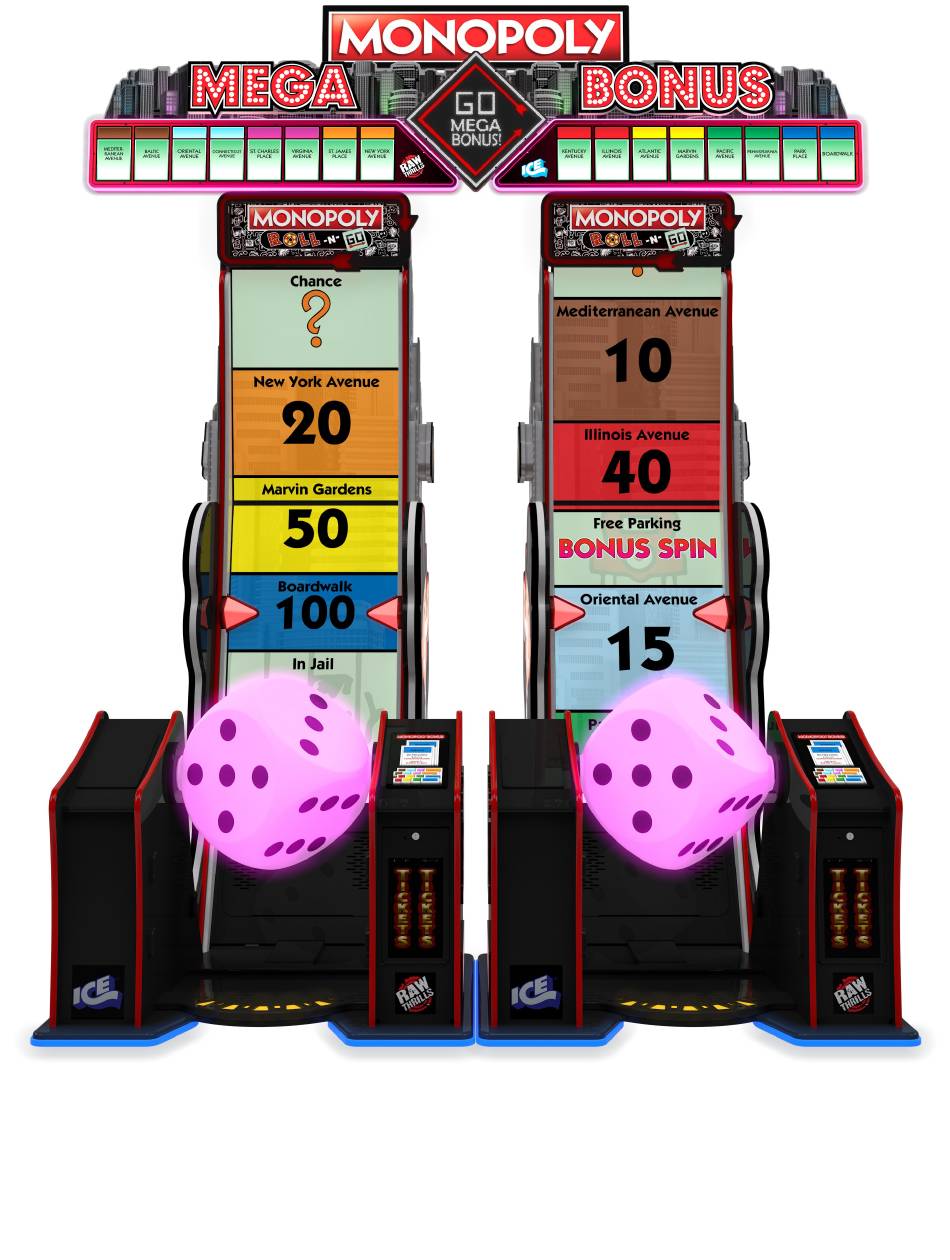

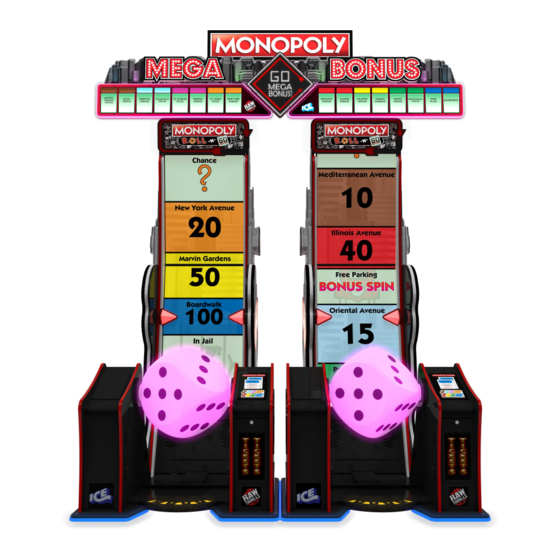

- Page 1 Monopoly Roll -N- Go Marquee Two Cabinet Assembly Guide Innovative Concepts in Entertainment 10123 Main Street Clarence, NY 14031 (716) 759 0360 Service Department...
- Page 2 What is included with your Marquee for A Two Cabinet Install Network switch, AC adaptor and 2 network cables. Another network cable for the upper sign. You should have a total of three. AC Splitter for Network Switch adaptor. Long AC power Cable. Short extension cable.
- Page 3 Installing the Marquee on top of two games. Step 1: Position the two games leaving 1/2” between them at the front. 1/2” Step 2: Unlock the back cover from the mount. This mount has the electronics in it. Facing the back of the game, the cabinet to the right will have the mount that contains all the electronics.
- Page 4 Step 3: Secure the cabinet mounts to the top of the cabinets. Use four AA6220 bolts and AA6070 washers. Make sure the mount with the electronics are on top of the cabinet on the left looking at the front of the game (right if from the back!).
- Page 5 Step 5: Secure it to the mount using two AA6212 bolts and two AA6281 washers. Step 6: Slide the left upper assembly over and onto the mount as shown. Then secure using two AA6281 bolts and two AA6212 washers.
- Page 6 Step 7: At each side of the center display are the mounting inserts. They are shown within the circles. They insert into slots in each of the top signs. One of those slots are shown. Insert the center display into the two slots. Step 8: Secure the display using two AA6281 bolts and AA6212 washers.
- Page 7 Step 9: Connect one end of a network cable to the marquee electronic box. Then connect the other end to the top connector (port B) center display.
- Page 8 Step 10: Locate the left and right connectors coming out of the marquee electronics box. They are labeled as if you were standing in front of the game. FROM THE BACK OF THE GAME, plug the left harness directly into the RIGHT side panel (the same with the electronics). Labeled as if you were in front of the game! Step 11: Then use the extension cable to connect the right harness to the left sign.
- Page 9 Step 12: Connect the 6 pin power harness to the display board. Step 13: Slide the sign onto the poles.
- Page 10 Step 14: Connect the 3 pin power harness to the upper sign. Step 15: Carefully wire tie all wires and neatly tuck them inside this channel. Secure the wire channel using two AA6177 screws and 2 AA6031 washers.
- Page 11 Step 16: Plug the long AC cord in to the side of the cabinet. Make sure switch is set to on (1). Step 17: Plug in the USB cable and DVI to display port cable into the marquee electronics box.
- Page 12 Step 18: Route the USB and DVI cables inside the cabinet through the top. They will be con- nected to the bottom of the cabinet at the PC. Step 19: Connect the display port connector (DVI to display port cable) to the video card’s dis- play port connection (NOT MOTHERBOARD!).
- Page 13 Step 20: Unplug one of the AC connections at the bottom of the game and next to the power module. Then plug the AC Y-splitter into where you unplugged the AC connector. You should now have a AC outlet to plug the network switch power adaptor into. Step 21: Plug the AC power adaptor for the network switch into the AC outlet you just added.
- Page 14 Step 22: Open the operator panel at the bottom of the cabinet. Press the program button to enter the main menu. Navigate to the system settings of each game. On the left game set mega marquee master to on and then set machine ID to 1. On the right game set Mega marquee master to off and set machine ID to 2.
- Page 15 MY DISPLAY IS UPSIDE DOWN!! Open the operator panel at the bottom of the cabinet. Press the program button to enter the main menu. Navigate to the system settings of each game. On the left machine navigate to the system settings and increase the value of the mega marquee LED angle.
