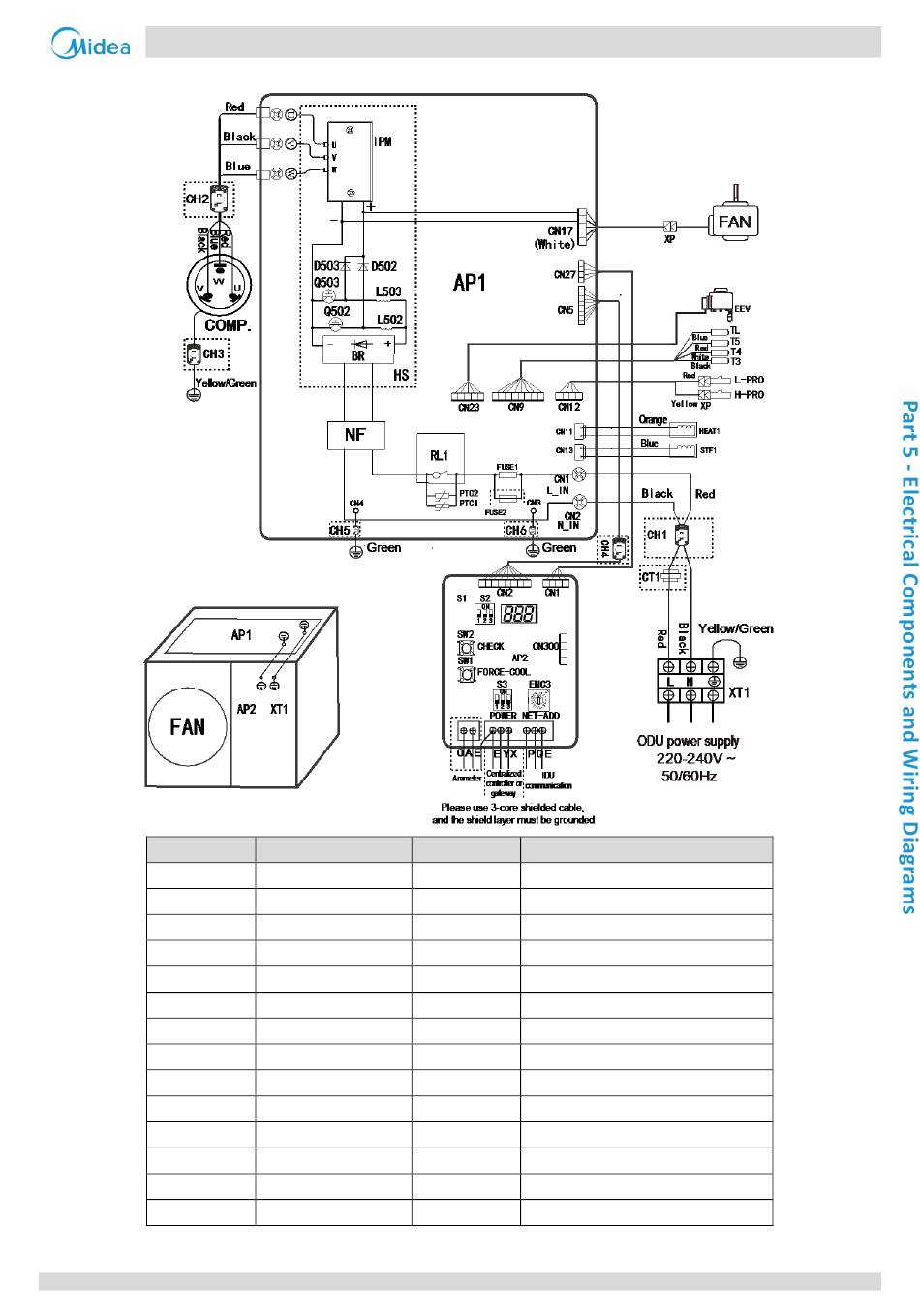

Figure 5-3.2: 100/120 model wiring diagram
Component code
BR
CH1-CH6
COMP.
CT1
D502,D503
EEV
FAN
FUSE1-FUSE2
HEAT1
HS
H-PRO
L-PRO
L502,L503
NF
Description
Component code
Rectifier bridge stacking
Magnetic ring
Compressor
AC current transformer
Fast-recover diode
Electronic expansion valve
DC fan
Fuse
Crankcase heater
Radiator
High pressure switch
Low pressure switch
Q502,Q503
PFC inductor
Filter assembly
Mini C Series VRF 50/60Hz
Description
RL1
STF1
Four-way valve
T3
Outdoor heat exchanger temperature sensor
T4
Outdoor ambient temperature sensor
T5
Discharge temperature sensor
T6
T6 dedicated line group
TL
Refrigerant radiator temperature sensor
AP1
Main control board
AP2
Spot check board
XT1
3-slot power supply terminal
XP
Connecting terminal
IPM
Inverter module
Relay
IGBT
45
