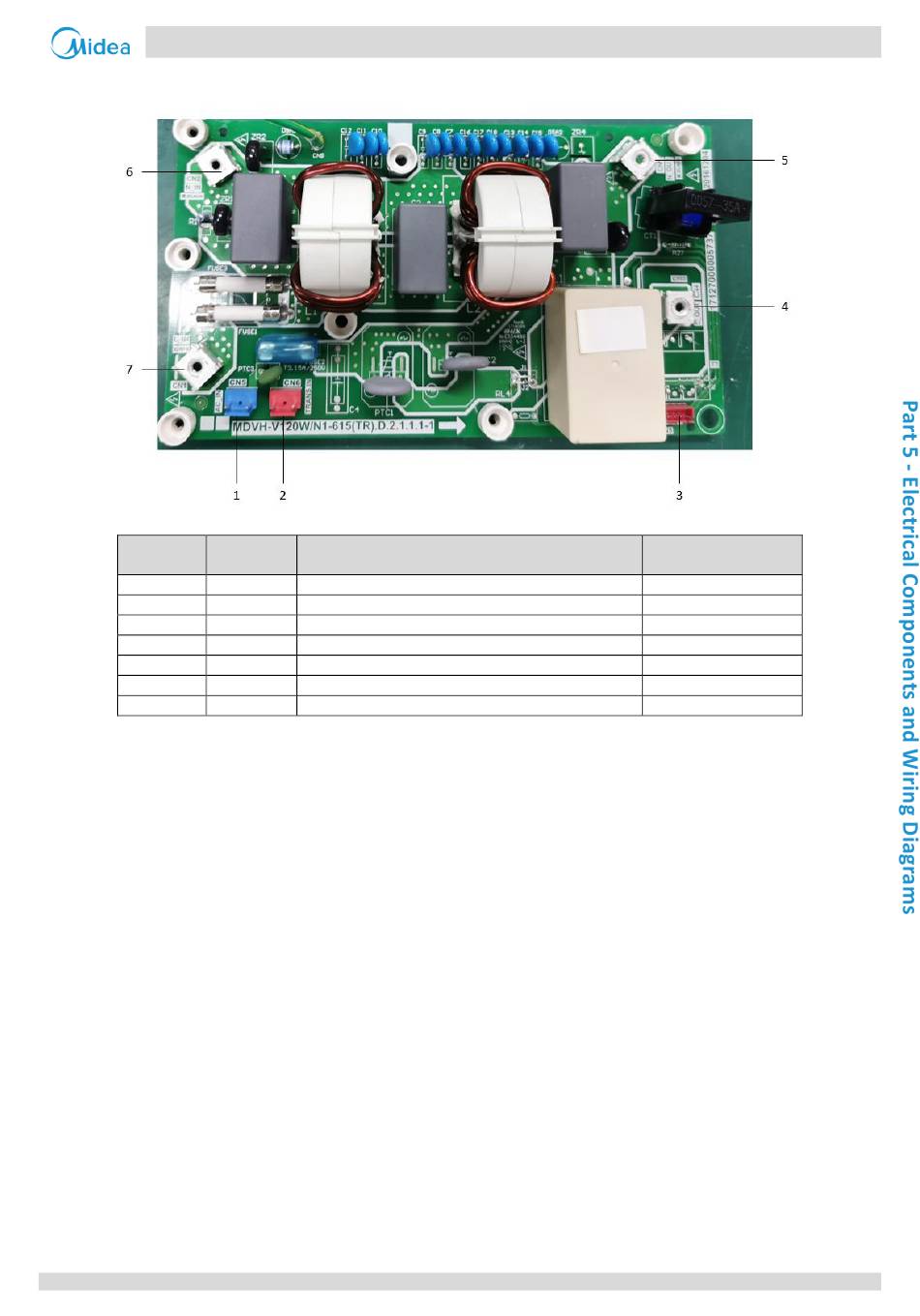

Figure 5-1.5: 140/160 model outdoor unit filter board Ports
Table 5-1.4: 140/160 model filter board ports
Label in
Figure 5-1.5
1
2
3
4
5
6
7
Port code
CN5 AC Power Output
CN6 Reserved
CN8 Relay control/ current sampling output port
CN4 AC Power Output
CN3 AC Power Output
CN2 AC Power Input
CN1 AC Power Input
Mini C Series VRF 50/60Hz
Content Port voltage
AC 220V
/
DC 12V/AC 0-10.4V
AC 220V
AC 220V
AC 220V
AC 220V
