Summary of Contents for Midea MIS26
Page 1

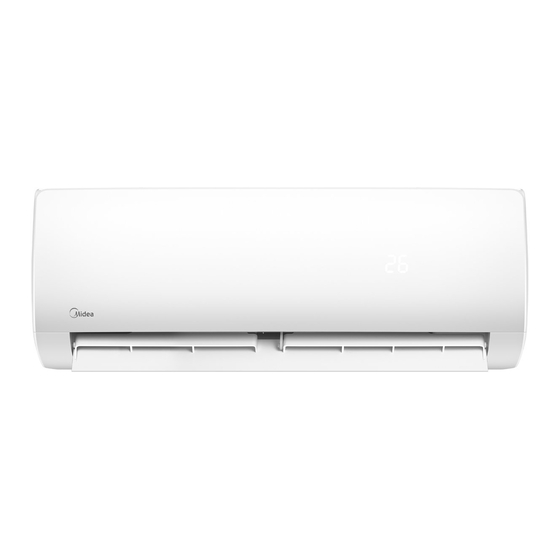

OWNER’S MANUAL FOR MODELS MIS26, MIS35, MIS50, MIS70 & MIS80 PROUDLY DISTRIBUTED BY PLEASE READ THIS MANUAL 48a Radford Road Inside you will find many helpful hints on RESERVOIR VIC 3073 how to use and maintain your air conditioner properly. Just a little...
CONTENTS Safety Precautions & Warning Caution NAMES OF PARTS Indoor unit Outdoor unit Display window OPERATING INSTRUCTIONS Operating temperatures Manual operation Airflow directional control How the air conditioner works Special functions CARE & MAINTAINENCE Care & Maintainence Cleaning the unit Cleaning the air filter and air freshening filter Preparation for extended non-operation Pre-season inspection...
CONGRATULATIONS ON THE PURCHASE OF YOUR MIDEA MISSION SERIES INVERTER AIR SAFETY PRECAUTIONS CONDITIONER ..THANK YOU. DISPOSAL: Do not dispose of this product as To prevent injury to the user or other people and unsorted municipal waste. Collection of such waste also property damage, the following instructions separately for special treatment is necessary.
NAMES OF PARTS Never activate any switches with • wet hands as it may cause an electric shock. Never use the device for any other • purpose than the intended use. Never place objects on the unit. Do not expose plants or animals •...
DISPLAY WINDOW Digital display: Displays the temperature settings when the • air conditioner is operational. Displays the room temperature in FAN mode. • Displays the self-diagnostic codes. • Displays for three seconds when Timer • ON or when Swing, Turbo or Silence feature is activated.
Manual Operation (Continued) Open and lift the front panel up to an angle until it remains fixed with a clicking sound. 2) One press of the manual control switch will lead to the forced AUTO operation. If pressed twice within five seconds, the unit will operate under forced COOL operation.
How the Air Conditioner Works. DRYING OPERATION The temperature is regulated while dehumidifying by The unit repeating turning on and off the cooling operation or fan only. The fan speed is set to LOW. HEATING OPERATION This air conditioner operates on the heat-pump principle, absorbing heat from air outdoors and transferring that heat to the indoor unit.
WIFI Control Function (optional) Special functions If optional WIFI Kit has been installed, the unit can be Louver Angle Memory Function: controlled either by the supplied remote controller or by Smart phone. Within the scope of louver angle safety, the horizontal louver angle is memorised and will return to (Instructions are supplied with optional WIFI kit) the position last selected by the user.
Repairs to this equipment requires skilled personnel competent in the use of flammable refrigerants. Please Contact MIDEA CUSTOMER & TECH SUPPORT on 1300 726 002 for further advice. Do not use any chemically treated cloth or duster to clean the unit.
NOTE: If any problems are not resolved, please contact either your dealer or a local dealer or MIDEA CUSTOMER & TECH SUPPORT on 1300 726 002 for further advice. Be sure to inform them details of the malfunctions and unit model number..
Troubleshooting Guide Before you call for or request servicing, troubleshoot a problem by performing following checks: SYMPTOM Diagnostic -- Is there a power failure? -- Has a switch been turned off, a circuit breaker tripped or a fuse blown? -- Is the timer operating? Unit will not operate -- Are the batteries used in the remote controller exhausted?
Operation of Remote Control Buttons. DOWN BUTTON Press this button to decrease the desired SET temperature of the Air Conditioner or to decrease the Timer setting hours. 3. FAN BUTTON Used to select the fan speed in four steps: HIGH→MED→ LOW→ AUTO NOTE: Hold down this button for at least 2 •...
Page 13
SLEEP function This function maintains the most comfortable temperature while sleeping and saves energy as well. This function is available in COOL, HEAT and AUTO modes only. When selected, the set temperature will increase (in cooling mode) or decrease (in heating mode) by 1 per hour for the first 2 hours.
Page 14
7. ECO BUTTON Used to enter the energy efficient mode. When in cooling mode and after pressing this button the remote controller will adjust the temperature automatically to 24 C and a fan speed of Auto to save energy (but only if the previous set temperature was less than 24 If the user selected set temperature is between C and 30...
INDICATORS ON THE REMOTE DISPLAY LCD Displayed when TIMER ON time is set. Displayed when TIMER OFF time is set. Shows set temperature or room temperature. Also shows time under TIMER setting. Indicates that the air conditioner is operating in Follow me mode Displayed when in Fresh operation (not enabled for Australian models) Displayed when in Self clean operation.
Auto operation When unit is first installed and connected to power the OPERATION indicator on the display panel of the indoor unit starts flashing. 1. Press the ON/OFF button to start the air conditioner. 2. Press the MODE button to select Auto. 3.
Timer operation To Set the Auto - On Time Pressing the SET button is used to set the auto-on/off time of the unit. 1. Press the SET button , the Timer on indicator " " displays and flashes, the last Auto-on setting time and the signal "h"...
Page 18
TIMER OFF (Auto off operation) TIMER ON The TIMER OFF feature is useful when you want (Auto on operation) the unit to turn off automatically, maybe after you go to bed. The air conditioner will automatically stop The TIMER ON feature is useful when you want operating at the set time.
Page 19
COMBINED TIMER TIMER ON → TIMER OFF (Setting both ON and OFF timers simultaneously) (Off→ Start→ Stop operation) This feature is useful when you want to start the air TIMER OFF → TIMER ON conditioner before you wake up and stop it after you (On→...
Make sure the remote controller is always used within a distance of 8 meters from the air conditioner indoor unit, pointing it towards the receiver. Reception is confirmed by a beep. CAUTION: The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit.
