Mini C Series VRF 50/60Hz
3 Wiring Diagrams

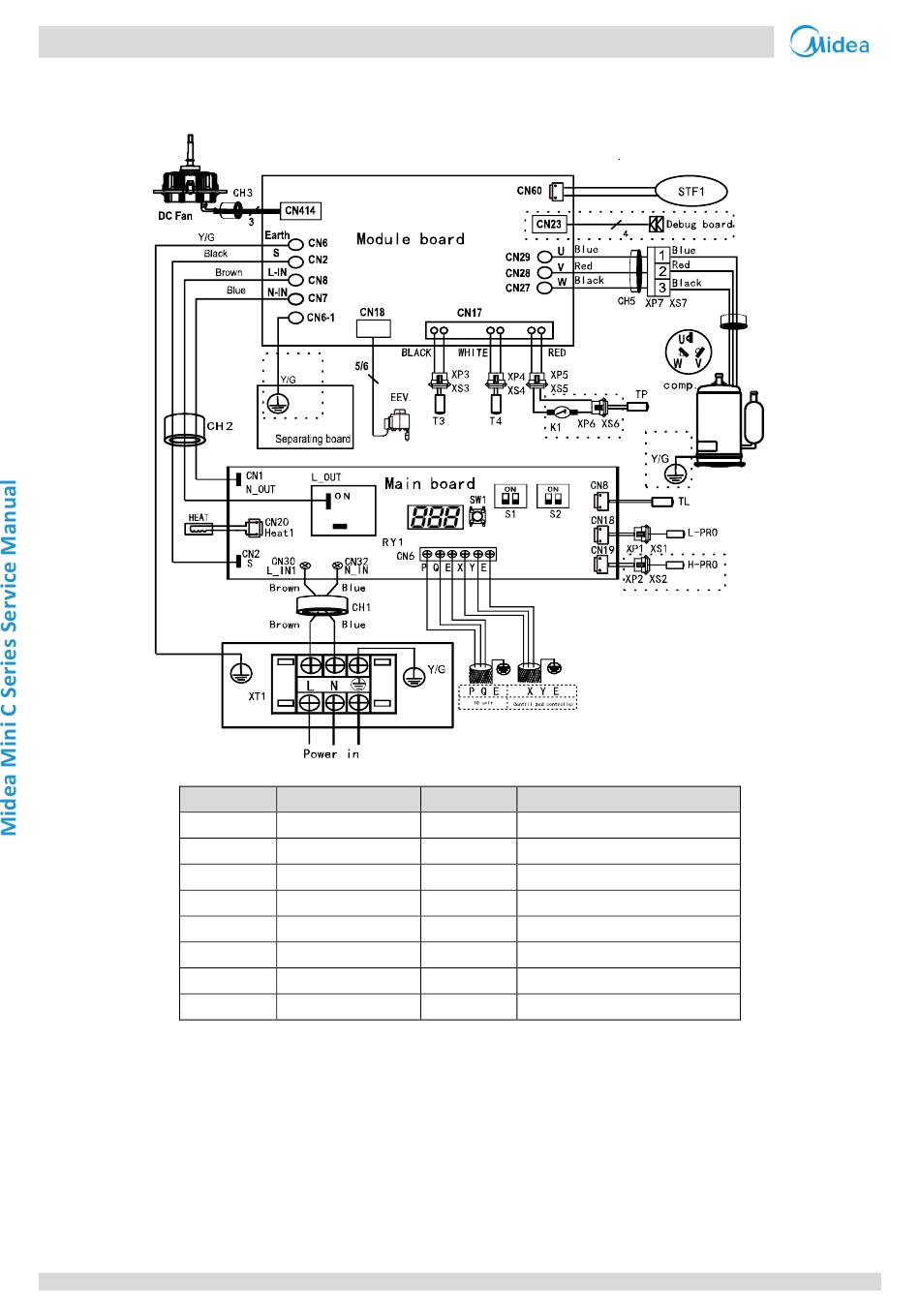

Figure 5-3.1: 80 model wiring diagram
Component code
CH1-CH5
COMP.
EEV
DCFAN
HEAT
H-PRO
L-PRP
XP1-XP7/XS1-XS7
44
Description
Component code
Magnetic ring
RY1
Compressor
STF1
Electronic expansion valve
K1
DC fan
TP
Crankcase heater
TL
High pressure on/off switch
XT1
Low pressure on/off switch
T3
Terminal block
T4
Description
Relay
Four-way valve
Compressor top thermostat
Outdoor discharge temperature sensor
Refrigerant radiator temperature sensor
3-slot power supply terminal
Outdoor heat exchanger temperature sensor
Outdoor ambient temperature sensor
