Capital B
600
Code / Codice
Power consumption
Consumo di energia
Power supply
Alimentazione elettrica
Inrush current / Corrente di spunto
Power factor / Fattore di potenza
Electrical class / Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Aerodynamic surface
Superficie massima esposta al vento

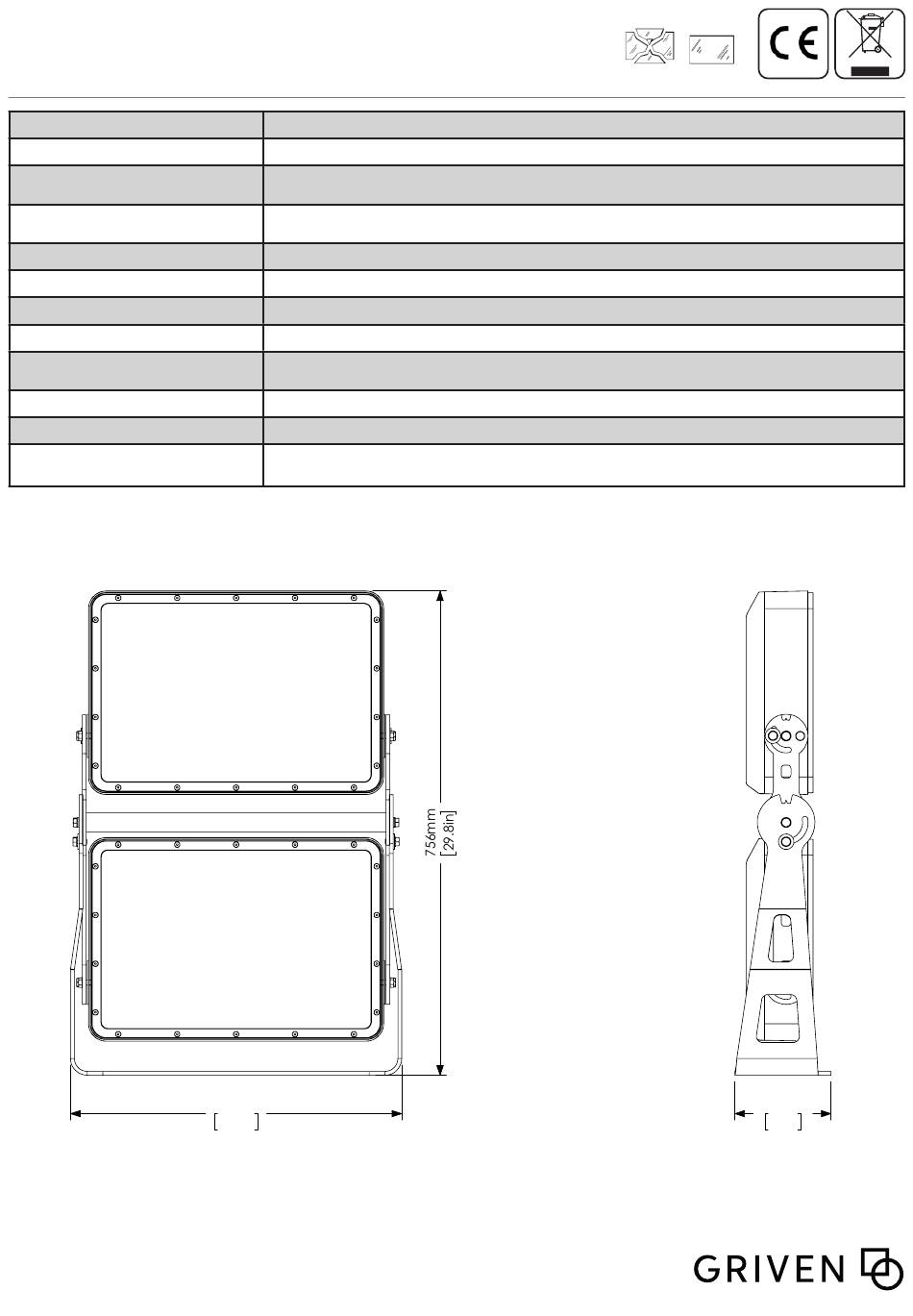

Dimensions - Dimensioni
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
551176 Rev.5.0
Date: 19/02/2025
2A @ 230V / 440W max. total (1A @ 230V / 220W each bank)
517mm
20.4in
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
Capital 600 B
AL5032
100-277VAC 50-60Hz
140A@240VAC / 25°C (70A @240VAC each bank)
cos.φ= 0.97
32.8 Kg / 72.3 lb
-40°C to +50°C ( -40°F to 122°F )
Front = 0.39 m2
Side = 0.11 m2
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
I
IP67
IK09
150mm
5.9in
page 1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven Capital B 600
Summary of Contents for Griven Capital B 600
- Page 1 Dimensions - Dimensioni 517mm 150mm 20.4in 5.9in page 1 of 6 © Copyright Griven 2020 - GRIVEN S.r.l. is continuously Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 developing and improving all its products. E-mail: sales@griven.com 46042 Castel Goffredo We reserve the right to change specifications without Web: www.griven.com...
- Page 2 Important notices - Avvisi importanti - This product must be installed in accordance with applicable national and local - Questo prodotto deve essere installato secondo le normative locali, da personale electrical and construction codes by a person familiar with the construction and specializzato.
-
Page 3: Installation - Installazione
Installation - Installazione 35° 175mm 175mm 6.9in 6.9in Vertical beam-aiming - Orientamento both screws +100° -30° both screws +100° -30° both screws A=size 13 (ISO) Wrench, Tightening torque 24.1 Nm A=Chiave inglese 13 (ISO), Coppia di serraggio 24 Nm page 3 of 6 Capital 600 B... - Page 4 Connection - Connessione “F” type cable (ON-OFF) Cavo tipo “F” (ON-OFF) BLU= N (Neutro) BLUE= N (Neutral) POWER IN GIALLO/VERDE=Terra YELLOW/GREEN=GND MAINS / RETE: 220-240VAC 50/60Hz ( Capital 100) MARRONE=L (Fase) 100-277VAC 50/60Hz (Capital 200&300) BROWN=L (Live) BLU= N (Neutro) BLUE= N (Neutral) POWER IN GIALLO/VERDE=Terra...
- Page 5 “1” type cable (0-10V) Cavo tipo “1” (0-10V) “D” type cable ( Power in, DALI In, DALI Out ) Cavo tipo “D” ( Power in, DALI In, DALI Out ) ROSSO= DALI bus + RED= DALI bus + ROSSO= DATA + RED= DATA + NERO= DALI bus - BIANCO=COMUNE...
- Page 6 Note: Allowed operation only between sunset and sunrise Nota: Accensione dell’apparecchio ammessa soltanto tra gli orari di tramonto e alba page 6 of 6 Capital 600 B...
