Capital
600
Code
Power consumption
Nominal current
Power supply
Inrush current
Power factor
Electrical class
Weight
Operating temperature
IP rating
IK rating

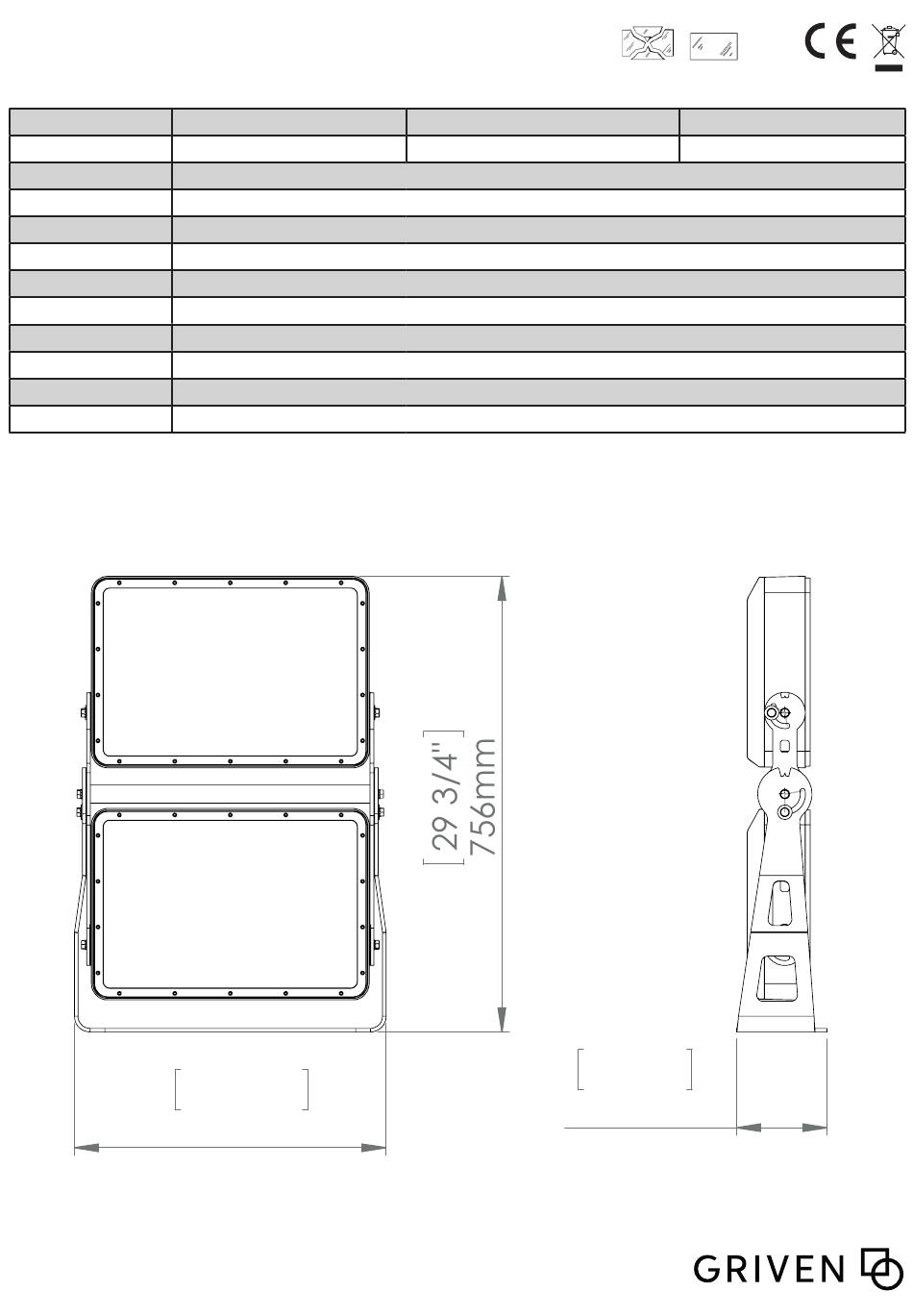

Dimensions
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev.1.0
Date: 31/08/2020

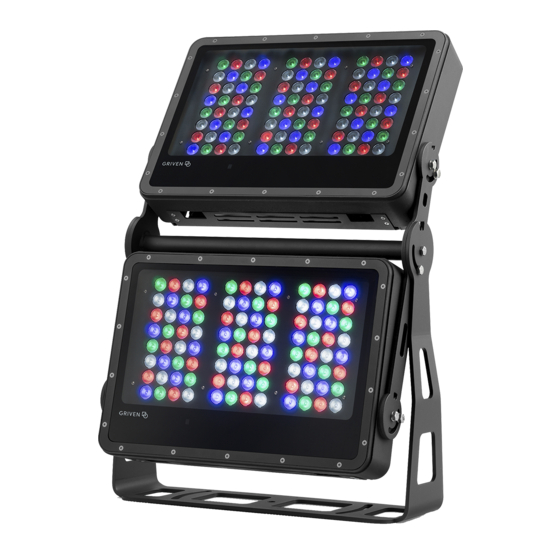

Capital 600
AL5020 - AL5022 (PE)
20 3/8"
517mm
Tel. +39.0376.779483
Fax +39.0376.779682
E-mail: sales@griven.com
Web: www.griven.com
Capital 600 US
AL5024 (US) - AL5025 ( US PE)
2x 256 W(RN), 2x 285 W (W) 2x 266 (MC)
2x 1.6 A (RN), 2x 1.29 A(W), 2x1.2(MC)
100-277VAC 50-60Hz
2x 70 A@240VAC, cold start
cos.φ= 0.96 (RN&W), 0.94(US)
I
32.8 Kg
-40°C to +50°C ( -40°F to 122°F )
IP67
IK09
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
Capital 600 MC
AL5021 - AL5023 (PE)
5 7/8"
150mm
551090
page 1 of 12
Advertisement
Table of Contents
Related Manuals for Griven Capital 600 Series
Summary of Contents for Griven Capital 600 Series
- Page 1 Dimensions 5 7/8" 20 3/8" 150mm 517mm page 1 of 12 © Copyright Griven 2020 - GRIVEN S.r.l. is continuously Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 developing and improving all its products. Fax +39.0376.779682 46042 Castel Goffredo We reserve the right to change specifications without E-mail: sales@griven.com...
-
Page 2: Important Notices
Important notices - This product must be installed in accordance with the local applicable electrical and construction co- des by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. - Do not stare at the operating light source. -
Page 3: Installation
Installation 1/2" 12,50mm 6 7/8" 6 7/8" 175mm 175mm Vertical beam-aiming both screws +100° -30° both screws +100° -30° both screws A=size 13 (ISO) Wrench page 3 of 12 Capital - Rev. 1.0... - Page 4 Connection “S” type cable ( Power in, DMX In, DMX Out ) RED= DMX + WHITE=COMMON BLACK= DMX - DMX IN/OUT RED= DMX + WHITE=COMMON BLACK= DMX - Blue= N (Neutral) Yellow/Green=GND MAINS: 100-277VAC 50/60Hz Brown=L (Live) RED= DMX + WHITE=COMMON BLACK= DMX - DMX IN/OUT...
- Page 5 “C” type cable ( Monocable + connectors ) POWER + DMX IN POWER + DMX IN POWER + DMX OUT POWER + DMX OUT A=DMX- B=DMX+ C=common 3=GND POWER + DMX IN POWER + DMX IN POWER + DMX OUT POWER + DMX OUT “M”...
-
Page 6: Dmx Mode
IR Remote Control operations The fi xture must be confi gured only by using AL1321 IR remote control ( sold separately ) or via any DMX-RDM compatible controller. FLASH 5’ inactivity = Automatic LOGIN LOGOUT = OK FLASH FLASH Enter the corresponding “IR” value DMX MODE SETTING ( see the DMX chart, Mode Column to select the desired DMX mode... - Page 7 0-100% Dimmer 0-255 • Manufacturer: it displays the name of the manufacturer 0-100% Red 0-255 (Griven). 0-100% Red fine tuning 0-255 • Model description: it displays the fixture’s model. • Software version description: it displays the current version 0-100% Green 0-255 of the firmware.
- Page 8 DALI supported commands Command # Description Up (Fade rate) Down (Fade rate) Step Up ( Increment arc power level ) Step Down ( Decrement arc power level ) Recall MAX level Recall MIN level Step down and off ( Decrement arc power level if at min level turn down ) 16...31 Go to scene 0...15 Reset ( DALI factory default parameters )
-
Page 9: Configuration Examples
Configuration examples DMX Chain con guration - S type cable DMX OUT DMX IN DMX OUT DMX OUT DMX OUT DMX IN DMX OUT DMX IN DMX IN DMX IN DMX OUT DMX OUT DMX OUT DMX OUT DMX OUT DMX IN DMX IN DMX IN... -
Page 10: Operating Modes
Operating modes DMX Mode Addr. 005 Addr. 013 Addr. 017 Addr. 029 Addr. 001 Addr. 009 Addr. 021 Addr. 025 Addr. ### DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT 120Ω... - Page 11 page 11 of 12 Capital - Rev. 1.0...
- Page 12 page 12 of 12 Capital - Rev. 1.0...
