Functional Overview
If you attempt to tune out ofthe specified frequency range (4.5 MHz
to 1080 MHz), no change to tuning will occur (if using the keypad,
an out-of-range message will be displayed momentarily). If you tune
to a frequency that does not correspond to a channel in the active
channel table, the channel readout is replaced with '???' and the
secondary measurement is not displayed.
Editing Methods
The next few pages describe the general editing methods used to
change instrument parameters.
Selecting an item. In a list of items, the selected item is highlighted by
an outline cursor (see Figure 2-5). This is the item that will be acted
upon when a function key (such as delete) is pressed, Turning the
knob will allow you to select different items, and scroll the list as
CHAN TABLES MENU (41 this)
Outline cursor ACTIVE TABLE: CATV STD _
oat TBL # NAME TYPE
indicates selected 1 CATV_STD FIXED
channel table. This ie CATV-500 FIXED]
table will be acted 3 B-CAST FIXED
upon when any of 4 CATV-HRC FIXED
the five function 5 CATV-IRC FIXED
keys are pressed. 6 CHIN-DK — FIXED
7 EUR-BG CUSTOM
; MAKE | EDIT [| CLONE | DEL DEL Function keys—PT active | CHANS | TABLE ALL

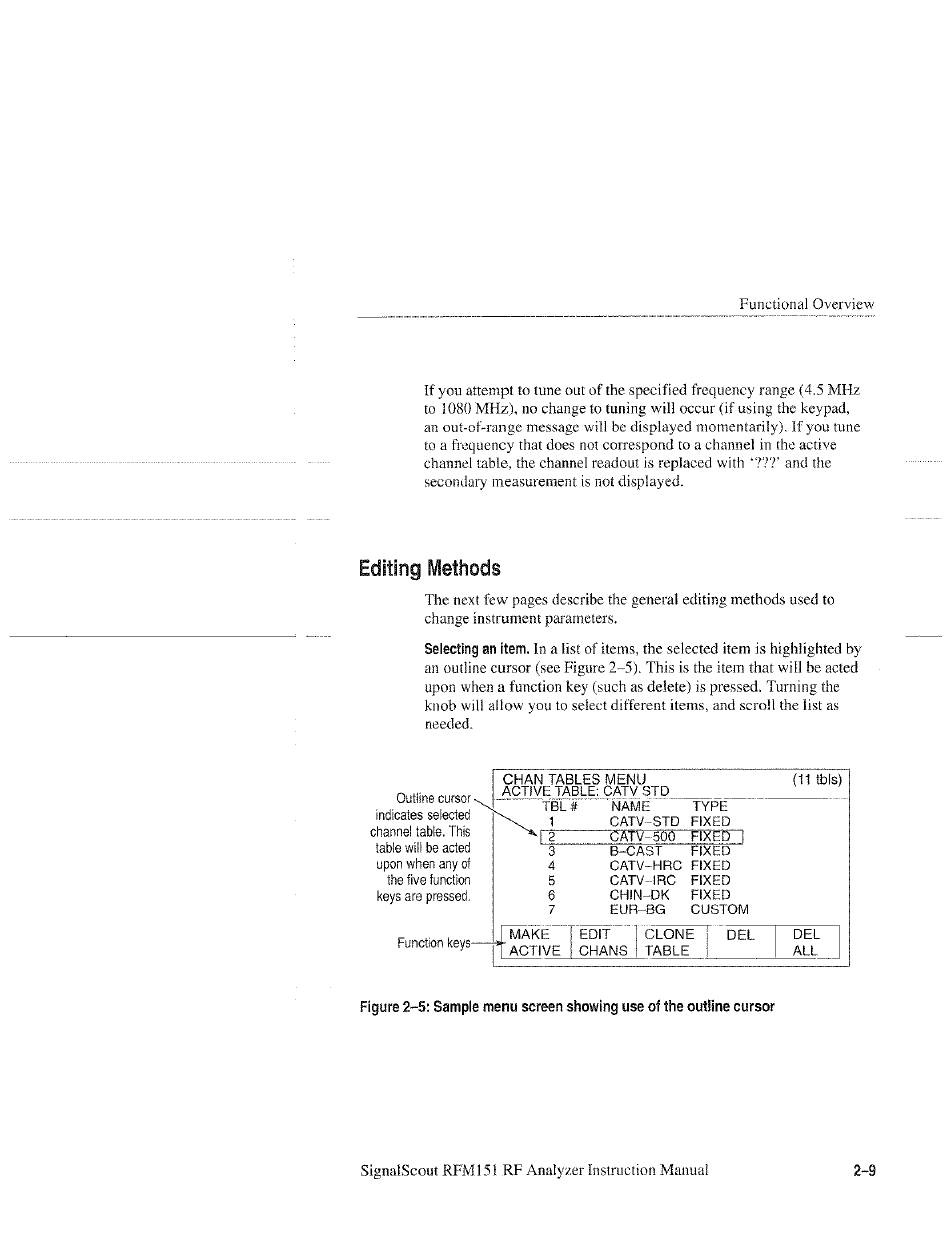

Figure 2-5: Sample menu screen showing use of the outline cursor
