Replacement Procedures
RF connector 7
SS EF ~

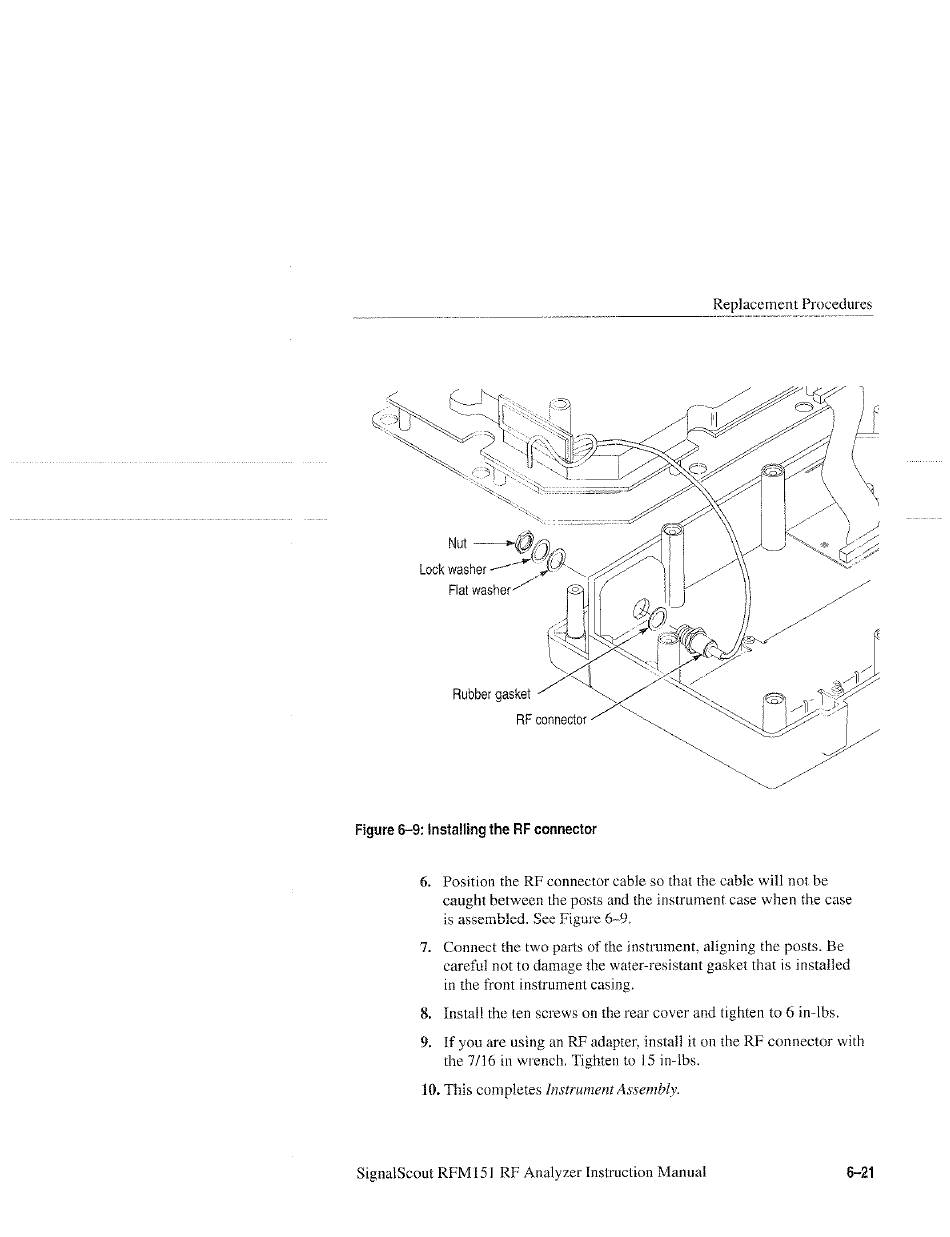

6. Position the RF connector cable so that the cable will not be
caught between the posts and the instrument case when the case
is assembled. See Figure 6-9,
7.
Connect the two parts of the instrument, aligning the posts. Be
careful not to damage the water-resistant gasket that is installed
in the front instrument casing.
8. Install the ten screws on the rear cover and tighten to 6 in-lbs.
9. If you are using an RF adapter, install it on the RF connector with
the 7/16 in wrench. Tighten to {5 in-Ibs.
10. This completes Instrument Assembly.
SignalScout RFM151 RE Analyzer Instruction Manual
6-21
