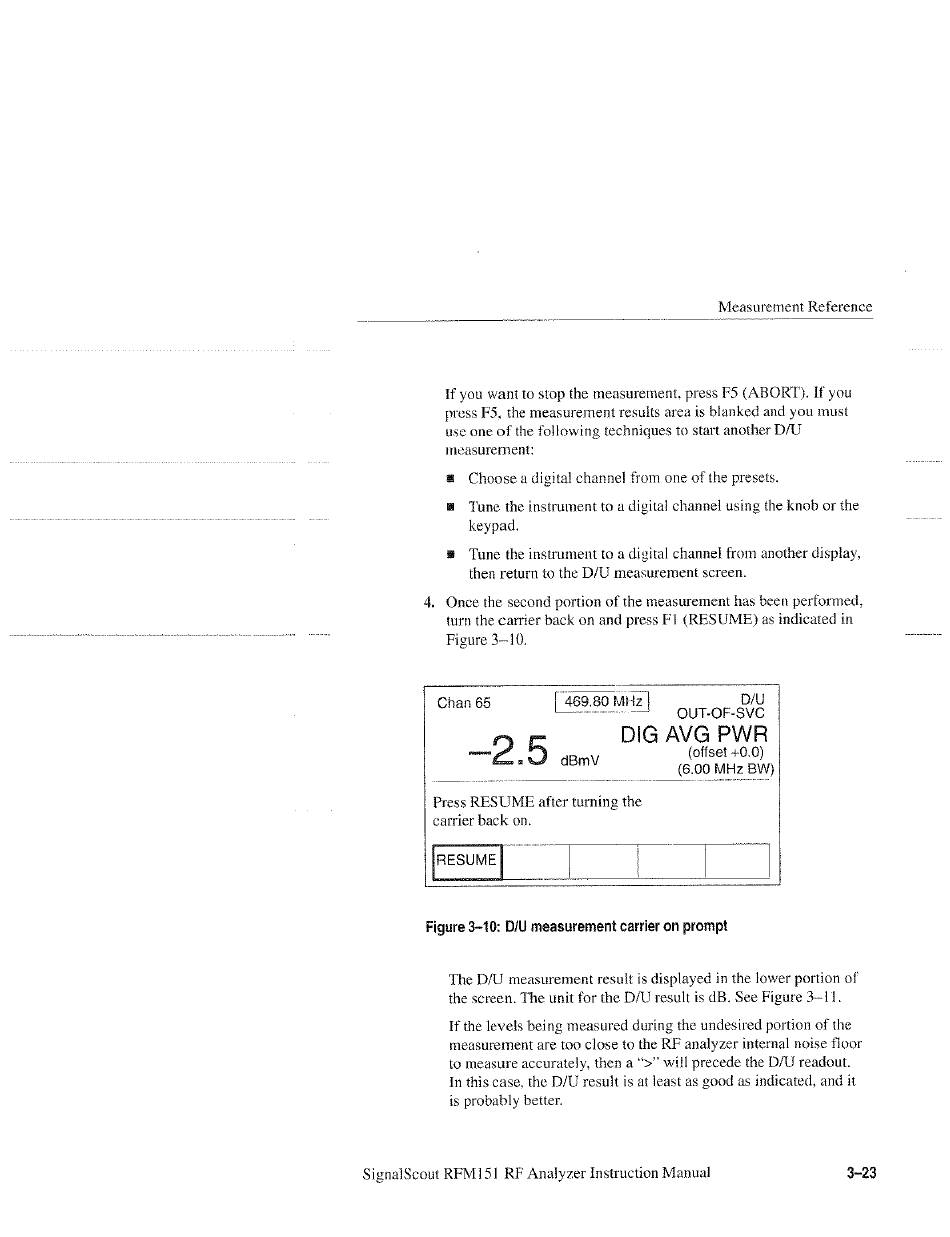

Tektronix SignalScout RFM151 Instruction Manual page 71

Measurement Reference
If you want to stop the measurement, press F5 (ABORT). If you
press FS, the measurement results area is blanked and you must
@ Choose a digital channel from one of the presets.
@ Tune the instrument to a digital channel using the knob or the
@ Tune the instrument to a digital channel from another display,
4. Once the second portion of the measurement has been performed,
turn the carrier back on and press Fl (RESUME) as indicated in
Figure 3-10.
y) 5 DIG AVG PWR
carrier back on.
Figure 3-10: D/U measurement carrier on prompt
The D/U measurement result is displayed in the lower portion of
the screen. The unit for the D/U result is dB. See Figure 3—11.
If the levels being measured during the undesired portion of the
measurement are too close to the RF analyzer internal noise floor
to measure accurately, then a ">" will precede the D/U readout.
In this case, the D/U result is at least as good as indicated, and it
SignalScout RFM151 RF Analyzer Instruction Manual 3-23
