Measurement Reference
ap [ 489.80 MHz OUT-OF-SVC
+ 2? 5 VISUAL
. dBmv (offset +0.0)
Press RESUME after turning the
carrier back on
RESUME

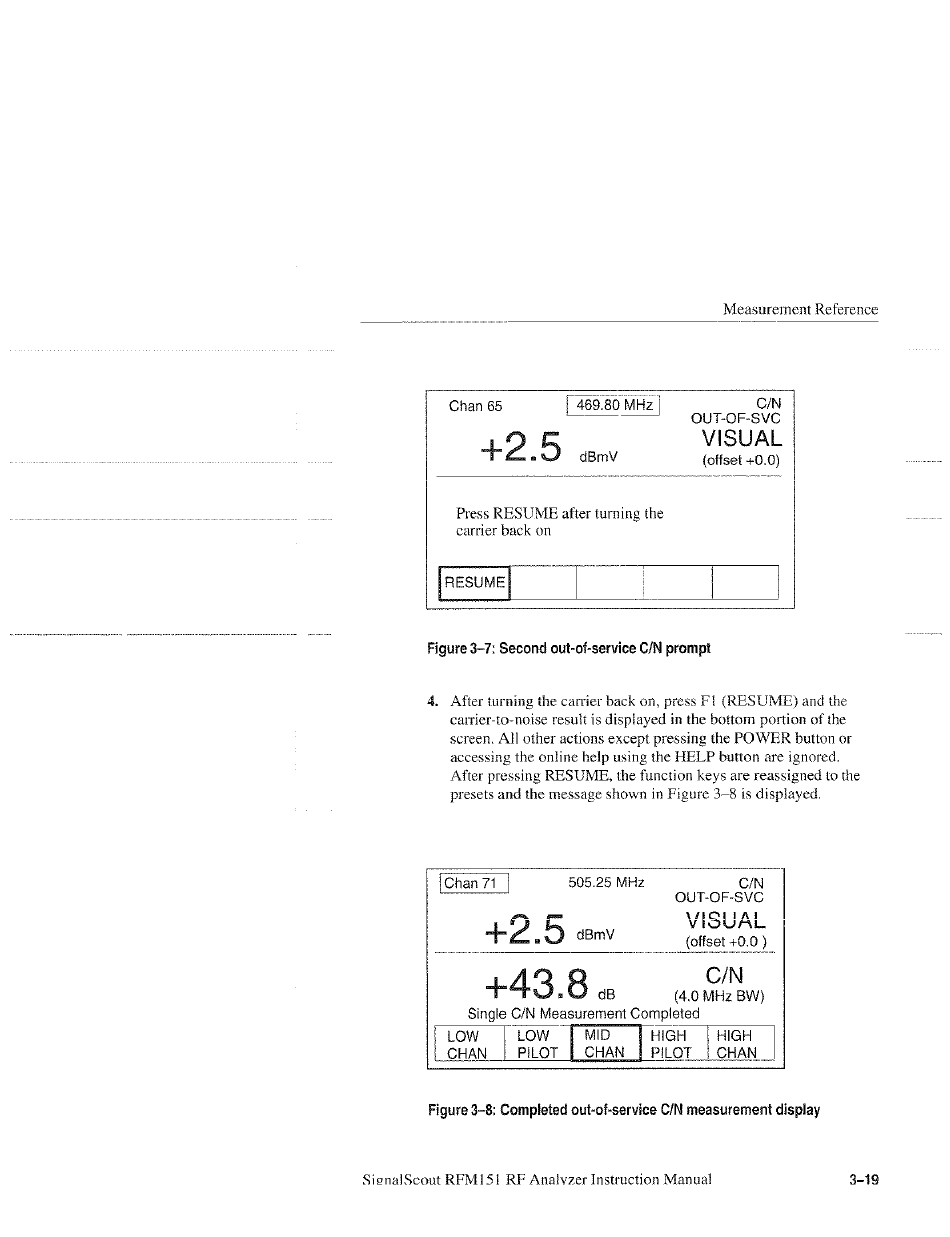

Figure 3-7: Second out-of-service C/N prompt
4. After tarning the carrier back on, press PF! (RESUME) and the
carrier-to-noise result is displayed in the bottom portion of the
screen. All other actions except pressing the POWER button or
accessing the online help using the HELP button are ignored.
After pressing RESUME, the function keys are reassigned to the
presets and the message shown in Figure 3-8 is displayed.
805.25 MHz C/N
xy VISUAI
C/N
Single C/N Measurement Completed
| Low Low [MID HIGH | HIGH
CHAN | PILOT | CHAN | PILOT | CHAN
Figure 3-8; Completed out-of-service C/N measurement display
