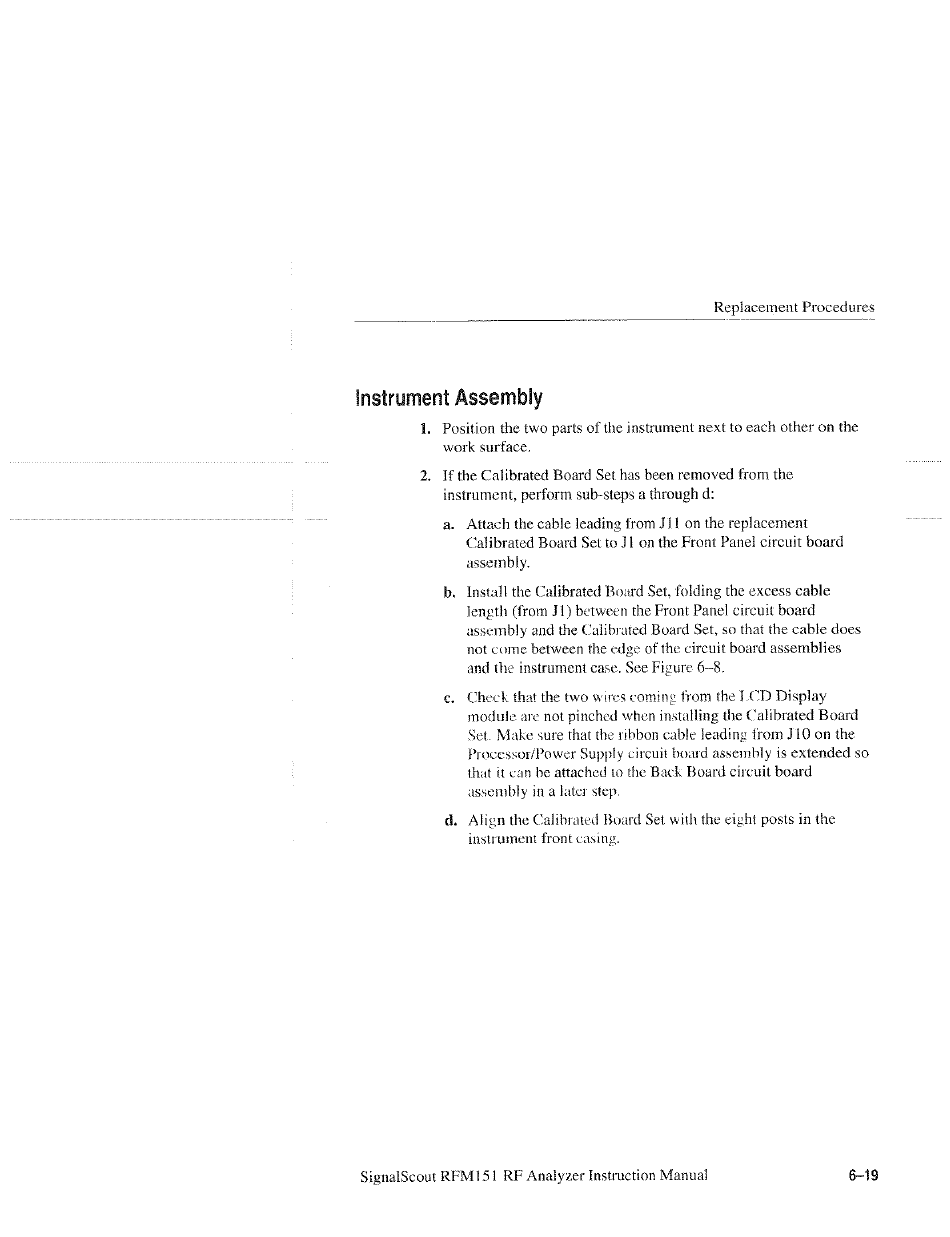

Replacement Procedures
instrument, perform sub-steps a through d:
a. Attach the cable leading from J11 on the replacement
Calibrated Board Set to JL on the Front Panel circuit board
assembly.
length (rom J1) between the Front Panel circuit board
assembly and the Calibrated Board Set, so that the cable does
not come between the edge of the circuit board assemblies
and the instrument case, See Figure 6-8.
module are not pinched when installing the Calibrated Board
Set. Make sure that the ribbon cable leading from J10 on the
Processor/Power Supply circuit board assembly is extended so
that it can be attached to the Back Board circuit board
°
d. Align the Calibrated Board Set with the eight posts in the
instrument front casing.
