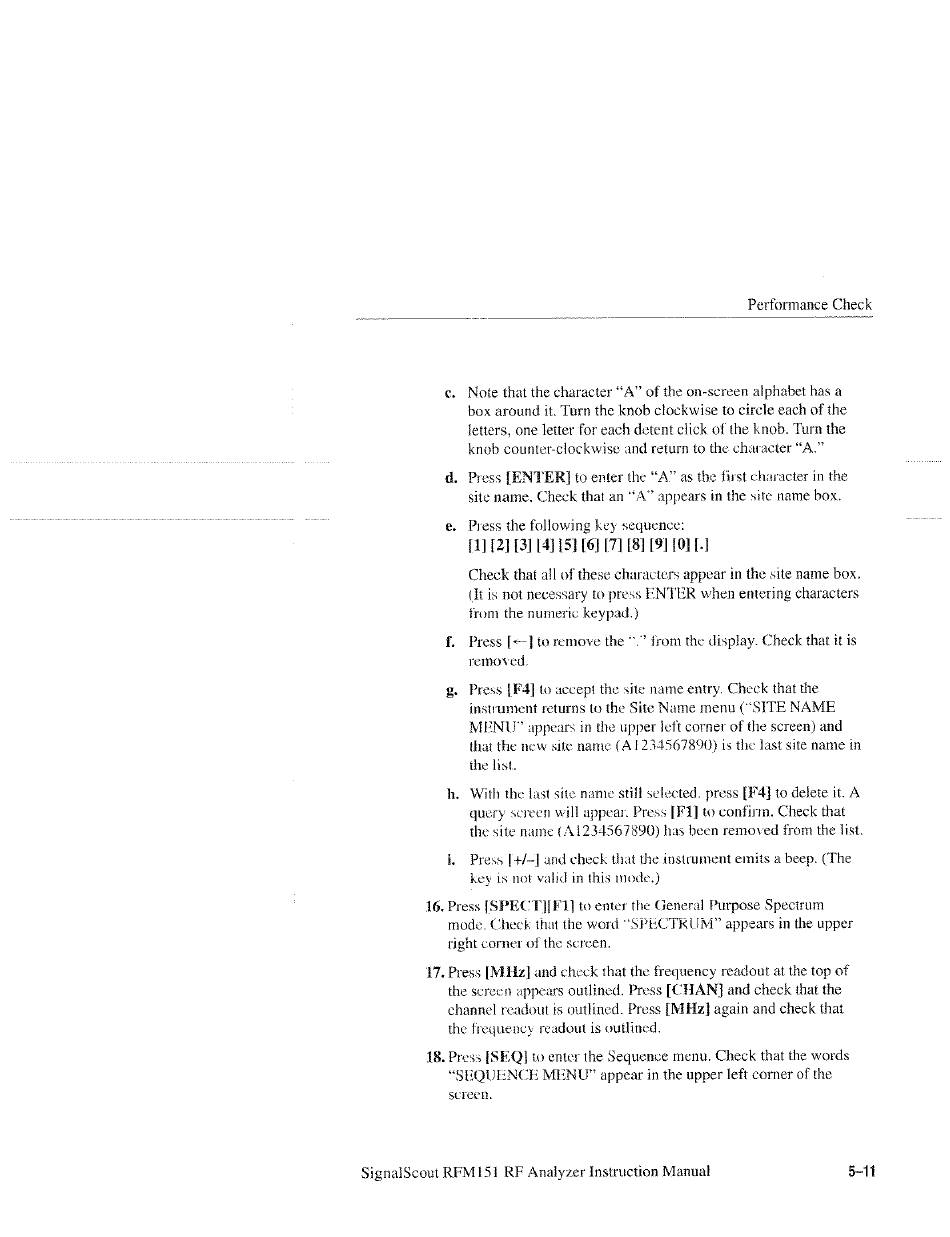

h.
knob counter-clockwise and return to the character "A."
Check that all of these characters appear in the site name box.
(tis not necessary to press ENTER when entering characters
from the numeric keypad.)
Press [<] to remove the ©." from the display. Check that it is
that the new site name (A1234567890) is the last site name in
the list.
With the last site name still selected. press [F4] to delete it. A
query screen will appear. Press [F1] to confirm. Check that
the site name (A1234567890) has been removed from the list.
Press [4/~] and check that the instrument emits a beep. (The
17. Press [MHz] and check that the frequency readout at the top of
the screen appears outlined, Press [CHAN] and check that the
channel readout is outlined. Press [MHz] again and check that
the frequency readout is outlined.
18. Press [SEQ] to enter the Sequence menu. Check that the words
"SEQUENCE MENU" appear in the upper left corner of the
screen,
SignalScout RFM1I51 RF Analyzer Instruction Manual
5-11
