1. Introduction and Product Description

The SGPAT10xx-105 connects two different types of network segments (Fiber and Copper), while injecting PoE+
power through its copper RJ-45 copper port(s) (up to two supported).
The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily
and affordably facilitates the connection between to differently cabled network segments, while also injecting
PoE+ power through the copper RJ-45 port.
PoE allows for the transmission of power over the same copper cables used to transmit data. PoE+ media
converters are Power Sourcing Equipment (PSE). The SGPAT media converter combines data received over a
fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair
cabling while complying with the IEEE802.3at PoE+ standard, which is also backwards compatible with the
IEEE802.3af PoE standard.
The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power
monitoring features. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of
Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or
copper port and propagate the failure to the end devices, preventing the media converter from isolating those
link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD
device, ensuring it is ready to go when the LPT event is corrected.

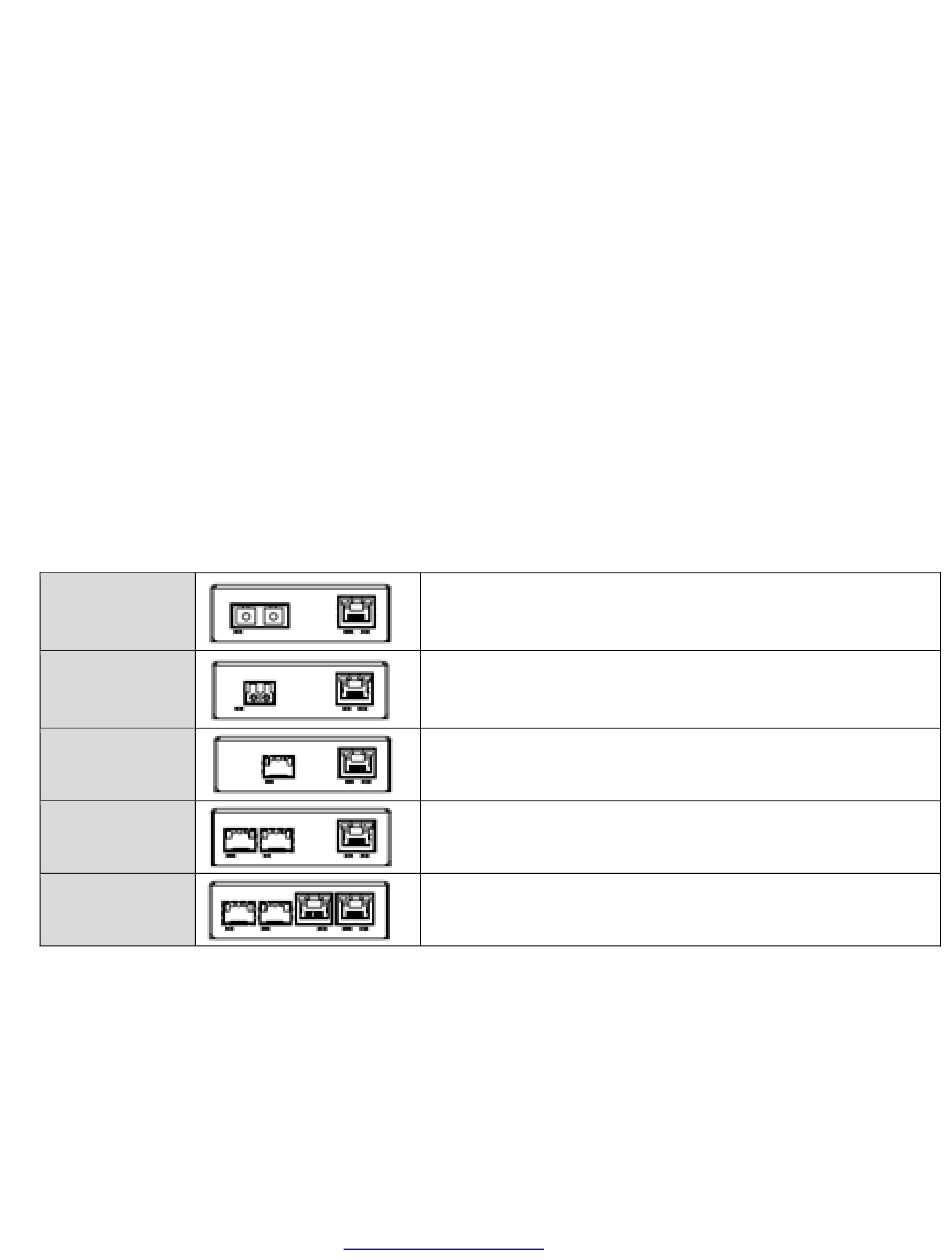

Ordering Information / Configurations
SGPAT1013-105
SGPAT1039-105
SGPAT1040-105
SGPAT1040-205
SGPAT1040-305
Power Supply Included: To order the corresponding country specific power supply, add the extension to the end
of the SKU (e.g., SGPAT1013-105-NA = North America; -LA = Latin America).
33719 Rev. D
10/100/1000Base-T PoE+ RJ-45 [100 m/328 ft.] to 1000Base-SX
850nm multimode (SC) [62.5/125um: 220m / 722 ft.]
[50/125um:550m / 1804 ft.] Link Budget: 8.5dB
10/100/1000Base-T PoE+ RJ-45 [100 m/328 ft.] to 1000Base-SX
850nm multimode (LC) [62.5/125um: 220m / 722 ft.]
[50/125um:550m / 1804 ft.] Link Budget: 8.0dB
10/100/1000Base-T PoE+ RJ-45 [100 m/328 ft.] to
100/1000Base-X Open SFP Slot
(1) 10/100/1000Base-T PoE+ RJ-45 [100 m/328 ft.] to (2)
100/1000Base-X Open SFP Slot
(2) 10/100/1000Base-T PoE+ RJ-45 [100 m/328 ft.] to (2)
100/1000Base-X Open SFP Slot
https://www.transition.com
SGPAT10xx-x05 PoE+ Converter User Guide
Page 4 of 49
